Accsense VersaLog Data Loggers User’s Manual Page 65

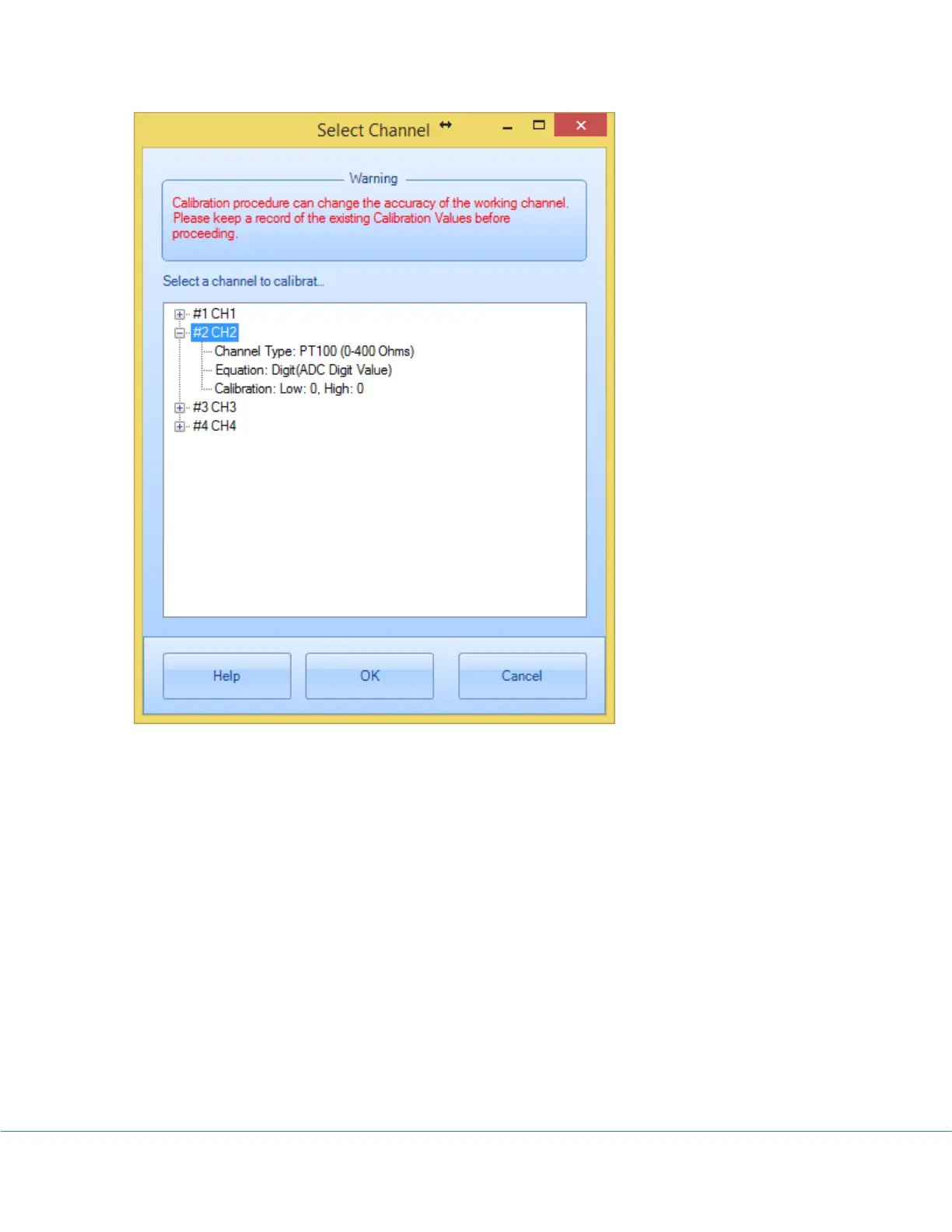

Select the channel you want to calibrate on and click OK button. The calibration dialogs appear

as follows:
