Chapter 2: Installation - Physical Setup
Current
Hall Eect Sensor Terminal
U+NCU-NCI+I-
123456
Hall Eect Sensor
V+GNDV-NCDI22DI21DI12DI11
2423222120191817
Vdc+Vdc-
Load
I/O terminal strip
Meter
Voltage, Current, Terminal Strip
1
4
3
2

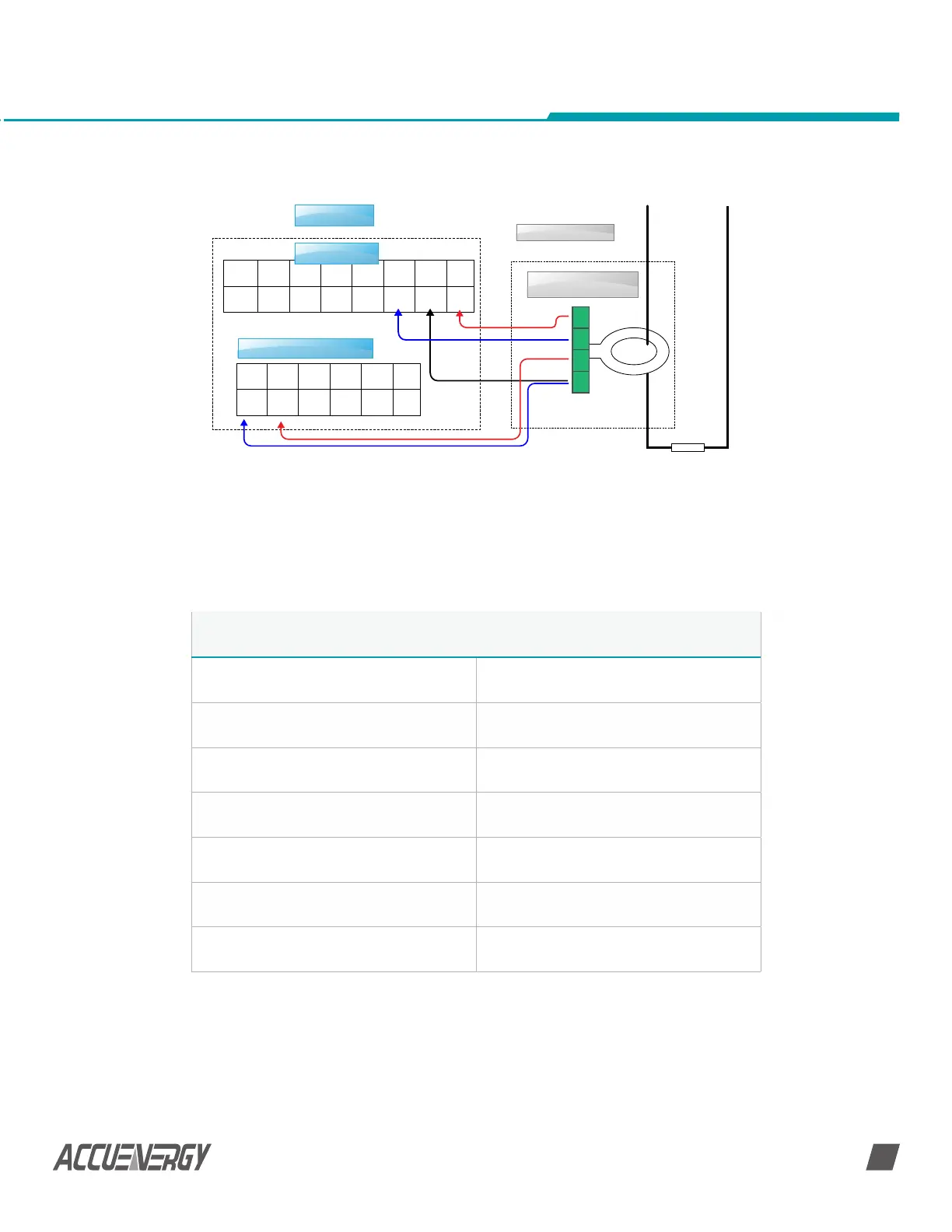

Fig 2-11 C Wiring using a Hall Effect Sensor
Fig 2-11 Current Input Wiring
Table 2-2 Accuenergy Line of Shunts/Hall Effect Sensors for Measuring Current
NOTE: For measuring higher currents or larger window size openings, please
contact Accuenergy’s Sales team.
Shunt
(Works with AcuDC 243 A1 Current Input Option)
Hall Effect Sensor
(Works with AcuDC 243 A2 Current Input Option)
Rated Input: 50A
Output: 75mV
Rated Input: 50A
Output: 4-20mA
Window Size: 21mm
Rated Input: 100A
Output: 75mV
Rated Input: 100A
Output: 4-20mA
Window Size: 21mm
Rated Input: 200A
Output: 75mV
Rated Input: 200A
Output: 4-20mA
Window Size: 21mm
Rated Input: 500A
Output: 75mV
Rated Input: 400A
Output: 4-20mA
Window Size: 40mm
Rated Input: 1000A
Output: 75mV
Rated Input: 600A
Output: 4-20mA
Window Size: 40mm
Rated Input: 1500A
Output: 75mV
Rated Input: 1000A
Output: 4-20mA
Window Size: 40mm
Rated Input: 2000A
Output: 75mV
