AcuDC 240 Series
DC Energy & Power meters
Press ‘F’ and ‘V/A’ simultaneously whiles in the metering
display mode to get to the system parameter setting mode. In
parameter setting mode, press ‘V/A’ until you get to the ‘ddEL’
screen, as shown in Fig 3-10. The screen displays ‘No’, which
means DI counter not cleared’. Press ‘F’ twice and it will show
‘YES’, which means clear Di counter , and DI counter will be
cleared to 0. After you choose ‘YES’ or ‘NO’, press ‘V/A’ to confirm
and go to the next screen.
Press ‘F’ and ‘V/A’ simultaneously whiles in the metering
display mode to get to the system parameter setting mode.
In the parameter setting mode, press ‘V/A’ until you get to the
‘bL’ screen, as shown in Fig 3-11. There are 5 levels backlight
brightness. ‘1’ is minimum light level and ‘5’ is maximum light
level. Press ‘F’ to select and press ‘V/A’ to confirm and go to the
next screen.
Press ‘F’ and ‘V/A’ simultaneously whiles in the metering
display mode to get to the system parameter setting mode. In
parameter setting mode, press ‘V/A’ until you get to the ‘dATE’
screen, as shown in Fig 3-12. Press ‘F’ to change this setting. A
digit will begin to flash and you can change the number. Press
‘F’ to increase the value of the flashing digit. Press ‘V/A’ to switch
the flashing digit. Press ‘V/A’ when on the last digit to confirm
the change; the cursor will stop flashing at this point. Press ‘V/A’
to confirm and go to the time setting screen.
Press ‘F’ and ‘V/A’ simultaneously whiles in the metering display
mode to get to the system parameter setting mode. In the
parameter setting mode, press ‘V/A’ until you get to the ‘TinE’
screen, as shown in Fig 3-13. The meter uses the 24-hour clock
system. The time shown in Fig 3-15 is 14:19:52. Press ‘F’ to change
this setting. A digit will begin to flash and you can change the
number. Press ‘F’ to increase the value of the flashing digit. Press
‘V/A’ to switch the flashing digit. Pressing ‘V/A’ when on the last
digit will confirm the change; the cursor will stop flashing at this
point. Press ‘V/A’ to confirm and go to the next screen.

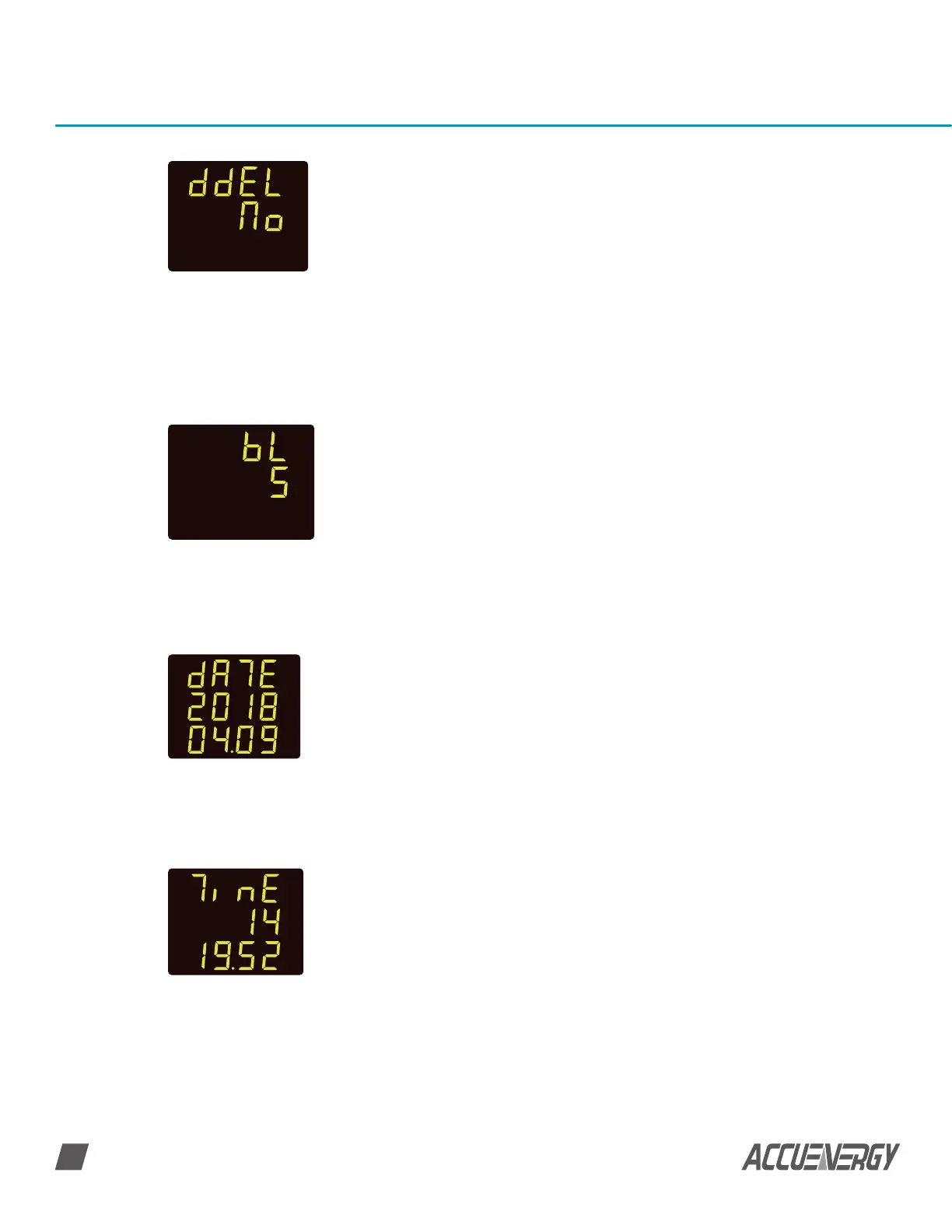

Fig 3-10 DI Counter
Reset
Fig 3-11 Backlight
Brightness Setting
Fig 3-12 Date
Adjustment
Fig 3-13 Time
Adjustment
SET
3.2.6 Set Backlight Brightness
To set the backlight brightness from the meter display mode, first get to the Setting
mode.
3.2.7 Meter Clock Setting
SET
SET
SET
To Next Page
