Chapter 2: Installation - Physical Setup
2.2.2 Mounting I/O Modules Onto Meter
If the meter is equipped with an I/O module, you need to mount the module onto meter
before installing the meter.
Installation Method
With the link pins, I/O module is linked to the meter.
1. Insert the mounting clips to the counterpart of AcuDC 240 meter, and then press the

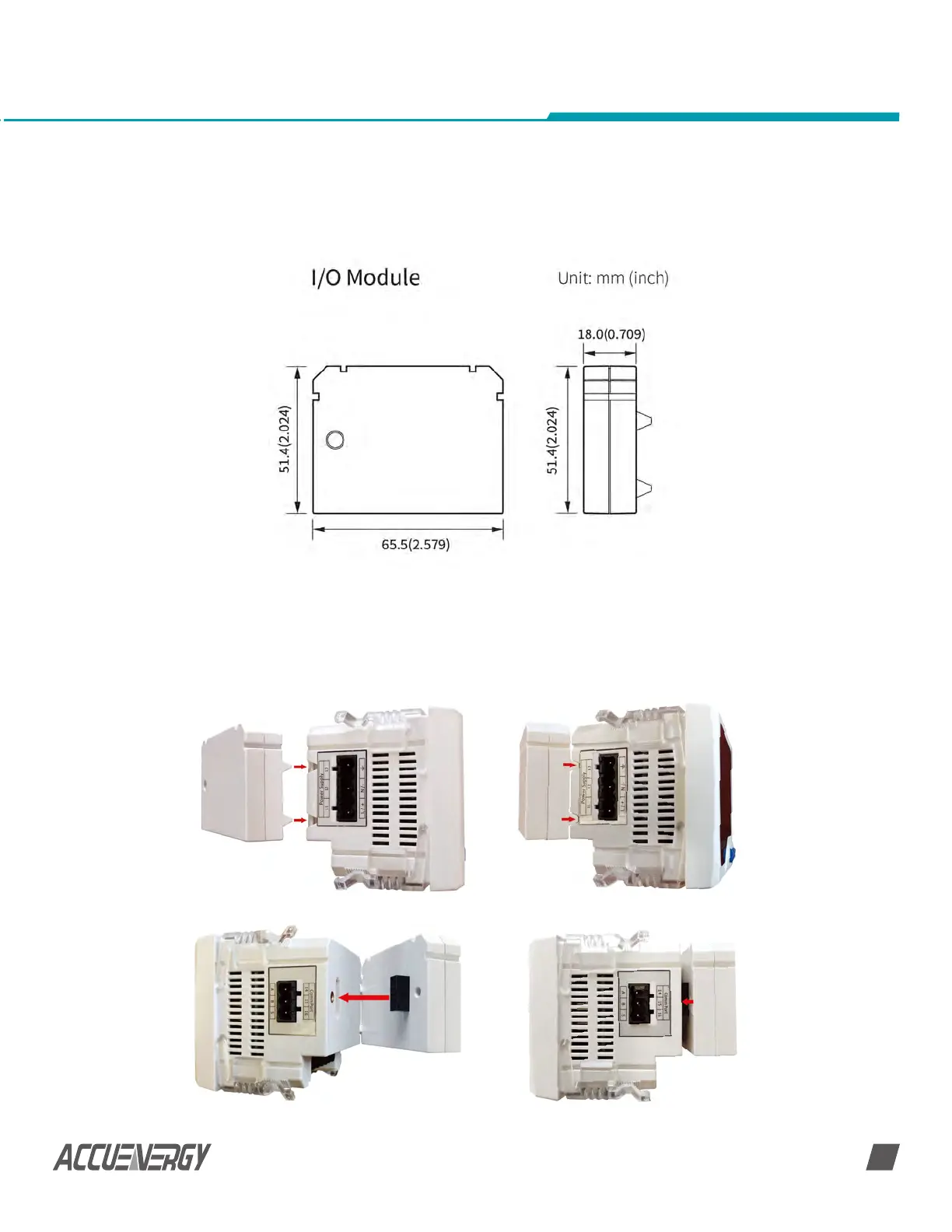

I/O module lightly, so linking is established, as shown in Fig 2-2.
(A)
(C)
(B)
(D)
