www.accuenergy.com
V: 1.0 Revised: Jan. 2018
Chapter 3: Installation - Conguration Parameter Set-up
27
Press ‘F’ and ‘V/A’ simultaneously whiles in the metering display mode to get to the
system parameter setting mode. In the parameter setting mode, Press ‘V/A’ until you get
to the ‘I In’ screen. Enter the rated current input of the shunt in this screen.
NOTE: The setting can be configured in the range of 20-50000A.
NOTE: Only indirect current wiring has this screen.
NOTE: The setting can be configured in the range of 50-100mV.
3.2.3 Configure AcuDC to work with Current Hall Effect Sensor
If the meter is wired to measure current using a Hall Effect sensor, you will have to
configure the full range current setting and Current Hall Effect sensor output range in the
AcuDC, so that it can read accurately from the Hall Effect Sensor. To change the settings
from the meter’s display, first get to the parameter setting mode.
Press ‘F’ to change this setting. A digit will begin to flash and you
will enter the edit mode. Press ‘F’ to increase the value of the
flashing digit and press ‘V/A’ to switch the flashing digit. Press
‘V/A’ when on the last digit to confirm the change; the cursor will
stop flashing at this point
Press ‘F’ and ‘V/A’ simultaneously whiles in the metering display
mode to get to the system parameter setting mode. In the
parameter setting mode, press ‘V/A’ until the screen ‘I o’ displays.
This setting corresponds to the output range of the shunt. Press
‘F’ to change this setting. The first digit will begin to flash. Press
‘F’ to increase the value of the flashing digit. Use ‘V/A’ to switch
the flashing digit. Press ‘V/A’ to confirm the change on the last
flashing digit to go to the next screen.

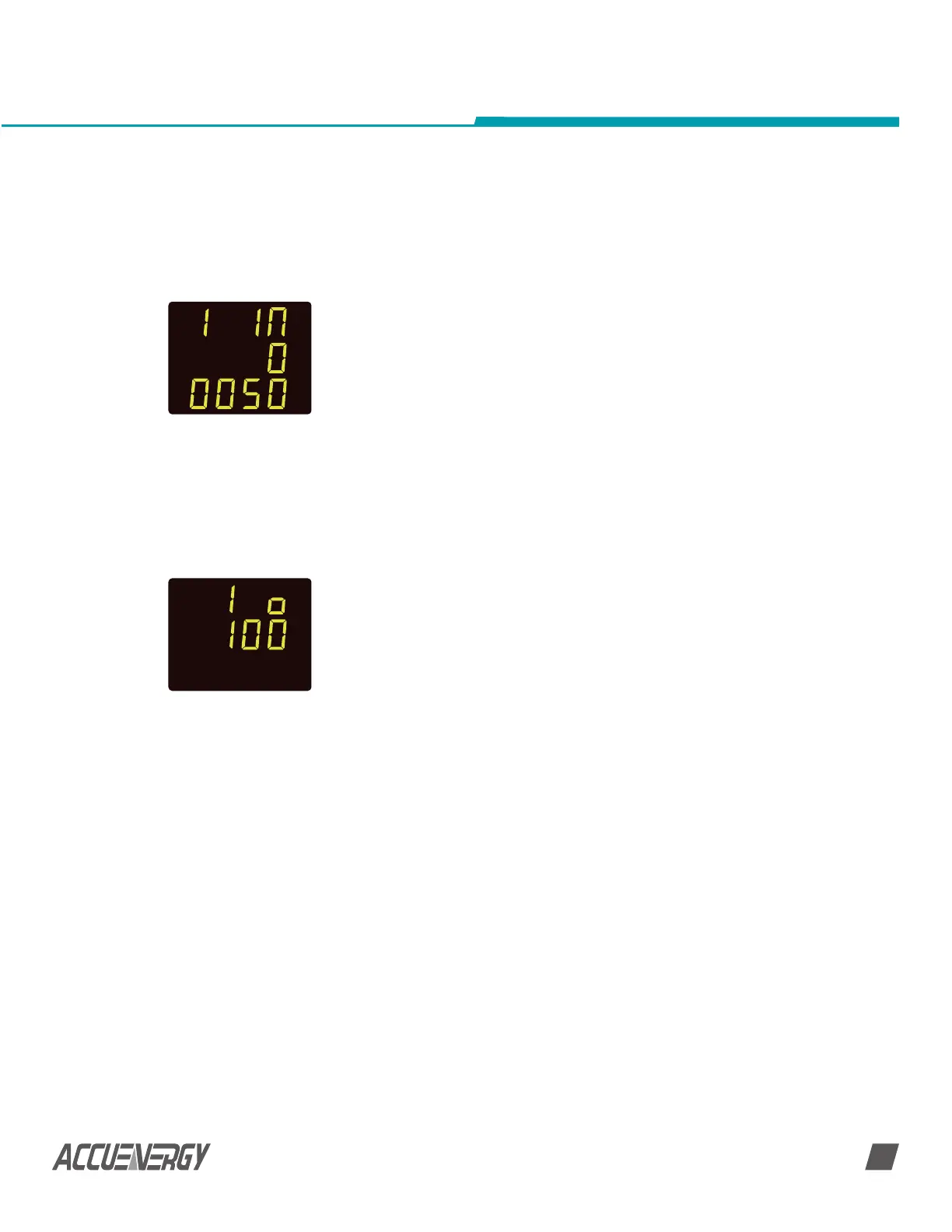

Fig 3-2 Full range
current setting
Fig 3-3 Full range
shunt setting
SET
SET
To Next Page
