www.accuenergy.com
V: 1.0 Revised: Jan. 2018
58
AcuDC 240 Series
DC Energy & Power meters
5.3.3 Reading Data Log on the computer’s memory
Find the data log files from the specified folder location where the file was saved. The
parameter settings for data log on the computer’s memory refer to section 5.2.3. If you
chose the default path, there is a folder named MonData in the Acuview installation
directory where all the data log files are stored. By default, each file name consists of
device description, device type, port(Serial mode), device address and data logging
starting time whose format is YYYYMMDD(Year, Month, Day).

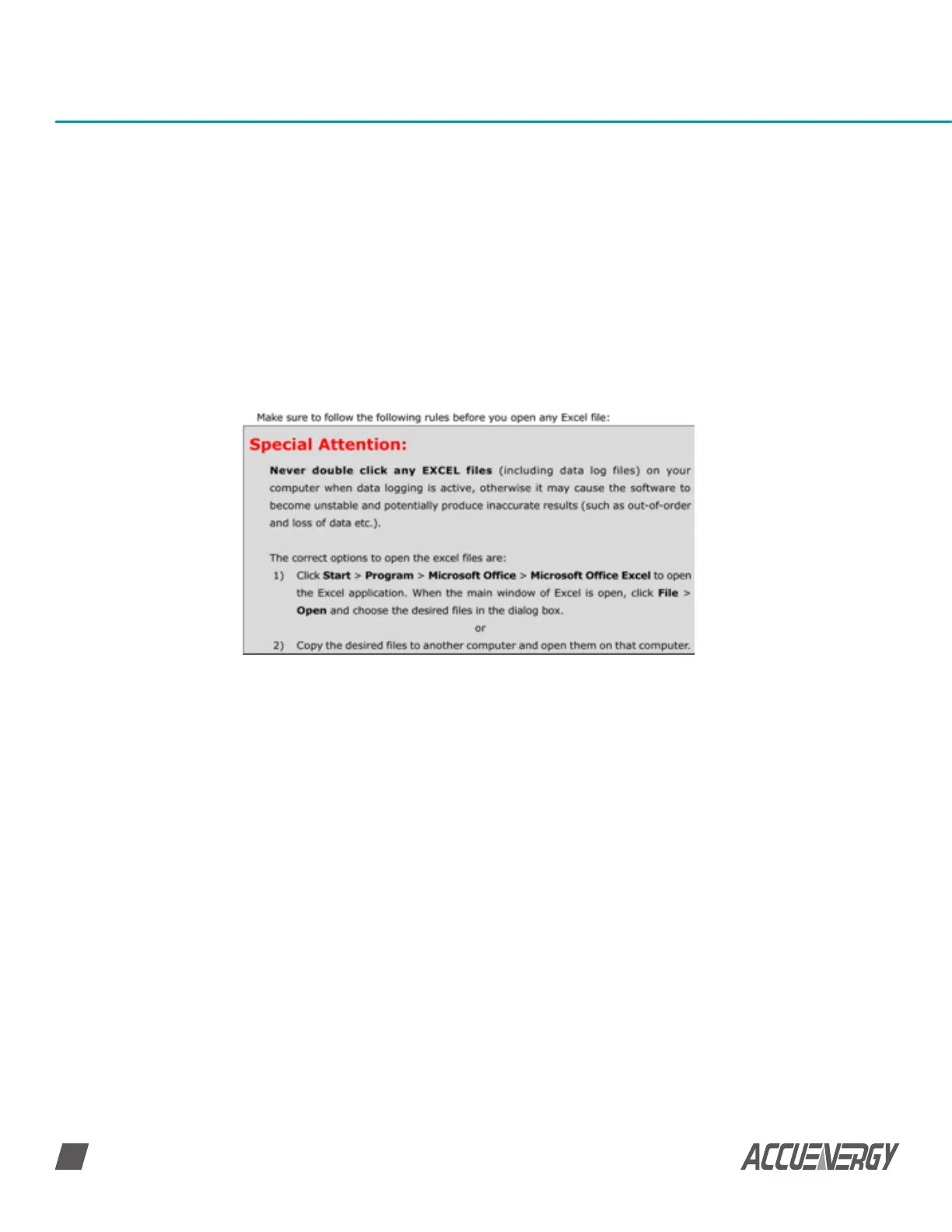

After you open a data log file, you will see the following items: ‘Time U (V) I (A) P (kW)’.
The file content is the same whether data is saved as .txt or .csv or .Excel.
