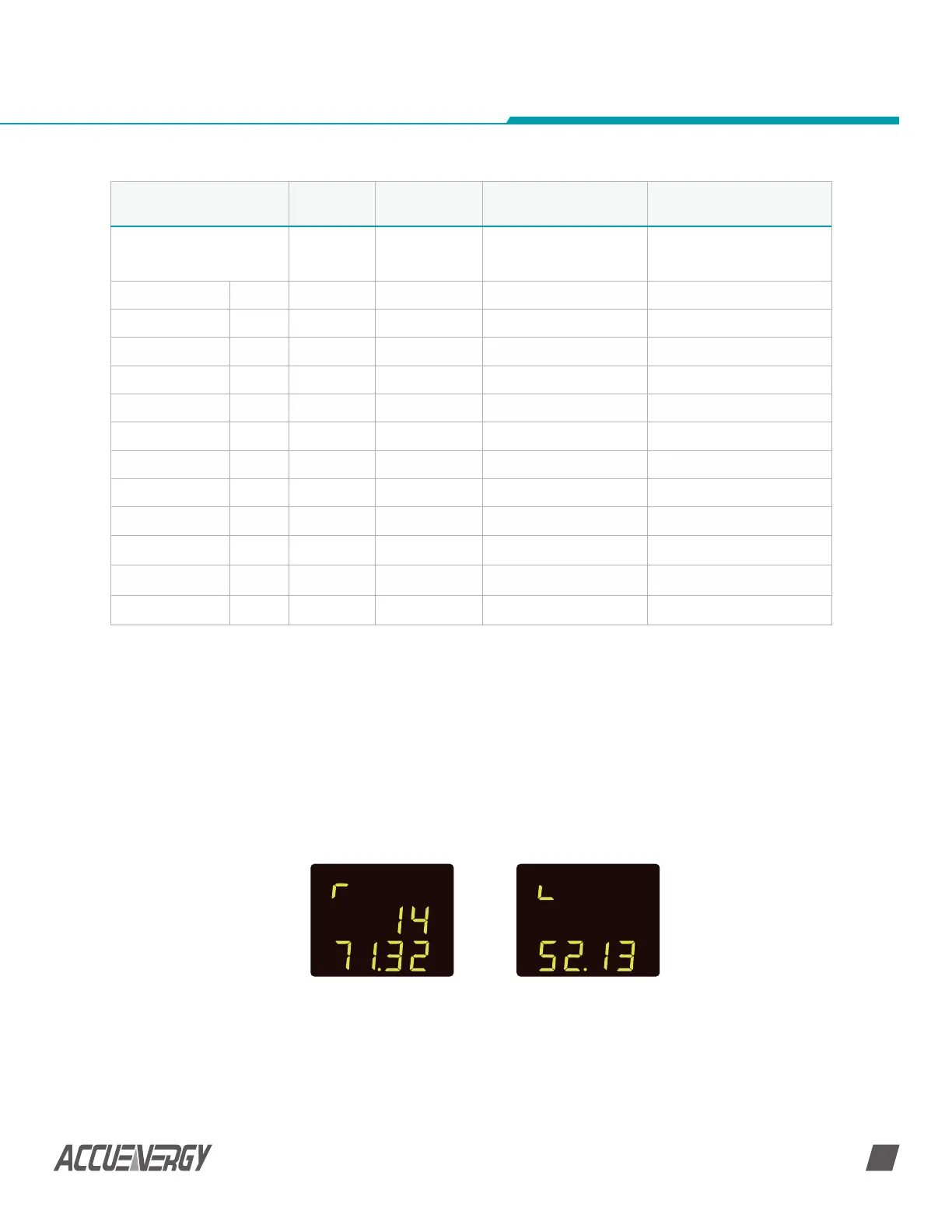

Chapter 4: Viewing Metering Parameters via Display
43
Screen No. Widnow No. Description Operation
Voltage Current Power 1 1
241 only displays voltage;
242 only displays current;
243 displays all
First screen in metering data
display mode
Energy E1 2 1 E1: import energy Press ‘F’ at last screen
E2 2 E2: export energy Press ‘V/A’
E3 3 E3: Total energy Press ‘V/A’
E4 4 E4: net energy Press ‘V/A’
Charge Ah1 3 1 Ah1: import charge Press ‘F’ at last screen
Ah2 2 Ah2: export charge Press ‘V/A’
Ah3 3 Ah3: Total charge Press ‘V/A’
Ah4 4 Ah4: net charge Press ‘V/A’
Meter Clock Date 4 1 Year/month/day Press ‘F’ at last screen
Time 2
Hour/min/sec
24-hour clock
Press ‘V/A’
DI count number
DI1
Count
5 1 Press ‘F’ at last screen
DI2
Count
2 Press ‘V/A’
Fig 4-8 Running Time Display
(a) Meter Running
Time
(b) Load Running
Time
4.2 View the Meter and Load Running Time
If you press down the ‘F’ button for about 3 seconds while in the metering data mode,
you will get to the meter information display mode. You can press ‘F’ to exit the meter
information display mode.
• In this meter information display mode, you can press ‘V/A’ to switch between the
meter running hours and load running hours. ‘r’ means meter running hours while ‘L’
means load running hours.
