Chapter 3: Installation - Con󳆂guration Parameter Set-up
29
After setting up the output range of the Current Hall Effect
Sensor, as shown in Fig 3-5, press ‘V/A’ to go to the next screen.
This will be the ‘U In’ screen, as shown in Fig 3-6. Enter the
rated voltage of the Voltage Hall Effect Sensor. Press ‘F’ to
change this setting. A digit will begin to flash and you will
enter edit mode. Press ‘F’ to increase the value of the flashing
digit. Press ‘V/A’ to switch the flashing digit. Press ‘V/A’ when
on the last digit to confirm the change; the cursor will stop
flashing at this point.
After setting up the rated voltage of the voltage Hall Effect
Sensor, as shown in Fig 3-6, press ‘V/A’ to go to the next screen.
This will be the ‘U P’ screen. This setting corresponds to the
output range of the voltage Hall Effect Sensor. Press ‘F’ to
change this setting and to select required output. Press ‘V/A’
to confirm this setting; the cursor will stop flashing at this
point.
To clear the readings from the meter display mode, first get
to the Setting mode. Press ‘F’ and ‘V/A’ simultaneously whiles
in the metering display mode to get to the system parameter
setting mode. In parameter setting mode, press ‘V/A’ until
you get to the ‘EdEL’ screen, as shown in Fig 3-8. The screen
displays ‘No’, which means energy not cleared. Press ‘F’ twice
and it will show ‘YES’, which means ‘clear energy’, and the
energy will be cleared to 0. After you choose ‘YES’ or ‘NO’,
press ‘V/A’ to confirm and go to the next screen.
Press ‘F’ and ‘V/A’ simultaneously whiles in the metering
display mode to get to the system parameter setting mode. In
parameter setting mode, press ‘V/A’ until you get to the ‘AdEL’
screen, as shown in Fig 3-9. The screen displays ‘No’, which
means charge not cleared. Press ‘F’ twice and it will show
‘YES’, which means clear charge Ah, and the charge Ah will
be cleared to 0. After you choose ‘YES’ or ‘NO’, press ‘V/A’ to
confirm and go to the next screen.

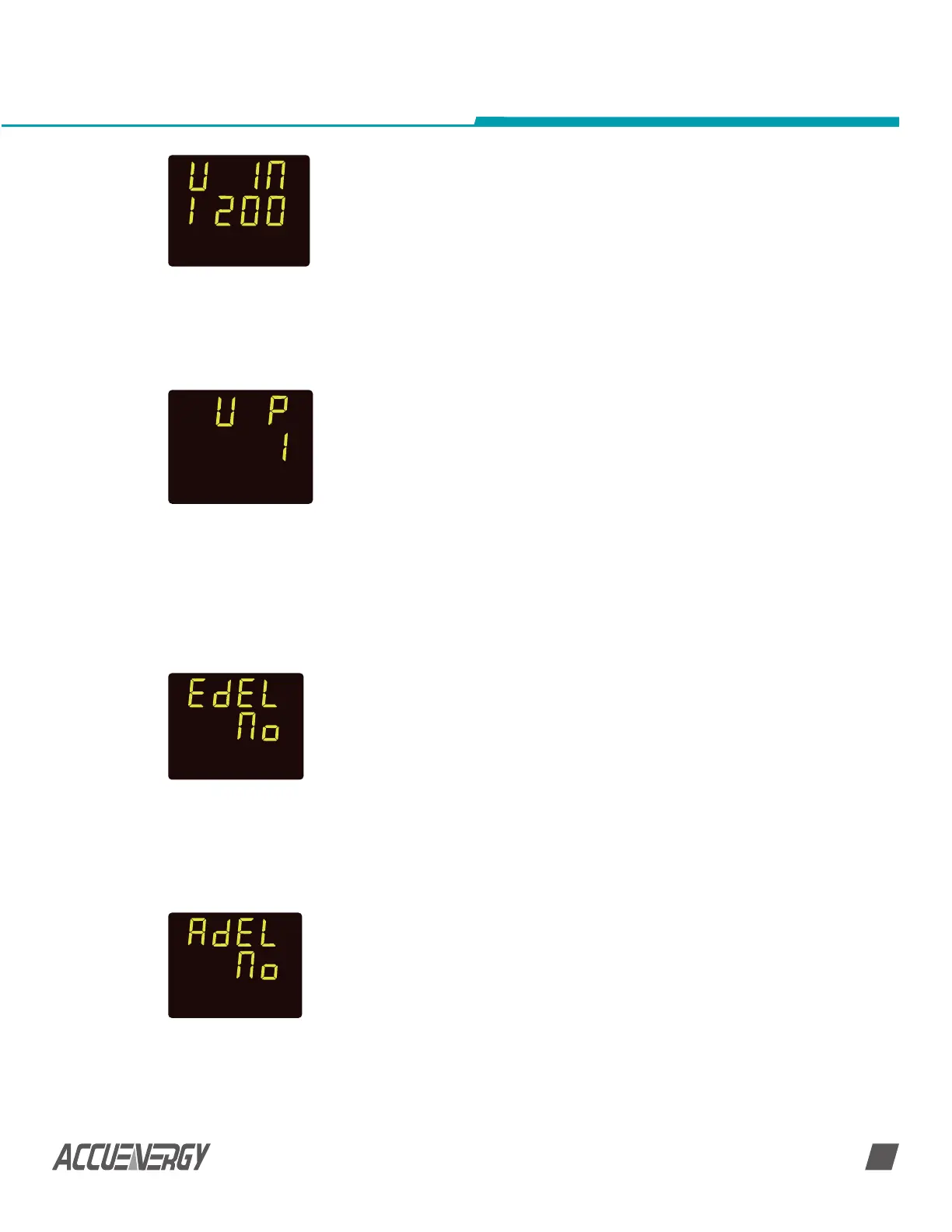

Fig3-6 Range
Voltage setting
Fig 3-7 Voltage Hall
Effect Sensor setting
Fig 3-8 Clear Energy
Fig 3-9 Clear Ah
NOTE: The default setting is ‘0’: 0~±5V. The other mode is ‘1’: for 0~±4V.
SET
SET
3.2.5 Clear Energy, Ah and DI Counter
SET
SET
