5.3 Viewing Metering Parameters
5.3.1 Real-Time Metering
From the left navigation panel click on the ‘Readings’ tab and then select ‘Real-Time
Metering’ to view the meter’s real time data. You can read voltage, current, energy, charge
etc, as shown in Fig 5-9.
You can modify the value of energy and charge by clicking the underlined figures. And
you can also reset the energy, charge, DI counter and Max and Min by clicking ‘Reset’, the
values will reset to 0.
On this reading window you can also control relay 1 and relay 2.

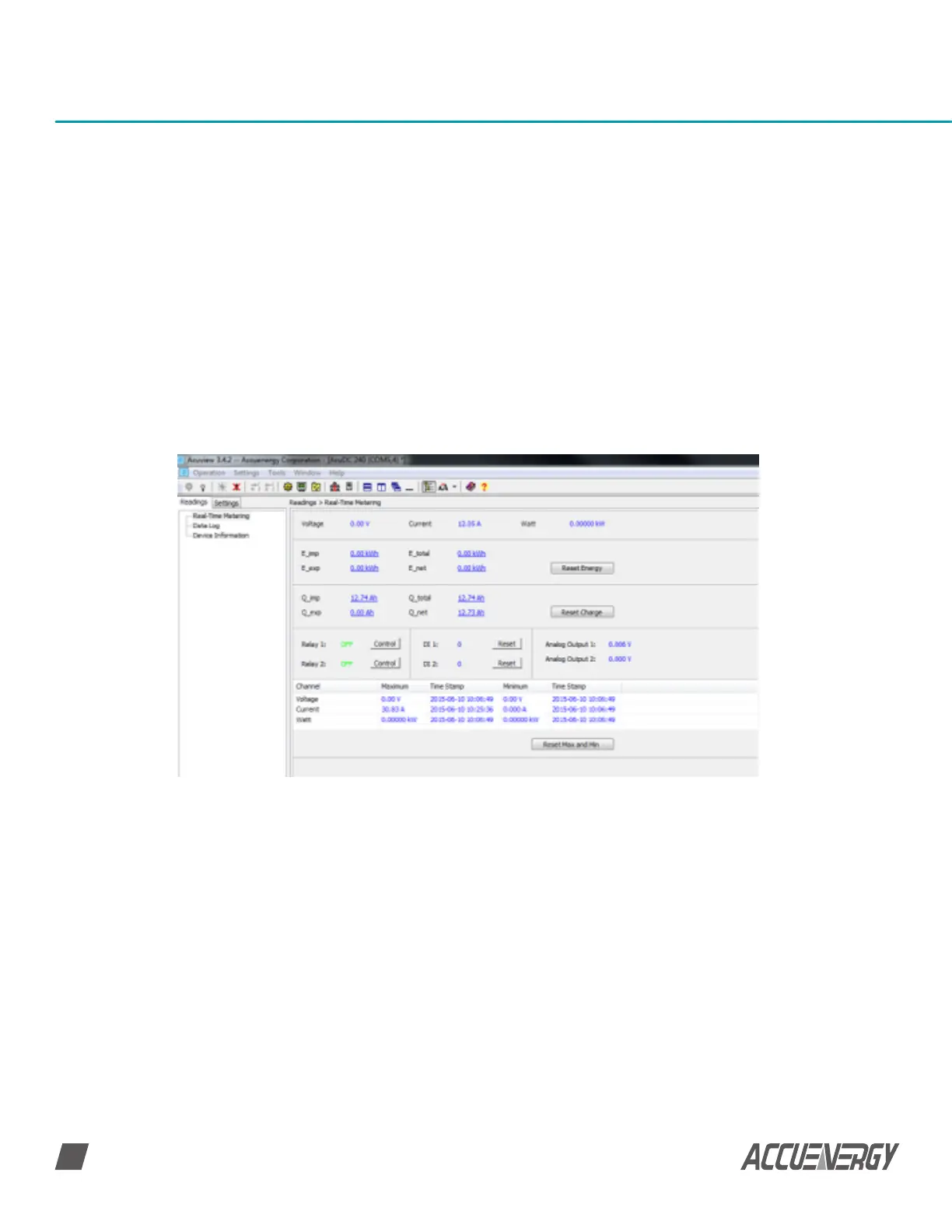

Fig 5-9 Reading Real Time Meter (change another picture, with load, this reading
without load, so voltage is 0)
