AcuDC 240 Series
DC Energy & Power meters
Press ‘F’ to go to the third screen. The third screen shows Electric charge.
You can press ‘V/A’ on the electric charge screen to switch between different types of
charges. Ah1 = Import Charge, Ah2 = Export Charge, Ah3 = Total Charge (absolute sum of
Import Charge Ah and Export Charge Ah), and Ah4 = Net Charge (algebraic sum of Import
Charge Ah and Export Charge Ah).

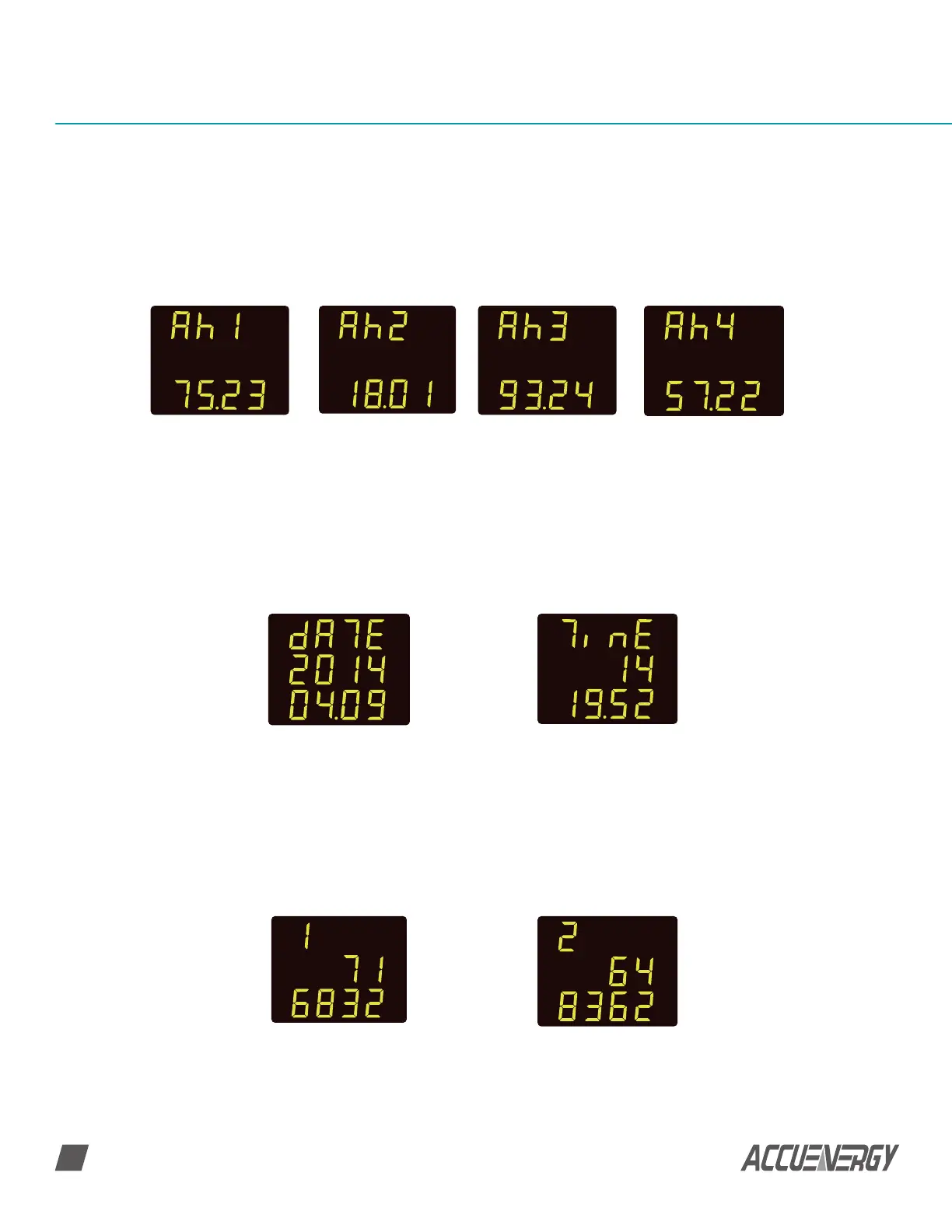

Fig 4-5 Charge Display
Press ‘F’ to go to the fourth screen. The fourth screen shows clock information. For
example, screen displayed in Fig 4-6a shows the date is 2014:04:09; screen displayed in
Fig 4-6b shows the time is 14:19:52. You can press ‘V/A’ on the clock information screen to
switch between the date and time.
Fig 4-6 Clock Information Display
If the meter is equipped with DI counting function (AcuDC 240 with I/O module), press ‘F’
key to go to the DI count display screen. You can press ‘V/A’ on the DI counting screen to
switch between the DI1 and DI2 counting.
Fig 4-7 DI Count Display
(a) Import Charge (b) Export Charge
(a) Date Display
(a) DI1 Count Display
(c) Total Charge
(b) Time Display
(b) DI2 Count
Display
(d) Net Charge
