Chapter 4: Viewing Metering Parameters via Display
41
For the AcuDC 241, it only displays voltage, and there is a unit ‘V’
shown at the top right corner. For example, the screen in Fig. 4-1
shows it is AcuDC 241, and the voltage is 220.2V.
For the AcuDC 243, the screen displays current, voltage and
power, and the units are ‘V, A and kW’ shown at the top right
corner. The first line displays voltage, the second line displays
current and the third line displays power. For example, the voltage
shown in the left figure is 220.2V; the current shown in the left
figure is 49.99A, the power shown in the left figure is 11.00KW.
Communication status is active.
(a) Import Energy (b) Export Energy (c) Total Energy (d) Net Energy

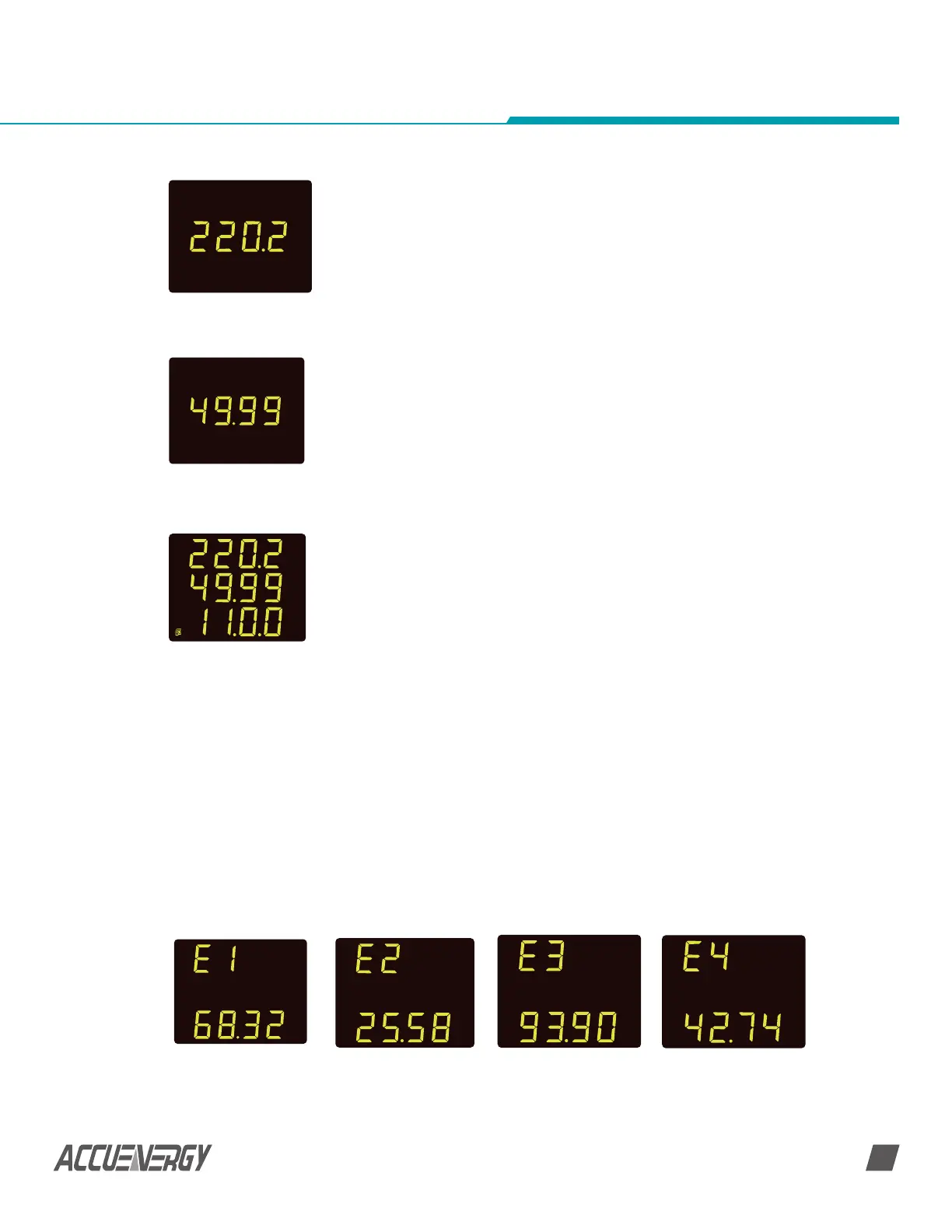

Fig 4-1 Voltage
Display (AcuDC 241)
V
For the AcuDC 242, it only displays current, and there is a unit ‘A’
shown at the top right corner. For example, the screen in Fig. 4-2
Shows it is AcuDC 242, and the current is 49.99A.
Fig 4-2 Current
Display (AcuDC 242)
k
Fig 4-3Multifunction
Display (AcuDC 243)
1
V
A
kW
2
3
NOTE: Communication status is displayed on every screen in AcuDC 243.
Press ‘F’ to view the Energy data.
You can press ‘V/A’ on the energy screen to switch between different types of energy.
E1 = Import Energy (consumed energy), E2 = Export Energy (generated energy) , E3 =
Total Energy (absolute sum of import energy and export energy), and E4 = Net Energy
(algebraic sum of import energy and export energy).
Fig 4-4 Energy Display
kWh
kWh
kWh
kWh
