www.accuenergy.com
V: 1.0 Revised: Jan. 2018
52
AcuDC 240 Series
DC Energy & Power meters

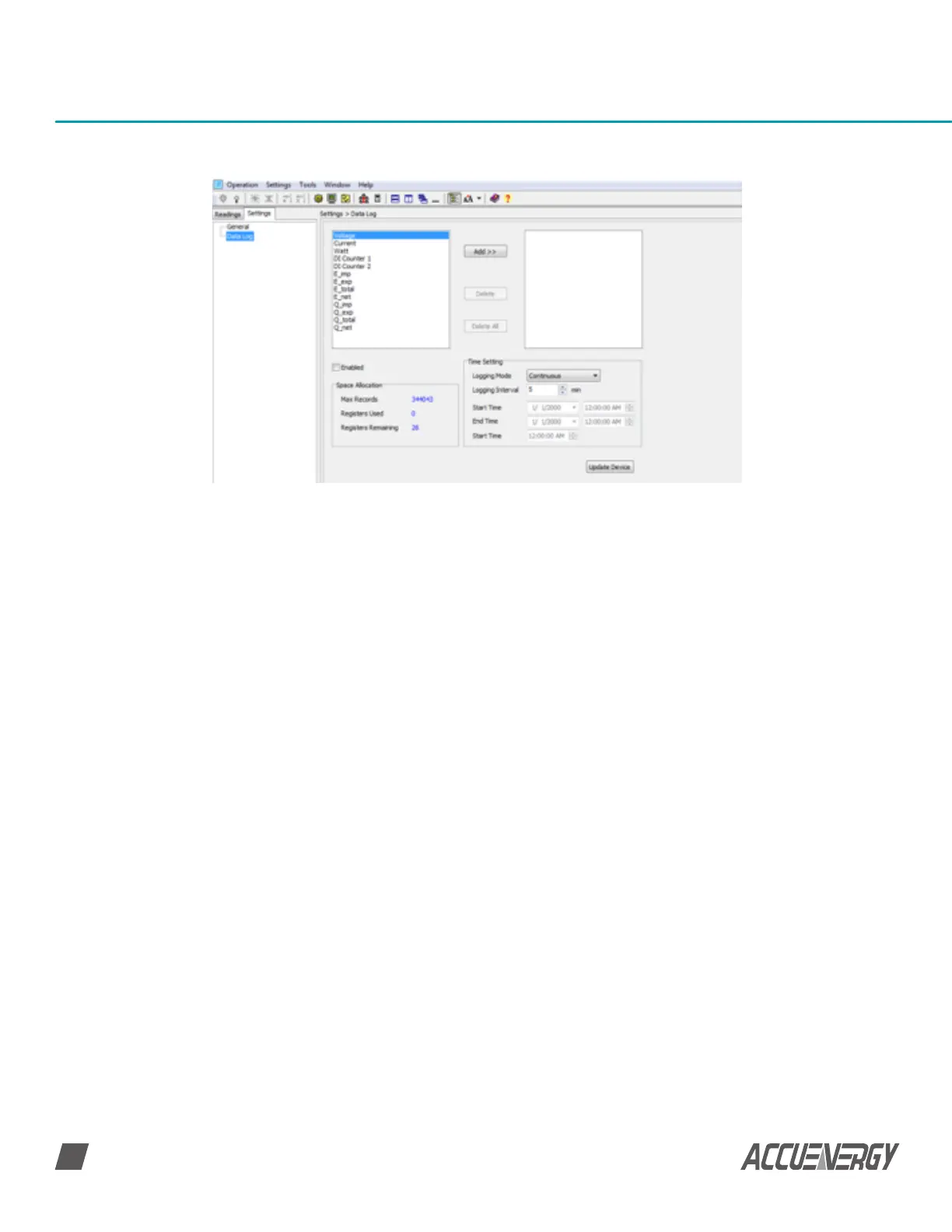

Fig 5-5 Data Log readings
Parameter Selection: Select the parameters you would like to log (from the left
box), click ‘Add’ to add them to the box on the right.
Enable Data Log: Make sure you check the box ‘Enabled’ to enable data log.
Time Setting: There are three different Logging Modes.
• Continuous: This will start logging data immediately, after the ‘Update Device’ button
is clicked.
• In this mode, you will have to set the Logging Interval.
NOTE: When the memory is full, a memory sector is deleted and the data logging
will continue for the above two modes.
NOTE: When the memory is full, the data logging will stop. Make sure to click on
‘Update Device’ after making changes, so that the changes can be saved on the
meter.
NOTE: When you click on ‘Update Device’, the meter’s data log memory will be erased.
• Scheduling: This will start logging data from a set Start Time.
• In this mode, you will have to set the Logging Interval and Start Time.
• Interval: This will log data from a start time to an end time.
• In this mode, you will have to set the Logging Interval, as well as the Start Time
and End Time.
