Accuphase DP-77 User Manual

21
1
2
DO2-HS1
HS-Link
DIGITAL
OUTPUTS
OPTION 8 OPTION 7 OPTION 6OPTION 5 OPTION 4 OPTION 3 OPTION 2 OPTION 1 EXT DSP OUTPUTS
SERIAL NO.
THIS DEVICE COMPLIES WITH PROT 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS (I) THIS DEVICE MAY NOT CAUSE HARMFUL INTTERFERENCE
AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION
ADB2 Interface
DIGITAL INPUT
HS-Link
DI2-HS1
DI2-HS1
installed
OPTION 2OPTION 1
INPUT
COAXIAL
OUTPUT
COAXIAL
〜 AC IN
ADB2 Interface
DIGITAL INPUT
HS-Link
DI2-HS1
High
Low
DC-330
DF-35
For 5-way
configuration
and higher:
to DF-35
1
2
DO2-HS1
HS-Link
DIGITAL
OUTPUTS
Power amplifier
Power amplifier
DO2-HS1 installed in
OUTPUTS slot
DI2-HS1 installed
HS-Link cable
HS-Link cable
Audio cable
Audio cable
DP-77
DO2-HS1 installed
DI2-HS1
installed

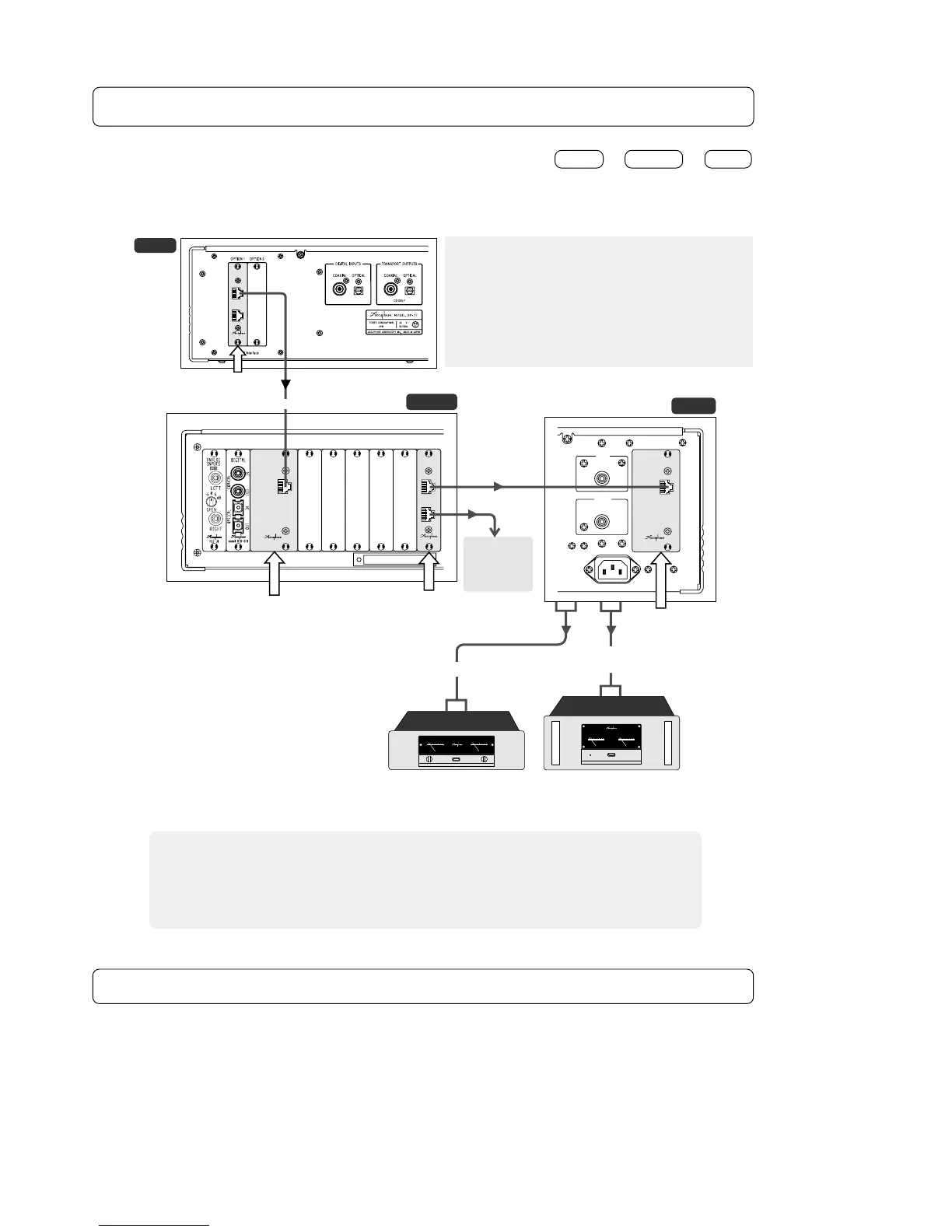

Digital Connection of the DP-77 to the DC-330 or DF-35
●
DO2-HS1 installed in option board slot of DP-77
●
DI2-HS1 installed in option board slot of DC-330
DO2-HS1 installed in OUTPUTS slot of DC-330
●
DI2-HS1 installed in option board slot of DF-35
●
For a 5-way configuration and higher, install
DI2-HS1 in the option board slot of each DF-35
and use HS-Link cable for the connections.
Using the HS-Link, it is possible to keep the connection of the DP-77 → DC-330 → DF-35
entirely in the digital domain until immediately before the power amplifier. The various
components are connected with HS-Link cable.
Note
●
The SACD/CD signal supplied to the DC-330 via the HS-Link can only be
transmitted further using HS-Link. Therefore there will be no output from any
digital input/output board other than HS-Link (such as the DIO-OC1) installed in
the OUTPUTS slot of the DC-330.
Connection to the DC-101
Connect the TRANSPORT OUTPUTS of the DP-77 to the DC-101.
＊ When the HS-Link Output Board DO2-HS1 is installed in the DP-77, SACDs or CDs can be
played via the HS-Link connection, but the signal supplied via the HS-Link cannot be
recorded in digital or analog form via the output of an option board in the DC-101.
＊ The COAXIAL and Toslink outputs allow playback of CDs only. Recording via the output
of an option board in the DC-101 is possible.
●
For a connection example with HS-Link, see page 6

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
