Digital Connection Example
＊ForconnectingtheDG-28,installtheWideRangeDigitalInput/OutputBoard(DIO2-DG1)intheEXTDSPslot
ontherearpaneloftheDC-330,asshownintheillustration.
＊ForconnectingtheDG-38,thesameapproachasaboveispossible,butbecausetheDG-38comesstandard
withHS-Link,adirectconnectionwithHS-Linkcableisrecommended.Fordetails,seetheinstructionmanual
oftheDG-38.
Connection
example 1
…SACD/CD playback with the DP-77
●
Because the DIO2-DG1 is a two-slot option board, it will use also OPTION 1 on the left.
●
When the DIO-OC1 or DIO-ST1 is installed in the EXT DSP slot, only CD signals can be
played back. SACD signals will not lock.
Note

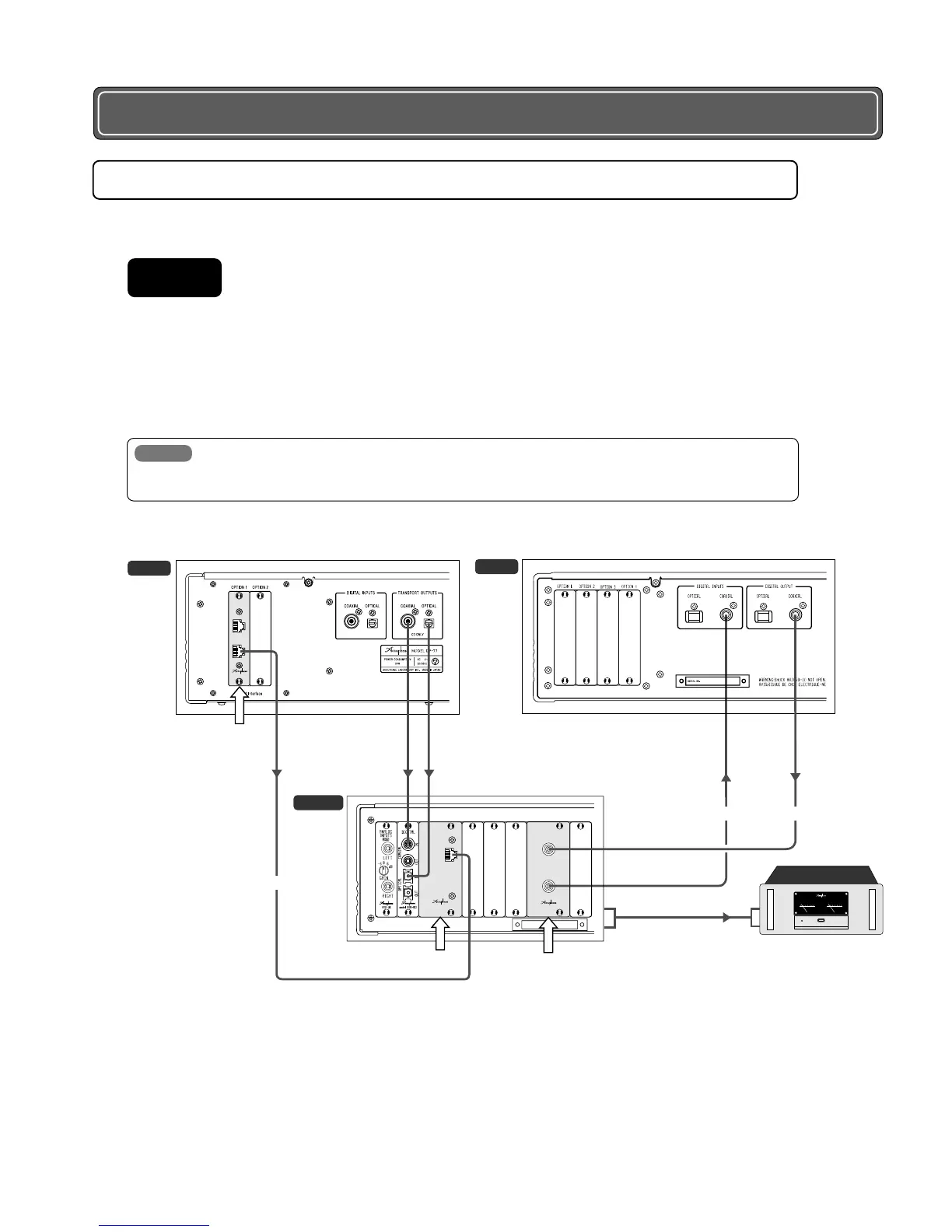

DG-28/DG-38 Connection
DC-330
DIGITALOUT
DIGITALIN
DIGITAL
OUT
DIGITAL
IN
DIGITAL
INPUT
OUTPUT
DIO2-DG1
DC-330
OPTION 8 OPTION 7 OPTION 6 OPTION 5 OPTION 4 OPTION 3 OPTION 2 OPTION 1 EXT DSP OUTPUTS
SERIAL NO.
THIS DEVICE COMPLIES WITH PROT 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS (I) THIS DEVICE MAY NOT CAUSE HARMFUL INTTERFERENCE
AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION
ADB2 Interface
DG-28
1
2
DO2-HS1
HS-Link
DIGITAL
OUTPUTS
DIGITAL INPUT
HS-Link
DI2-HS1
DP-77
DIO2-DG1 installed in
EXT DSP slot
Audio cable
Power amplifier
Analog output
Coaxial digital cable
DO2-HS1
installed
Coaxial digital
cable
Toslink
cable
HS-Link cable
DI2-HS1
installed
By connecting the Digital Voicing Equalizer DG-28/DG-38, sound field compensation entirely in the digital domain
is possible.

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
