Accuphase DP-77 User Manual

2
SACD
MULTI-TEXT TRACK INDEX DISC ARTIST MIN SEC
SHUF PROG REPEAT1A-B
LEVEL (-dB)
OPT
COAX
ANALOG
Lights up during hybrid
disc playback
Lights up during
shuffle playback
Lights up during
repeat playback
HYBRID DISC
Lights up in program mode
Analog output level
Lights up during processor operation
Shows play track, total number of tracks, play time, etc.
For text information
Max. 14 characters can be shown at one time
Information longer than 14 characters scrolls once
OPT : Optical fiber input of DIGITAL INPUTS is used
COAX : Coaxial input of DIGITAL INPUTS is used
ANALOG : Analog option board is used for input
MULTI-TEXT : Lights up when disc contains text in multiple languages
TEXT : Lights up when disc contains text
TRACK : Lights up during track name or track number display
INDEX : Lights up during index display
DISC : Lights up during disc name display
ARTIST : Lights up during artist name display
MIN, SEC : Lights up during play time minutes/seconds display
Lights up
during pause
Lights up
during play
SACD : Lights up during SACD playback
CD : Lights up during CD playback
18
7
Display mode selector button (page 9)
21
22
25
6
17
19
20
11
Same as 
Input selector buttons
(page 7, 22)
23
CLEAR button (page 9)
24
LANGUAGE
Text selector button (page 9)
26
Time mode/Text switching buttons (page 9, 13, 19)
27
Program play buttons (page 9, 18, 19)
28
5
4
10
Shuffle play button (page 9, 17)
Direct play buttons (page 9, 14)
Output level adjustment buttons
Same as STOP button
(page 7)
Index search buttons (page 9, 15)
Repeat buttons (page 9, 16)
CONTINUE button (page 9, 17)
Transmitter
Point at remote sensor
8
Same as SACD/CD button (page 7)
Same as PAUSE button (page 7)
Same as PLAY button (page 7)
Same as Track search buttons (page 7)
FR (Fast Reverse) / FF (Fast Forward) buttons
(page 9)
Because DP-77 does not
have an EXT DSP function,
this button has no effect
(page 9)
□

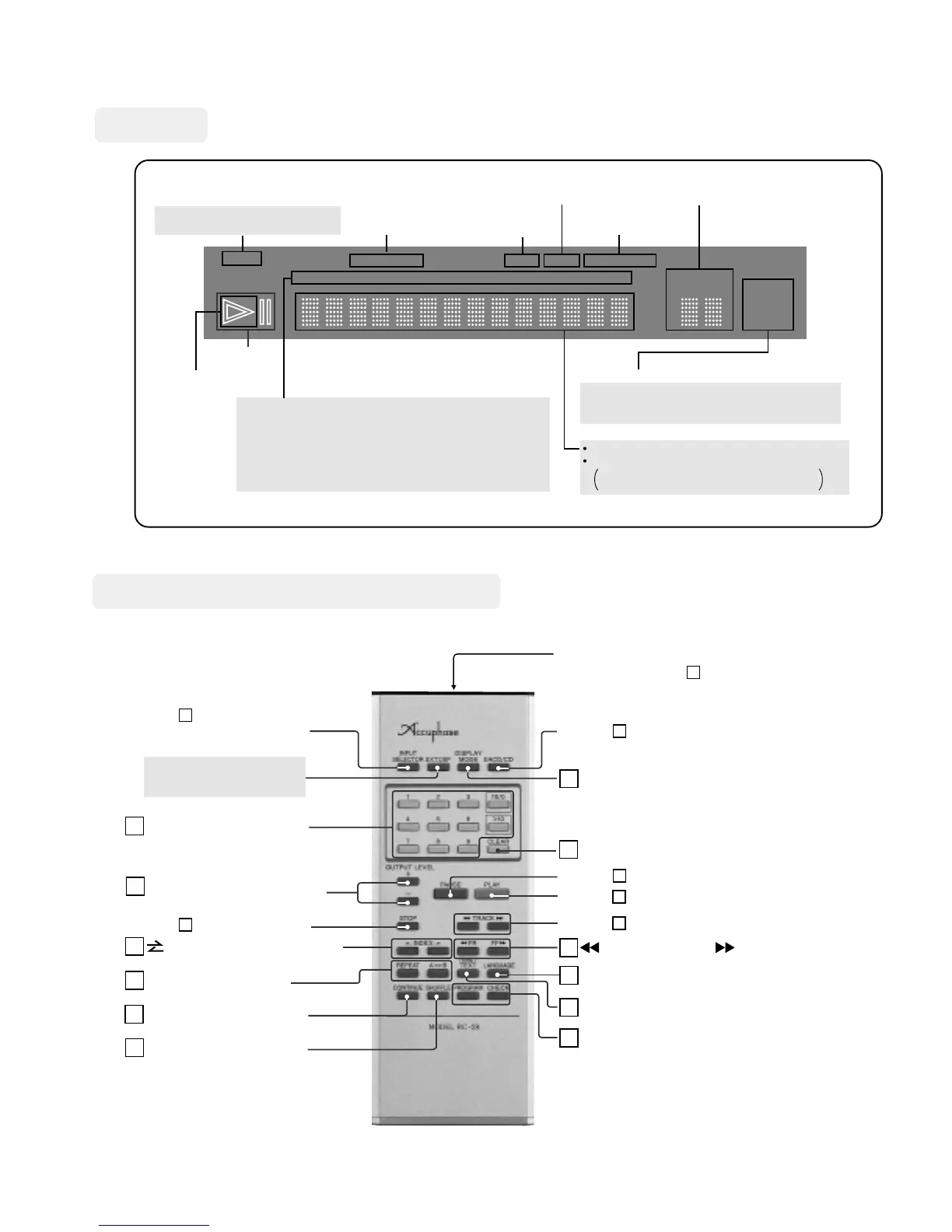

Display
Seepage12,13
6
(Displaycontentsareforillustrationonly,actualindicationsmaydiffer.)
(Forinformationonuse,seepage34.)
Remote Commander RC-28 (supplied)

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
