Accuphase DP-77 User Manual

27
For analog connection to the DG-38, install the optional Line Input Board and Line Output Board.

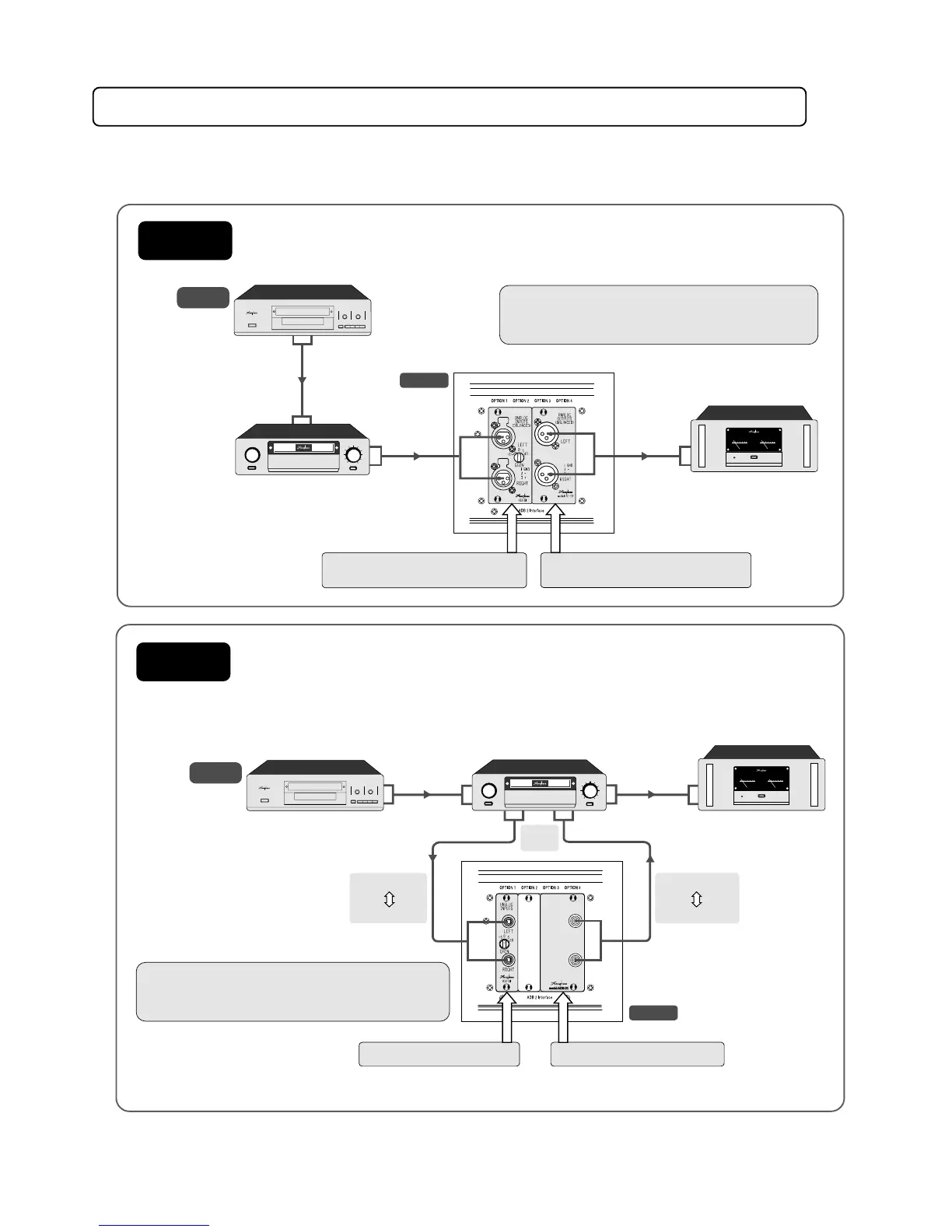

Analog Connection Example
Preamplifier
Power amplifier
Analogoutput
INOUT SELECTOR
VOLUME
OPTION-2
CD-BAL
TUNER
OPTION-1
DP-77
DG-38
For balanced connections: AI2-B1
For unbalanced connections: AI2-U1
For balanced connections: AO2-B1
For unbalanced connections: AO2-U1
Line Input Boards
Line Output Boards
For connecting the DG-28, use the Wide Range Analog
Input/Output Board AIO-DGU1 or AIO-DGB1.
※For information on these boards, see page 32.
Preamplifier or
integrated amplifier
(Not required when integrated
amplifier is used)
Analogoutput
TAPE
jacks
REC
PLAY
ANALOG
OUTPUTS
LEFT
RIGHT
INOUT SELECTOR
VOLUME
OPTION-2
CD-BAL
TUNER
OPTION-1
TAPEREC

AI2-U1
TAPEPLAY

AO2-U1
DP-77
DG-38
Analog Input Board: AI2-U1 Analog Output Board: AO2-U1
2 slots
For connecting the DG-28, use the Wide Range Analog
Input/Output Board AIO-DGU1 or AIO-DGB1.
※For information on these boards, see page 32.
Connection
example 1
… DG-38 connected between preamplifier and power amplifier
Connection
example 2
…DG-38 connected to the TAPE jacks of a preamplifier or an integrated
amplifier
※For information on option boards, see page 33.

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
