Accuphase DP-77 User Manual

26
Display example
Turn to select input source
(DP-100 connected to DG-38 via HS-Link in illustration example)
INPUT SELECTOR
EXT DSP
EXT DSP
Lock indication disappears after 2 seconds
DIGITAL INPUT
HS-Link
DI2-HS1
DP-77
DIGITAR OUTPUTS
HS-LINK CORXIAL
CD ONLY
ON/OFF
THIS DEVICE COMPLIES WITH PROT 15 OF THE FCC RULES OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS (I) THIS DEVICE MAY NOT
CAUSE HARMFUL INTTERFERENCE AND(2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED INCLUDING INTERFERENCE
THAT MAY CAUSE
UNDESIRED OPERATION
Audio cable
Preamplifier
INOUT SELECTOR
VOLUME
OPTION-2
LINE-BAL
LINE-2
LINE-1
CD
CD-BAL
TUNER
OPTION-1
Analog output
DIGITAL OUT
DP-100
HS-Link cable
75-ohm coaxial cable
DI2-HS1 installed
DG-38
mm B compacr disc player DP-65V
CD transport, MD recorder, or
other digital component

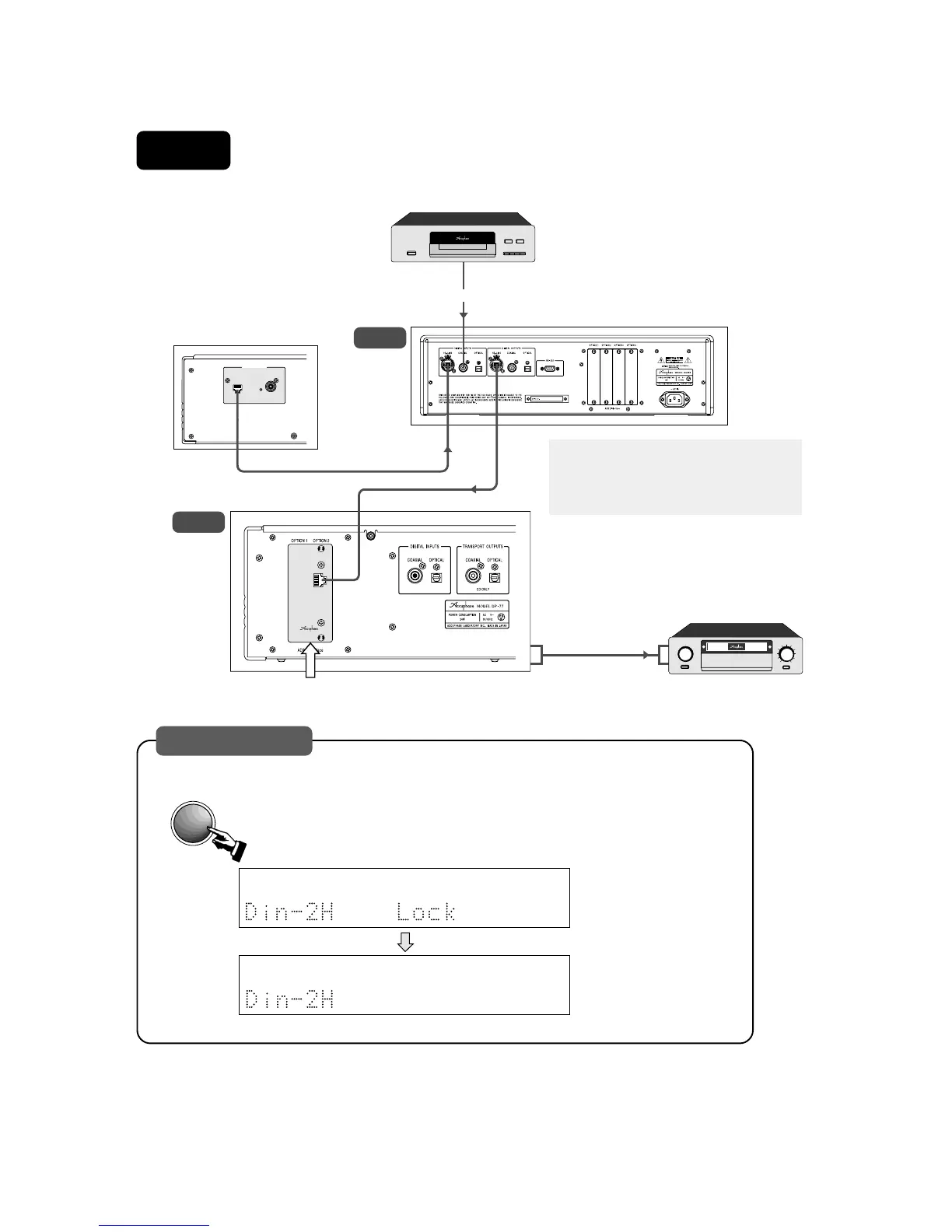

Connection
example 2
…UsingthedigitalprocessorsectionoftheDP-77
＊Select"HS-Link"or"COAXIAL"fromthe
INPUTSELECTORmenuoftheDG-38.
＊TheHS-Linkconnectionisavailablewith
theDG-38only.

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
