EVO 150 Controller
41
Appendix 3 / Centerline Guiding with One Detector
The Centerline Guiding with One Detector feature allows for centerline guiding within the area of
detection of one edge detector, as well as, either edge of the web within the edge detector. This
feature can be used for applications that do not allow for standard centerline guiding with two
edge detectors.
To select Centerline Guiding with One Detector, set parameter 98 to a value of 1. Centerline
Guiding with One Detector can also be selected over the fieldbus interface, see page 103.

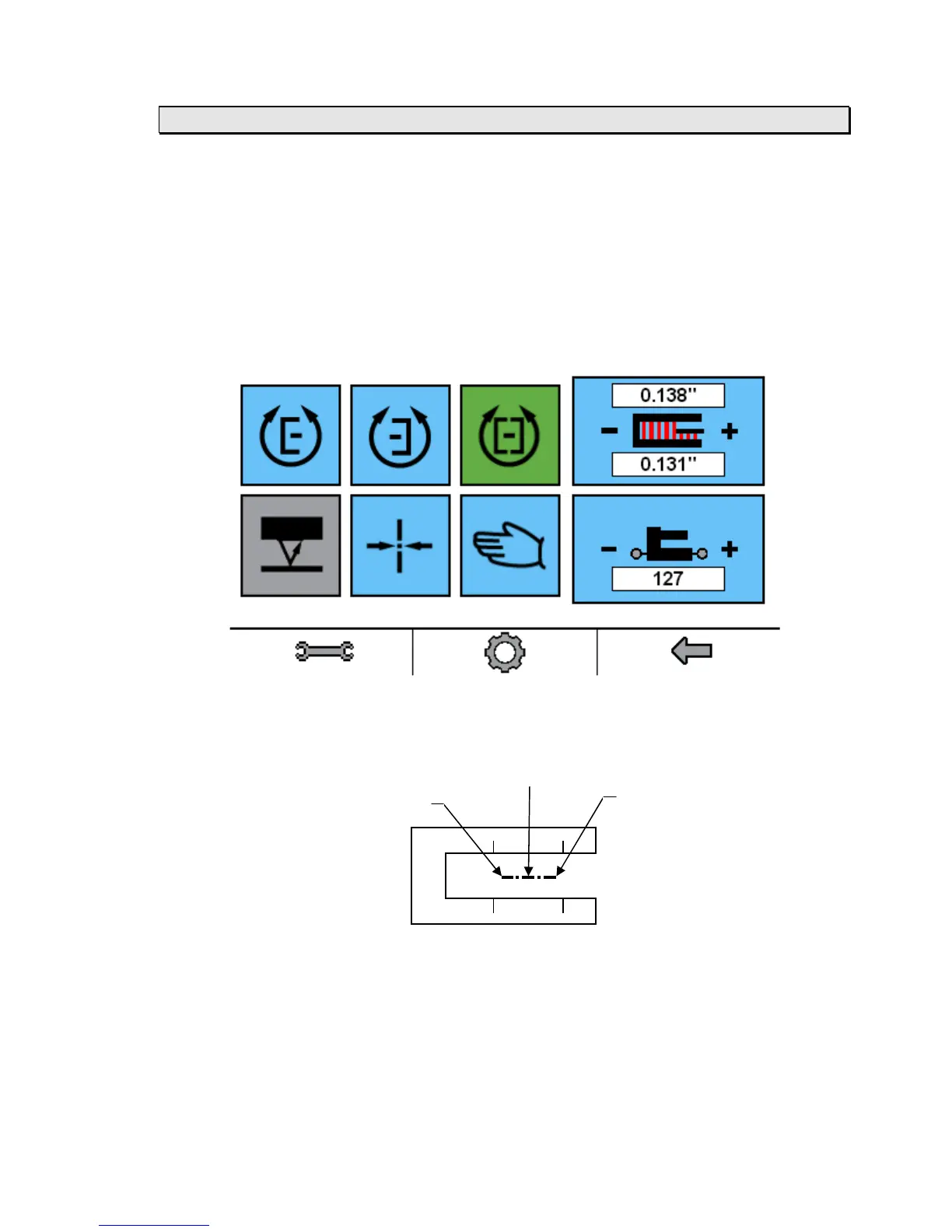

When using a web browser to operate the EVO 150 select the applicable edge detector to begin
guiding.
Edge Detector A
Edge A
Edge B
C/L
To Next Page
