Appendix 1 / DeviceNet Interface
Product Specifications:
Card size (H x W x D): 3.38” [86mm] x 2.13” [54mm] x 0.59” [15mm]
Power requirements: Supplied by DeviceNet controller (+24 VDC @ 70mA max.)
Operating
environment:
Maximum ambient temperature 120 deg F [48.9 deg C]
Humidity 0-90% non-condensing
DeviceNet is a versatile, general-purpose fieldbus
designed to satisfy the most common machine
and cell-level wiring requirements. Devices can be powered from the network so wiring is
minimized. The protocol is implemented on many different products from various manufacturers,
from smart sensors to operator interfaces and AccuWeb web guides.
The media for the fieldbus is a shielded copper cable composed of one twisted pair and two wires
for the
external power supply. The baud rate can be changed between 125, 250, and 500 kbit/sec
via a DIP switch on the DeviceNet interface card.

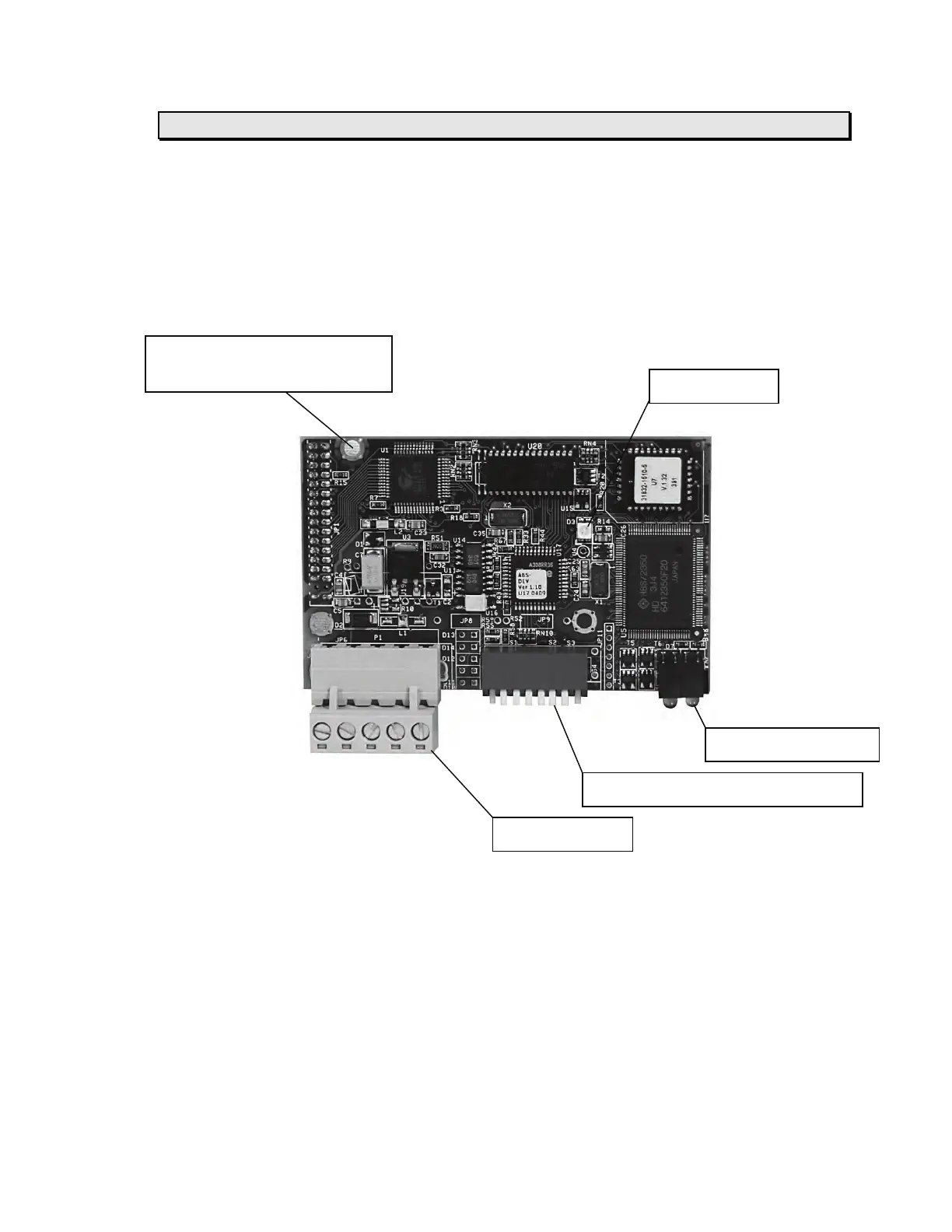

Mounting holes for stand-offs on
MICRO 4000
NET controller
Watchdog LED
Baud rate and address DIP switches
LED status indicators
Cable connector
Fieldbus Interface
117
