Appendix 2 / Profibus Interface
Product Specifications:
Card size (H x W x D): 3.38” [86mm] x 2.13” [54mm] x 0.59” [15mm]
Power requirements: None – provided by network
Operating
environment:
Maximum ambient temperature 120 deg F [48.9 deg C]
Humidity 0-90% non-condensing

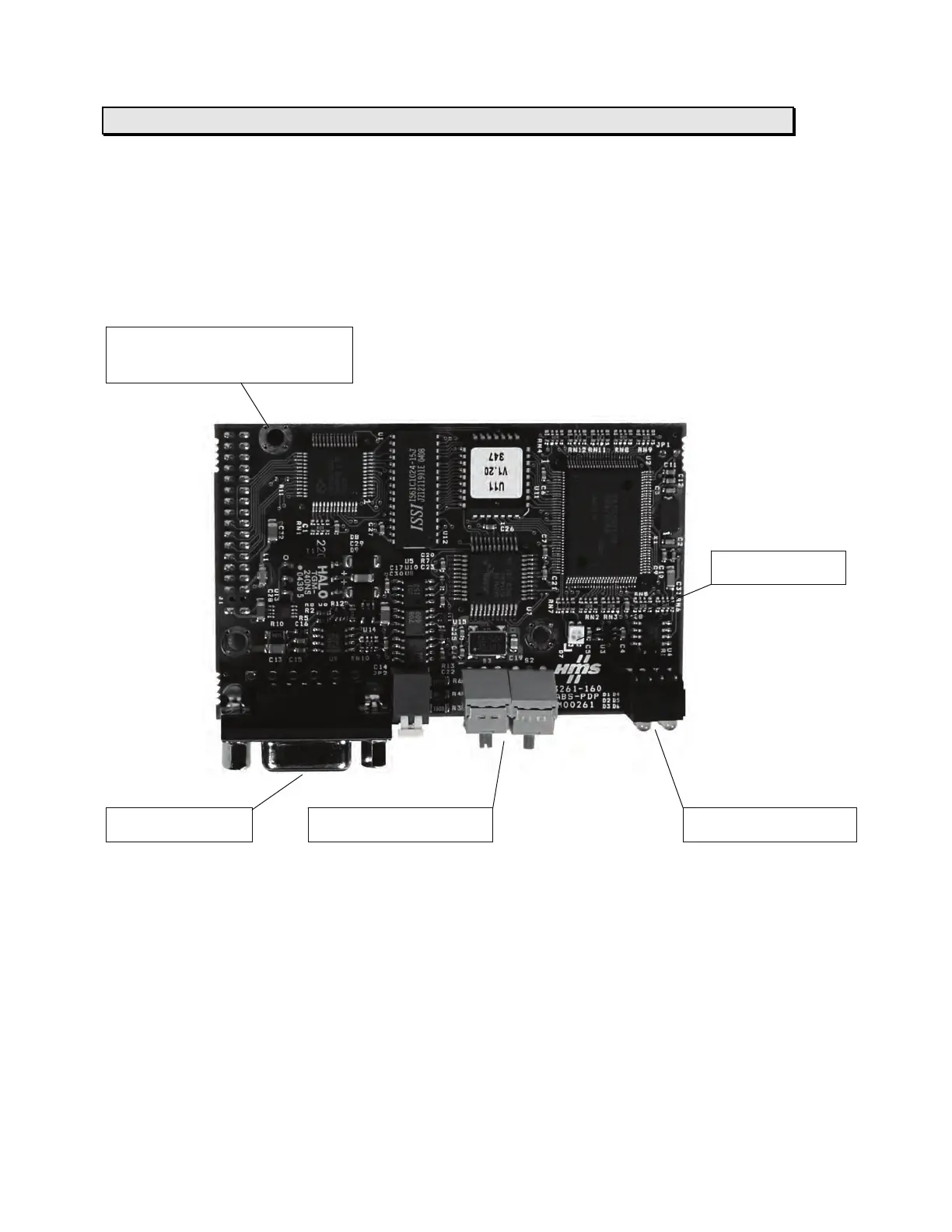

Mounting holes for stand-offs on
MICRO 4000
NET controller
Watchdog LED
Cable connector Node address switches LED status indicators
Profibus-DP is normally used in industrial automation
to transfer fast data for motor controllers,
HMIs, I/O units and other industrial equipment.
The media for Profibus-DP is a twisted pair copper cable. The baud rate for the bus is between
9.6 kbau
d and 12 Mbaud. A Profibus-DP network can include up to 126 nodes, and the total
amount of data allowed per module is 244 bytes in and 244 bytes out.
