Min/Max Parameters - Glossary:
In order to understand the purpose and function of th
e Min/Max width parameters, it is necessary
to define the various parts of standard Line and Edge patterns:

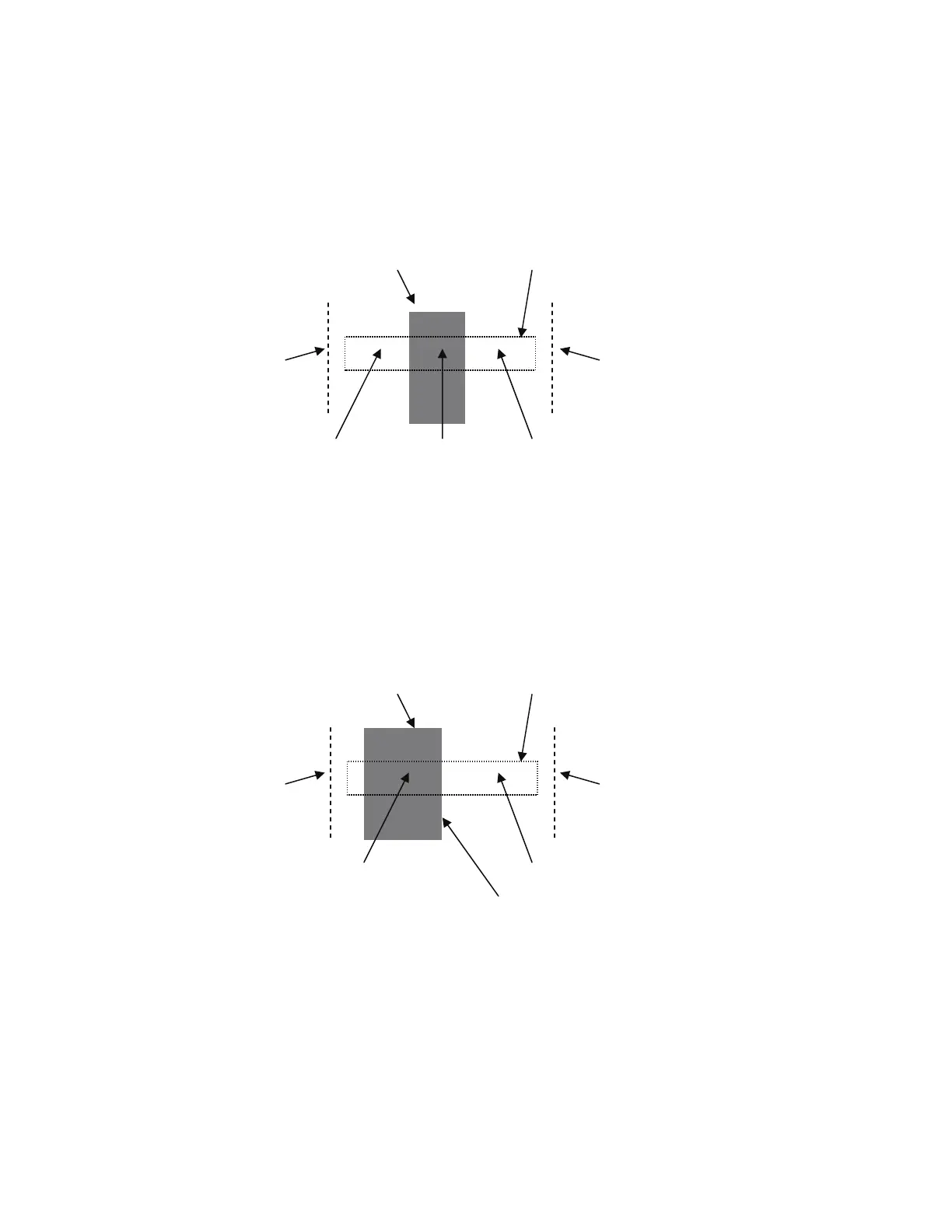

Line Patterns
Line patterns are defined by three regions. The Le
ft region is the area located to the left of the
registration line, the Center region is the registration line itself, and the Right region is the area
located to the right of the registration line. By defining the size of these regions using the Min/Max
Left, Min/Max Center, and Min/Max Right parameters, the sensor can be configured to track the
center of the registration line and ignore any other printing within its field of view.
Registration line
Left edge of web or edge
nted pattern of other pri
Right edge of web or edge
of other printed pattern
Sensor’s field of view
0.625”
15.9mm
wide
Left region Center region Right region
Edge Patterns
Edge patterns are defined by two regions. The Left regio
n is the area located to the left of the
edge to be tracked, and the Right region is the area located to the right of edge to be tracked.
[Note: Edge patterns do not have a Center region.] By defining the size of these regions using
the Min/Max Left and Min/Max Right parameters, the sensor can be configured to track the edge
of the registration stripe and ignore any other printing within its field of view.
Registration stripe
Left edge of web or edge
nted pattern of other pri
Right edge of web or edge
of other printed pattern
Sensor’s field of view
0.625”
15.9mm
wide
Left region Right region
Edge to be tracked
AccuBeam 3 Digital Line Guide Sensor
70
