Machine Maintenance Procedures 3-73

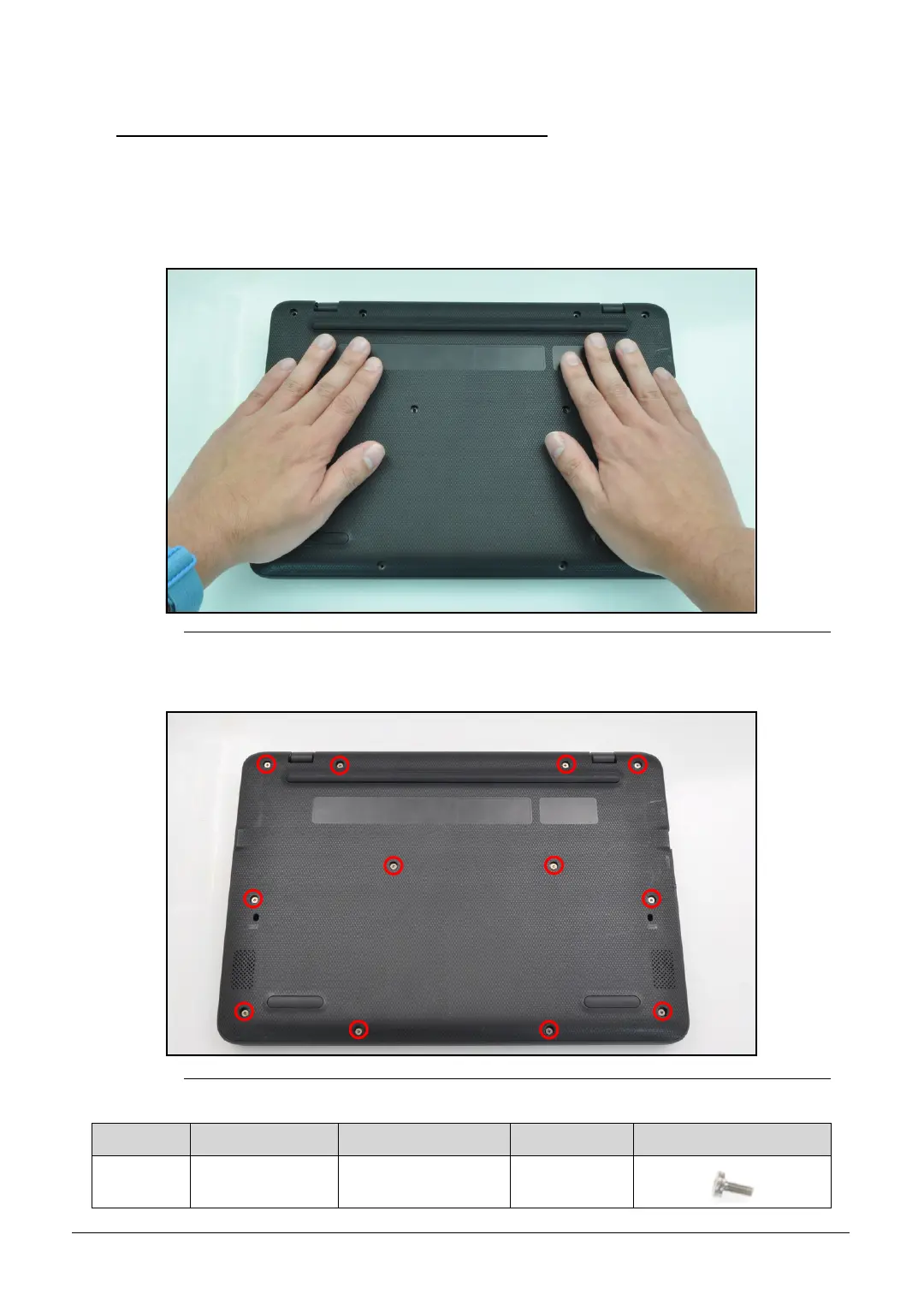

Replacing the Base Cover 0
1. Carefully place the base cover onto the top assembly. Make sure that the edges of
the base cover are aligned properly to those of the top assembly.
2. Press downward on the system to engage the tabs. Make sure all the tabs are fully
engaged (Figure 3-95).
Figure 3-95. Replacing the Base Cover
3. Install and secure twelve (12) screws to the base cover (Figure 3-96).
Figure 3-96. Base Cover Screw Location
ID Size Torque Quantity Screw Type
Red
Callout
M2.0*6.1 2.5±0.2KGF/CM 12
