Acer P1200 - Disassemble Color Wheel Module

P1100C/P1200i/P1200B
Condential
2-10
2-7 Disassemble Color
Wheel Module

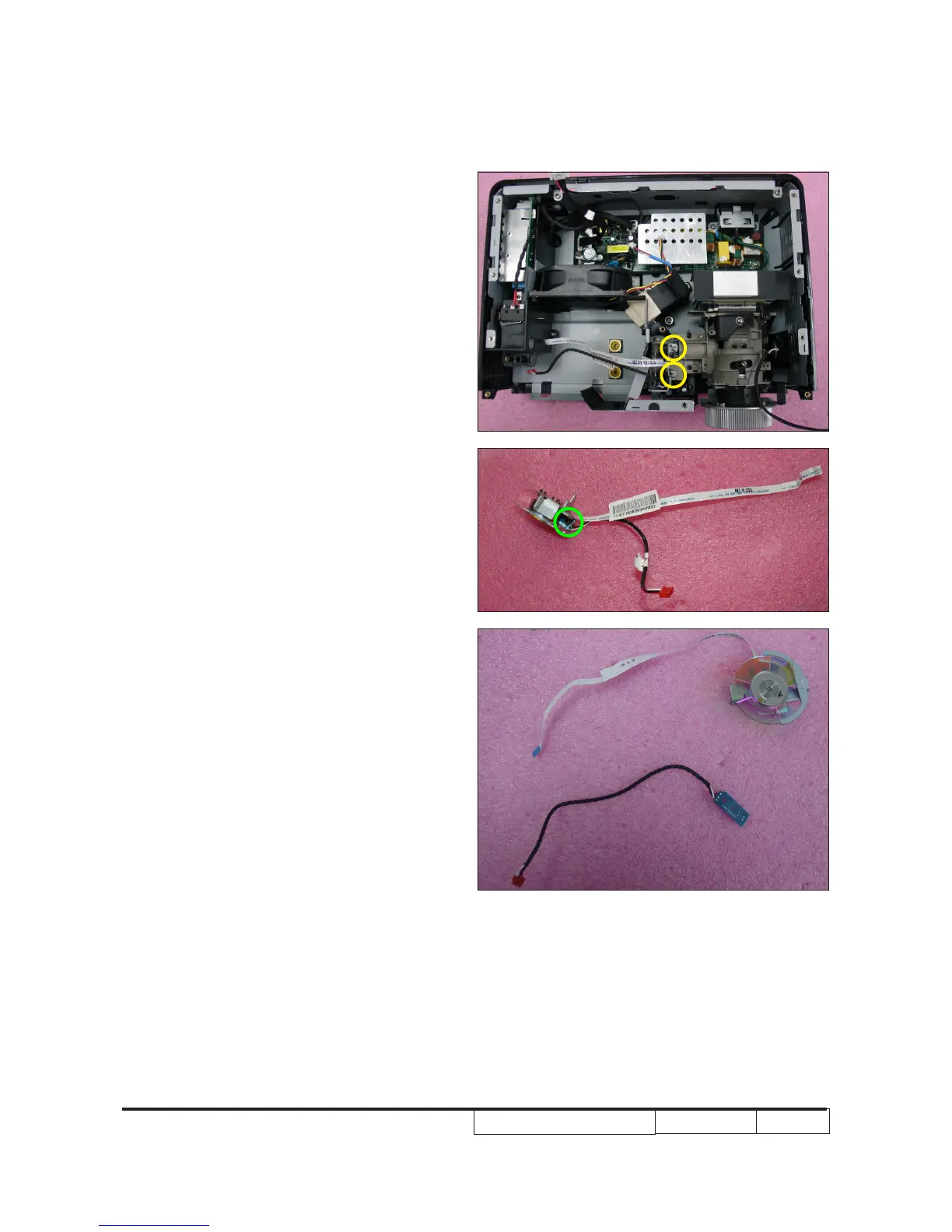

1. Unscrew 2 screws (as yellow circle).
2. Remove the Color Wheel Module. Remove the Color Wheel Module.
3. Unscrew 1 screw (as green circle).
4. Separate the Photo Sensor Board and
Color Wheel.
Note: - Avoid touching the glass parts of Color
Wheel.
