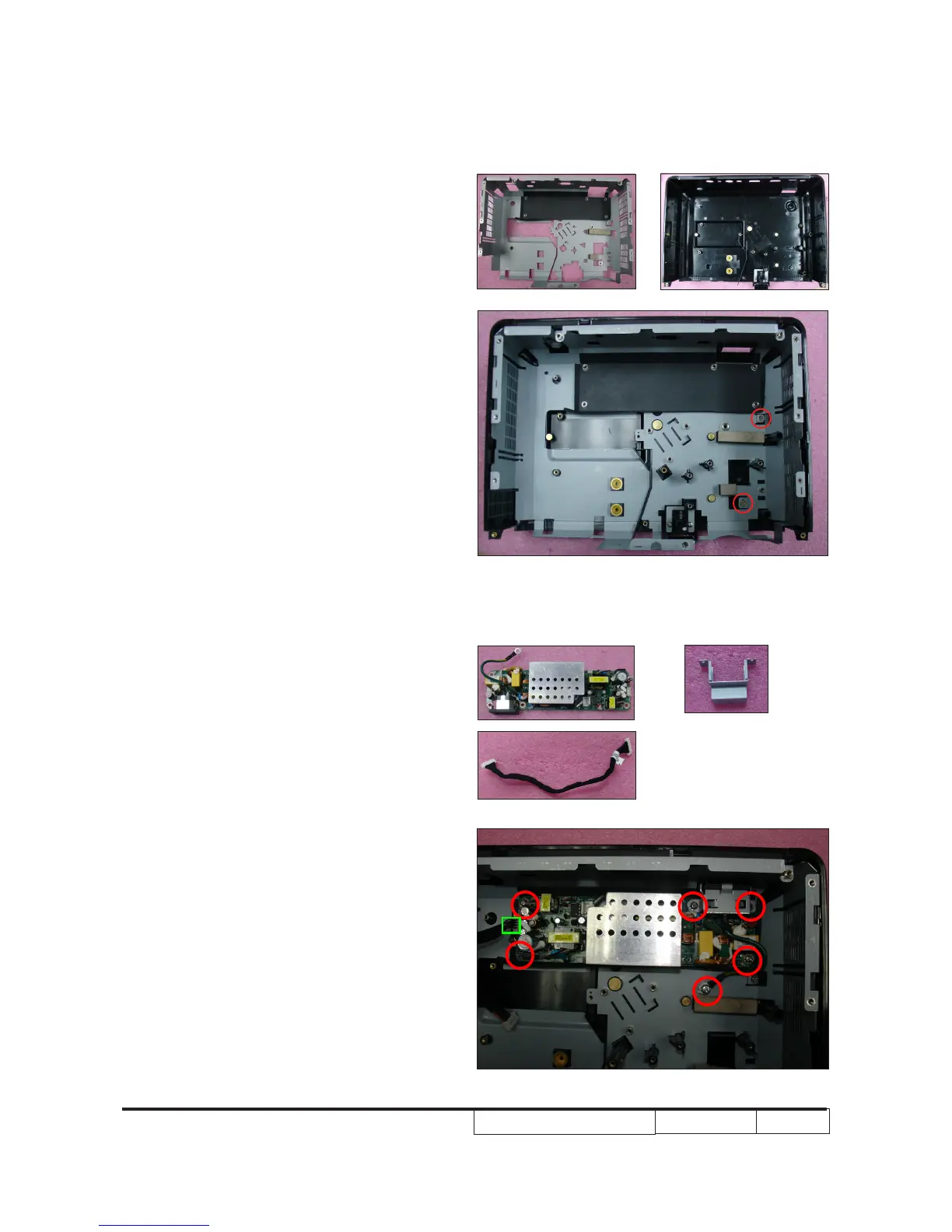

P1
100C/P1200i/P1200B
Condential
2-22
2. Screw 2 screws (as red circle) to
assemble bottom shielding.
2-19
Assemble L
VPS Module
1. Fixed the
AC Inlet Bracket on L
VPS
Module.
2. Plug 1 connector (as green square).
3. Screw 6 screws (as red circle) to
assemble the L
VPS Module.
AC Inlet Bracket
44
46
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
4
Chapter 1 Introduction
7
Highlight
7
Compatible Mode
10
Product Overview
14
Rear Side
15
Control Panel
17
Remote Control Layout
18
Getting Started
21
Chapter 2 Disassembly Process & Assembly Process
24
Equipment Needed & Product Overview
24
Disassemble Lamp Module
25
Disassemble Top Cover Module
26
Disassemble Main Board Module and IO Board
28
Disassemble Front Cover Module
32
Disassemble Color Wheel Module
33
Disassemble Engine Module
34
Disassemble DMD Chip and DMD Board
34
Disassemble System Fan Module and the Blower Module
36
Disassemble Lamp Driver Module and Interrupt Switch and Speaker
38
Disassemble LVPS Module
39
Disassemble Bottom Shielding and IO Cover Module
40
Disassemble Elevator Foot Rubber
41
Rod Adjustment
42
Re-Write System and Lamp Usage Hour
43
Assemble Elevator Foot Rubber
44
Assemble Bottom Shielding and IO Cover Module
44
Assemble LVPS Module
45
Assemble Lamp Driver Module and Interrupt Switch and Speaker
46
Assemble System Fan Module and the Blower Module
47
Assemble DMD Chip and DMD Board
49
Assemble Engine Module
50
Assemble Color Wheel Module
50
Assemble Front Cover Module
51
Assemble Keypad Board Module and Zoom Ring
55
Assemble Top Cover Module
56
Assemble Lamp Module
57
Chapter 3 Troubleshooting
59
LED Lighting Message
59
Main Procedure
60
Beep Sound
65
Chapter 4 Function Test & Alignment Procedure
66
Test Equipment Needed
66
Service Mode
66
OSD Reset
66
Test Condition
67
Test Inspection Procedure
68
PC Mode
69
PC Calibration
72
Video Performance
74
Optical Performance Measure
75
Restore Blower Speed
77
Color Wheel Index Adjustment
77
USB Port Test
78
Network Function Test
79
Wireless Function Test
83
Others
85
Chapter 5 Firmware Upgrade
86
Section 1: System Firmware Upgrade
86
Equipment Needed
86
Get into FW Download Mode
89
USB Driver Upgrade Procedure
89
Section 1: Firmware Upgrade Procedure
90
Section 2: Network Firmware Upgrade
93
Section 3: Waveform Download
96
Chapter 6 EDID Upgrade
97
EDID Introduction
97
Equipment Needed
98
Setup Procedure (VGA & HDMI)
99
EDID Key-In Procedure (VGA & HDMI)
100
Un-Lock SNID and Default Language Reset
103
Appendix A
122
Appendix B
122
Serial Number System Definition
122
PCBA Code Definition
123
Appendix C
124
Rs232 Function Command Summary Table
124
