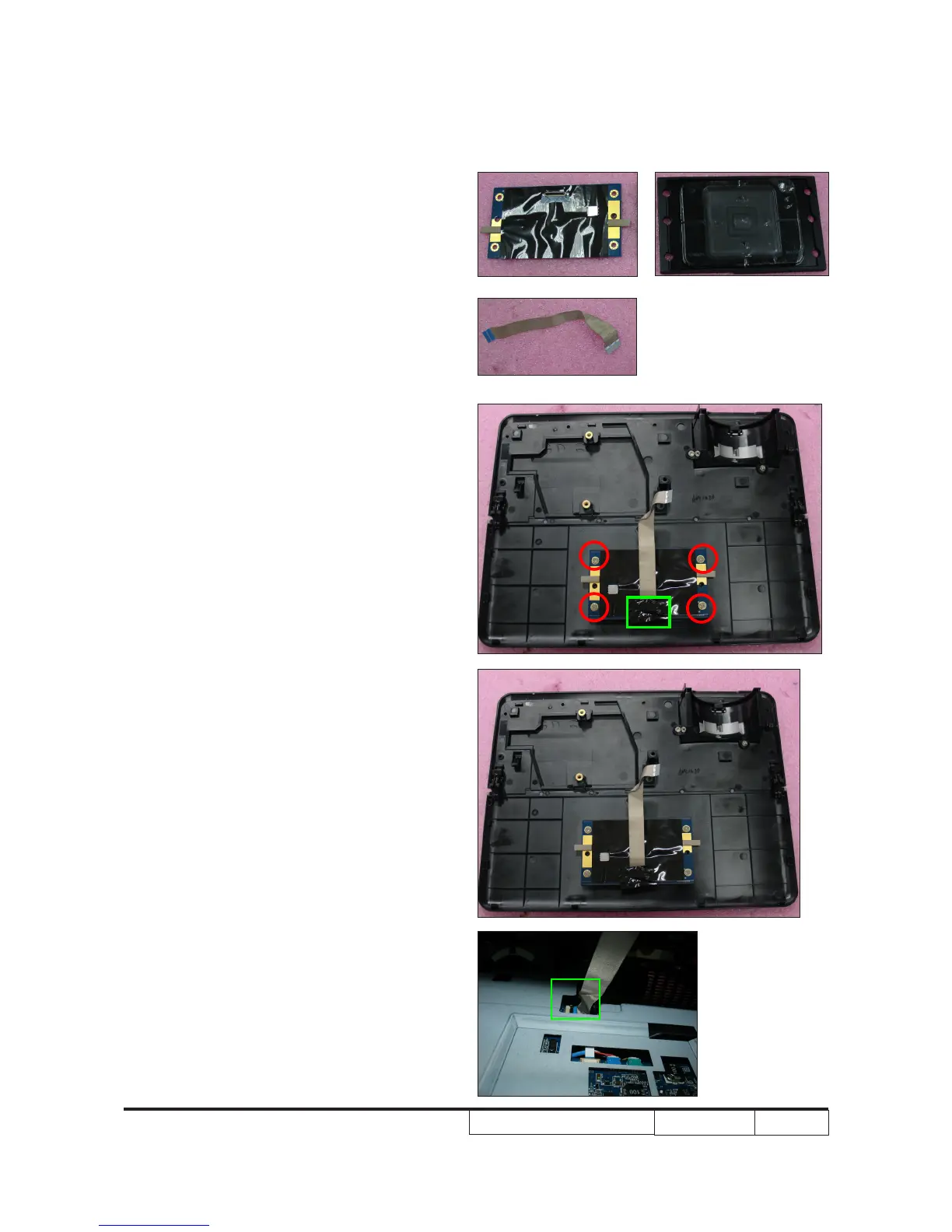

3. Assemble the keypad board and the
keypad Module.
4. Screw 4 screws (as red circle) to
assemble the Keypad Board Module.
5. Plug the FPC keypad to M/B
and stick the Maylar (as green square).
Keypad Module
FPC Cable
Keypad Board
2-28 Assemble Top Cover
Module
1. Plug the connector (as green square)
to Main Board Module.
