P1100C/P1200i/P1200B
Condential
2-17
2-13 Disassemble Bottom
Shielding and IO Cover
Module

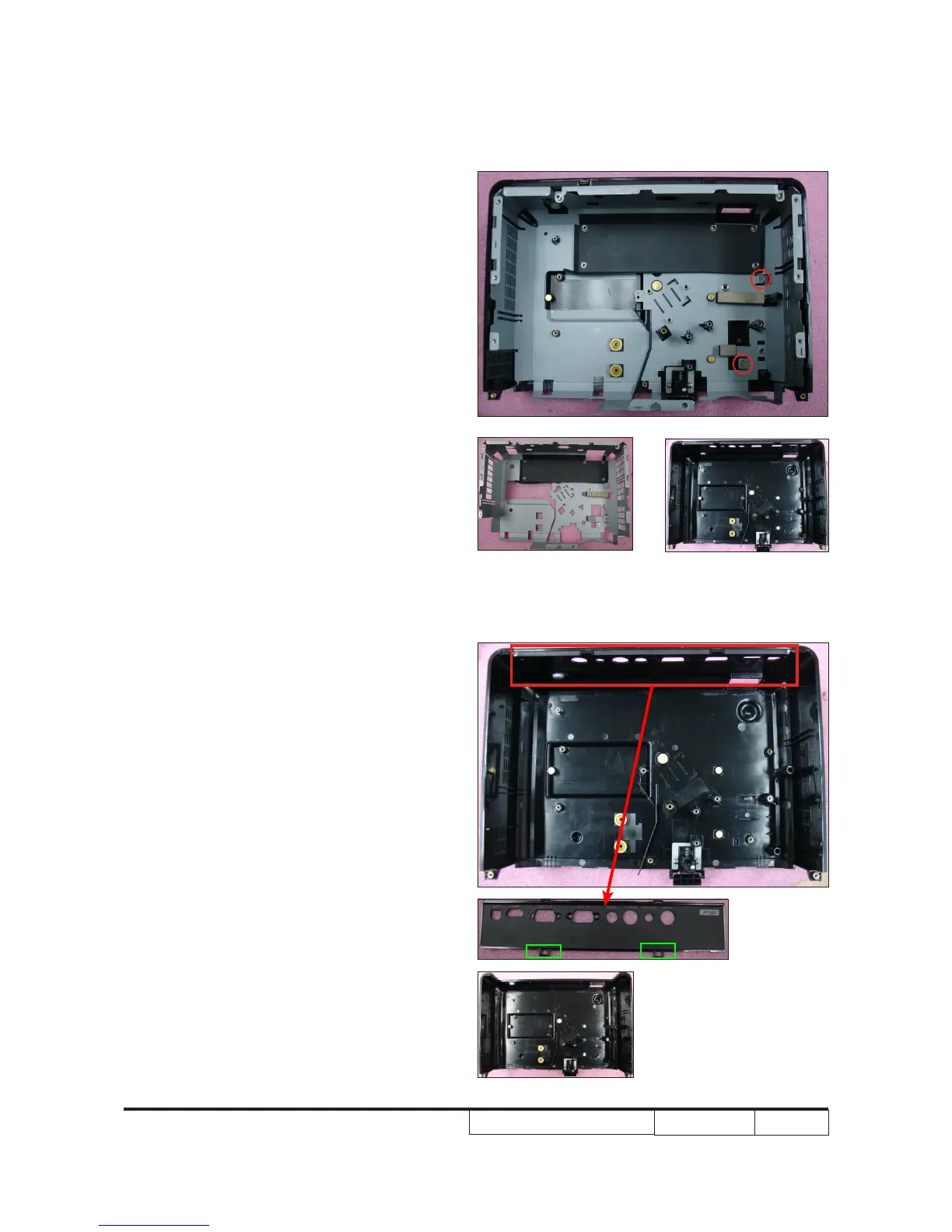

1. Unscrew 2 screws (as red circle) to
disassemble bottom shielding.
2. Unfasten 2 tenons (as green rectangle)
to disassemble IO Cover.
