3. Assemble the Lamp Driver Module and
the Lamp Driver Holder.
4. Screw 2 screws (as blue circle) and
Fasten 2 tenons (as yellow square).
5. Plug 2 connectors (as red square).
2-20 Assemble Lamp
Driver Module and
Interrupt Switch and
Speaker

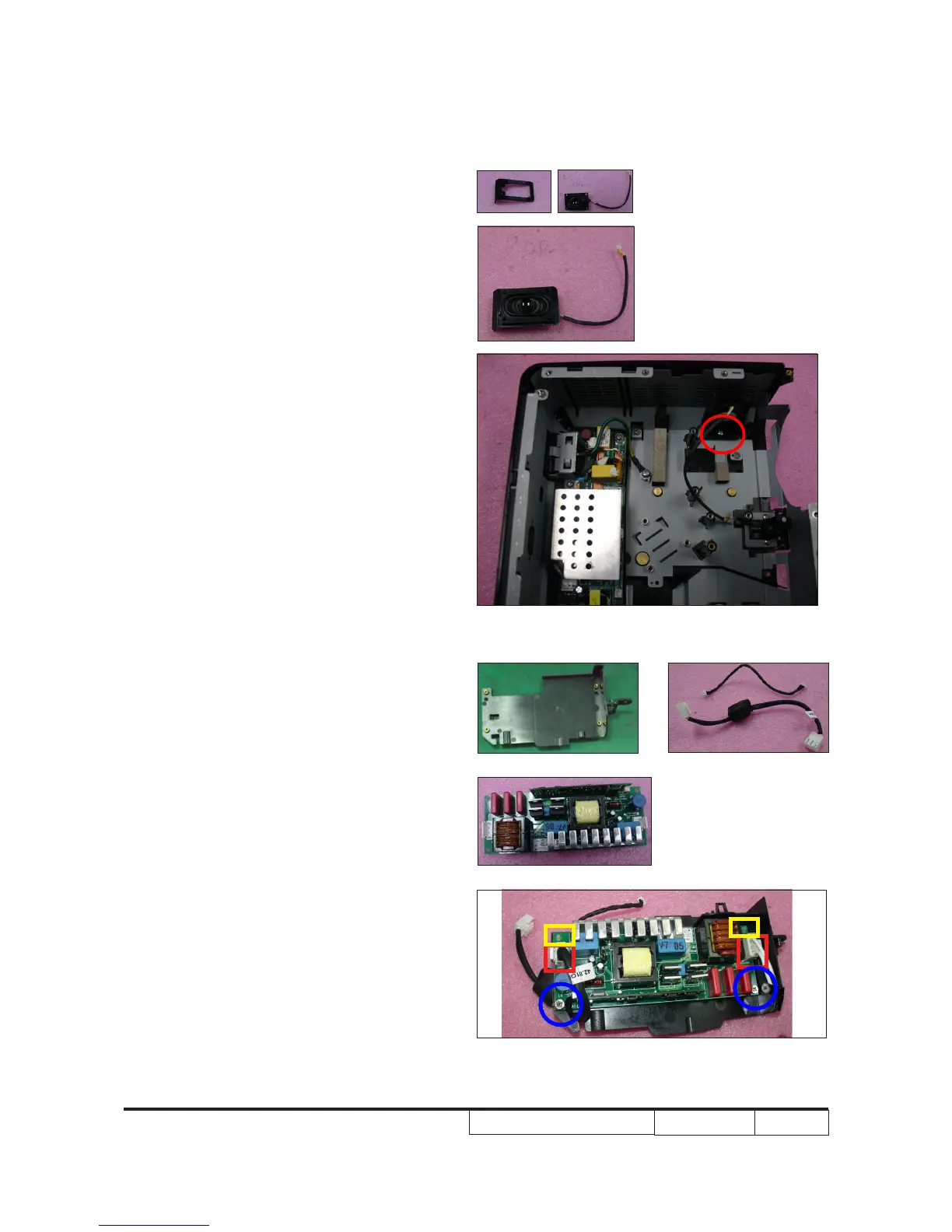

1. Assemble the Speaker and the Speaker
Bracket.
2. Screw 1 screw (as red circle) to
assemble the speaker module.
