Acer P1200 - Assemble Front Cover Module; Assemble Main Board Module and IO Board

P1100C/P1200i/P1200B
Condential
2-30
2-26 Assemble Main Board
Module and IO Board

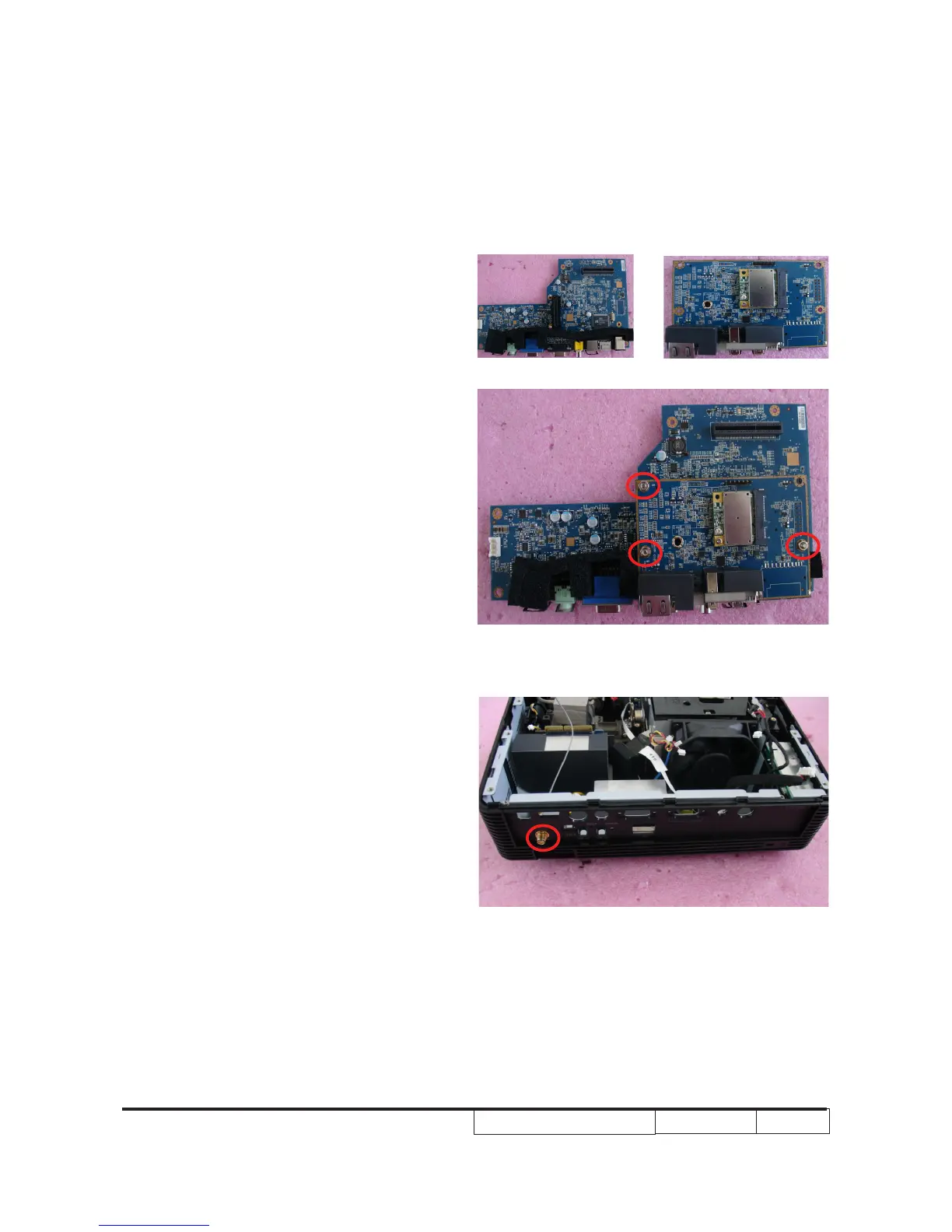

1. Screw 3 hex screws to disassembleScrew 3 hex screws to disassemble
IO Board on Main Board.
Main Board Module
IO Board
2. Screw 1 hex screw (as red circle)Screw 1 hex screw (as red circle)
