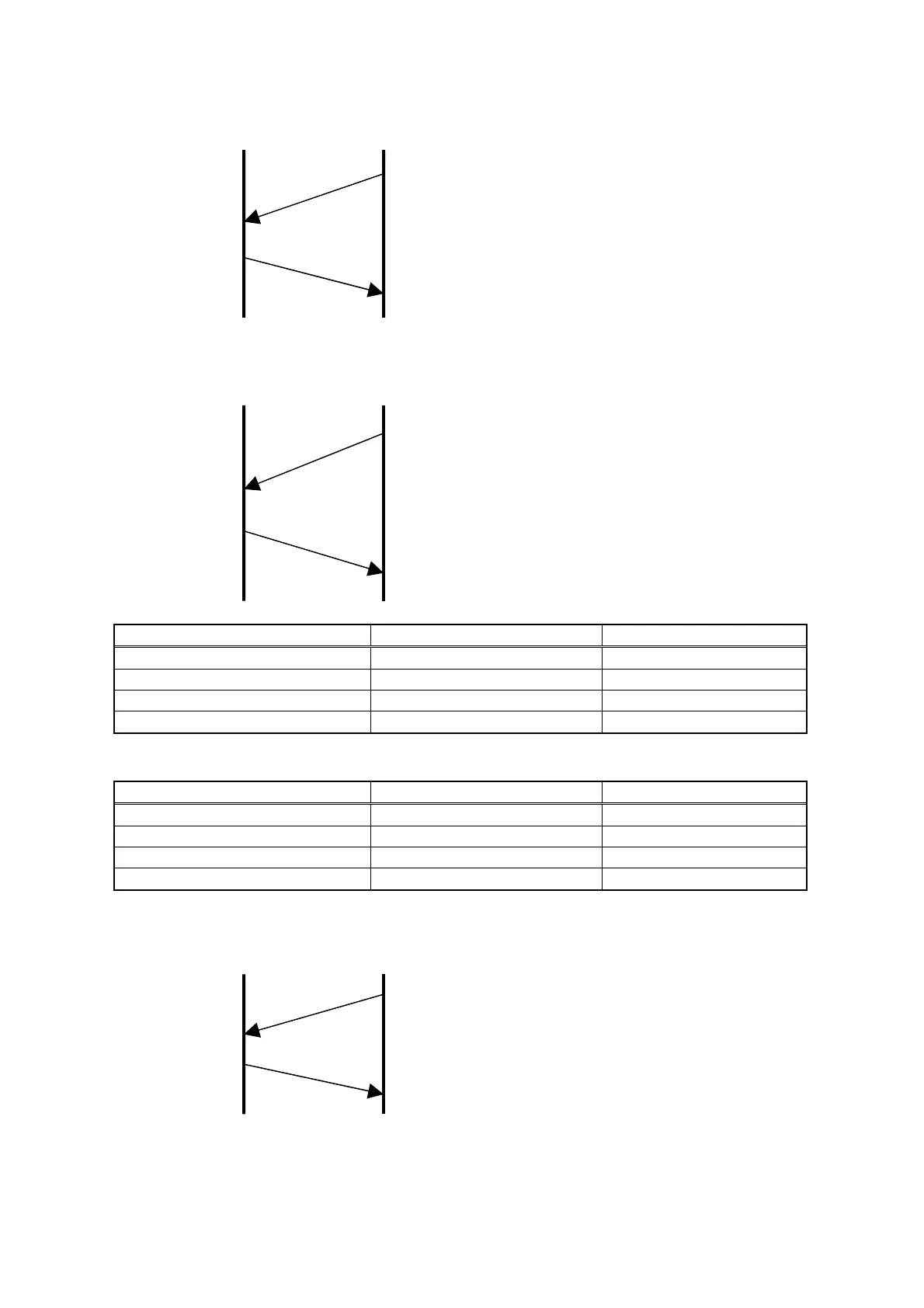

6. Communication timing
6-1 After Power On
3233 PC
Waiting
Command
6-2 Transfer Configuration file
3233 PC
Command
Answer
CH
F0nnnn f0 All CH
F1nnnn
f1
XCH
F2nnnn
f2
YCH
F3nnnn f3 ZCH
When FS（S：Select CH）command is sent and configuration of CH is acquired
Command Answer CH
F0
f1nnnn
□
f2nnnn
□
f3nnnn
All CH
F1 f1nnnn XCH
F2
f2nnnn
YCH
F3
f3nnnn
ZCH
6-3 Start measurement ／Stop measurement
3233 PC
S ：Start measurement
E ：Stop measurement
s ： Reply to start
(e) ： Reply to stop
On receiving
S
command, it starts with set-up condition
（Measuring Time：When
＊＊＊
selected, it measures up to
E
Command.）
On receiving
E
command, the measurement is terminated.
Various Command
(T，F，S，E，D，C，L，R，A，P)
Data and Answer
f
Answer
F00000：The following setup will be sent.
CH Setting ：0 (All Channel)
MeasTim ：＊＊＊
Range ：110dB
Filter ：Lv
Interval ：Single
