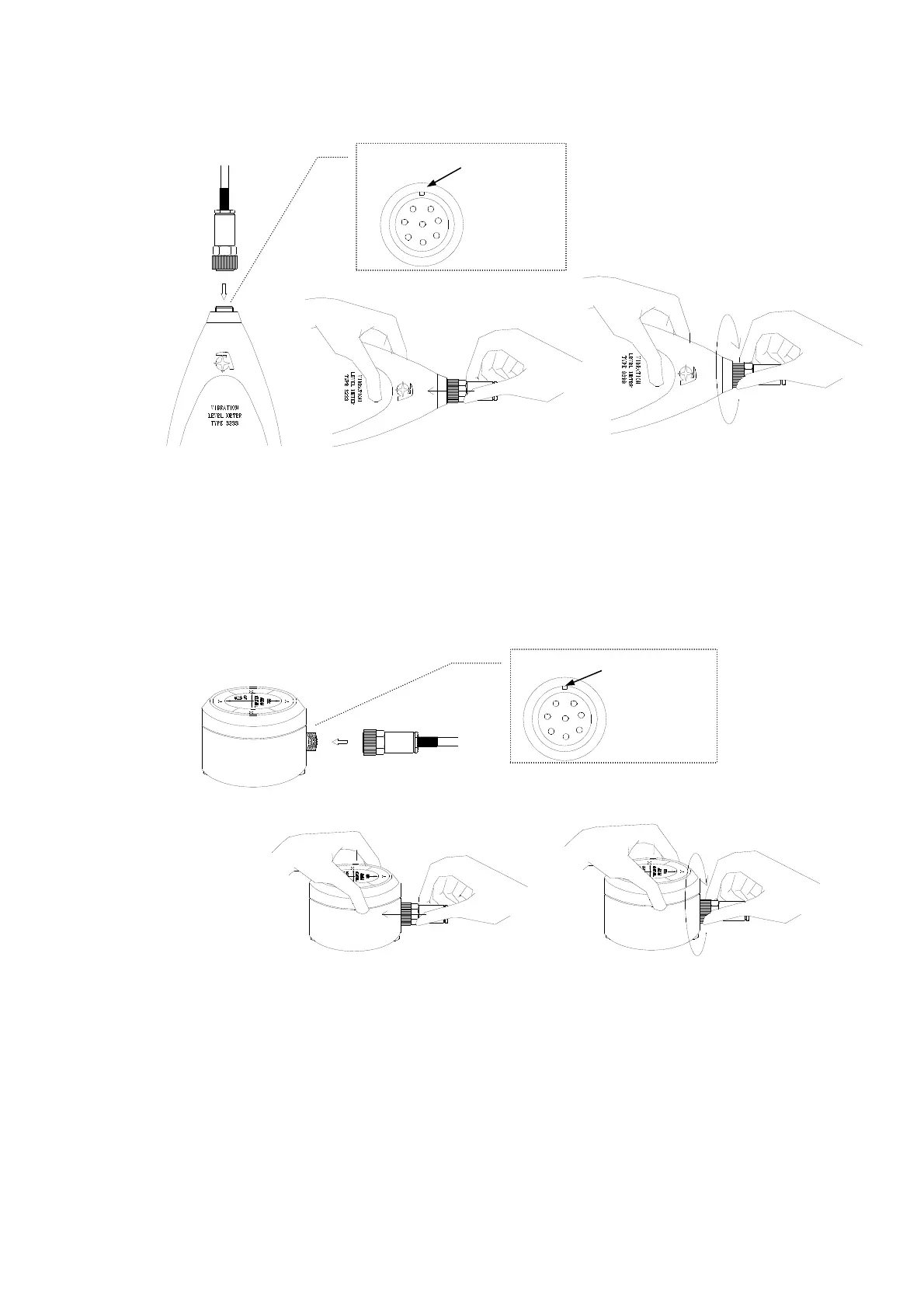

Pin Connections and How to Connect the Extension cable
1) Plug the male connector of extension cable into the connector of the body.
① Mach key groove of body’s connector with the connector of extension cable and insert.
② Push the connector of extension cable.
③ Turn the threaded retaining ring a little as shown repeat ② and ③ 5-8 times and you can
connect.
2) Attach Pick-up to the female connector of extension cable.
④ Mach key groove of body’s connector with the connector of extension cable and insert.
⑤ Push the connector of extension cable.
⑥ Turn the threaded retaining ring a little as shown repeat ⑤ and ⑥ 5-8 times and you can
connect.
Note ; Do not turn only the threaded retaining ring connecting.
It causes damage to the connector.
Mach key
Mach key
