WORKING WITH THE CONTROL UNIT 5-13
SB1391 Hardware and Setup Guide - Document revision no. 1.14
. . . click here.
Either use the arrow keys to move the selection
point here and then press Enter, or . . .

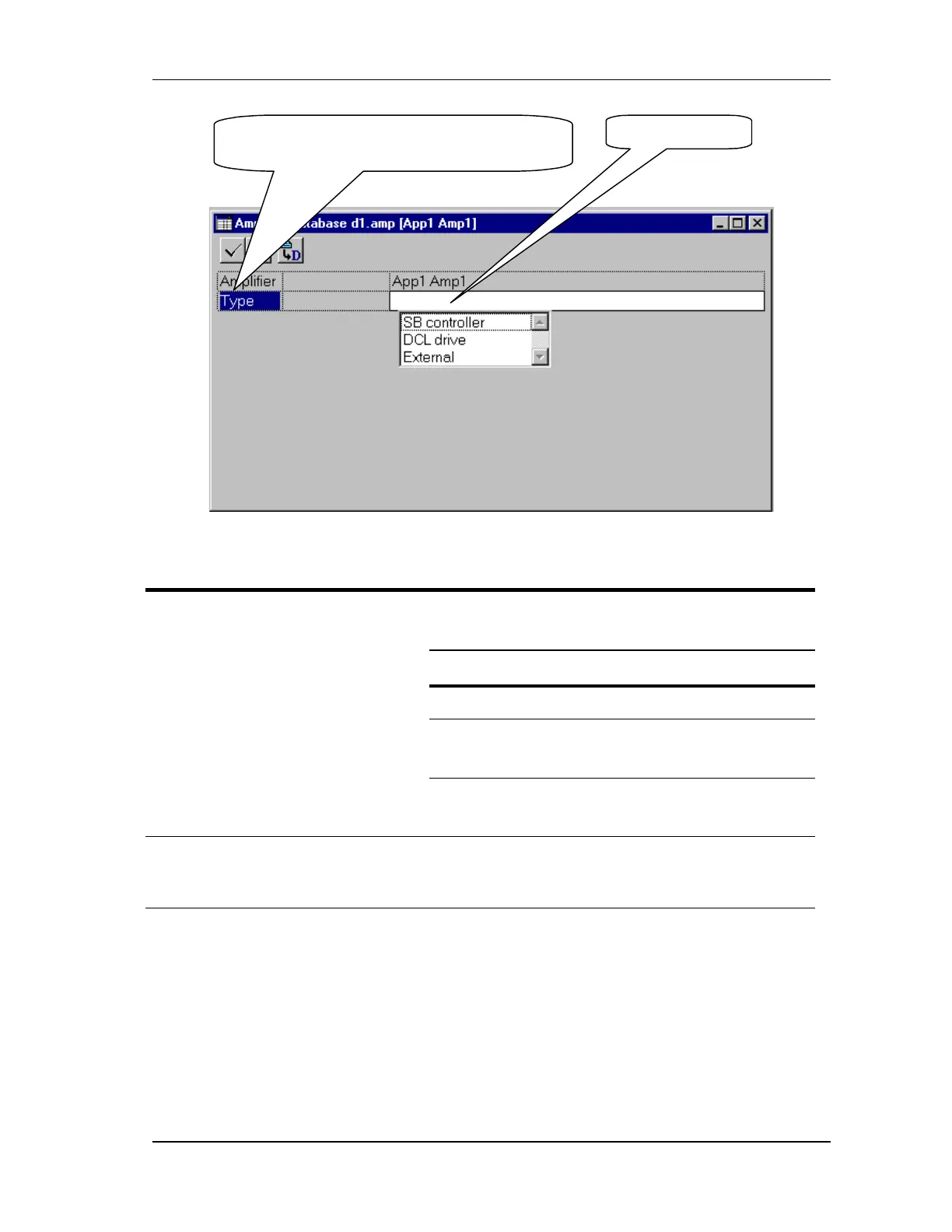

FIGURE 5-10 Opening the amplifier list
Action Effect of action
The list of amplifier types opens.
Select this type when using a/an
SB controller
SB10XX control module
DCL drive
DCL10X1 digital
amplifier
4. Open the Type list by either
moving the selection point with
the arrow keys to the Type box
label and then pressing Enter or
by clicking in the list (last
column), as shown in FIGURE 5-
10.
External
third-party amplifier
5. Select the amplifier type by
clicking on it, then press
ENTER.
The specification fields for the selected amplifier
type appear, as shown in FIGURE 5-11. (The fields
will vary depending on the motor type).
