WORKING WITH THE CONTROL UNIT 5-35
SB1391 Hardware and Setup Guide - Document revision no. 1.14
Action Effect of action

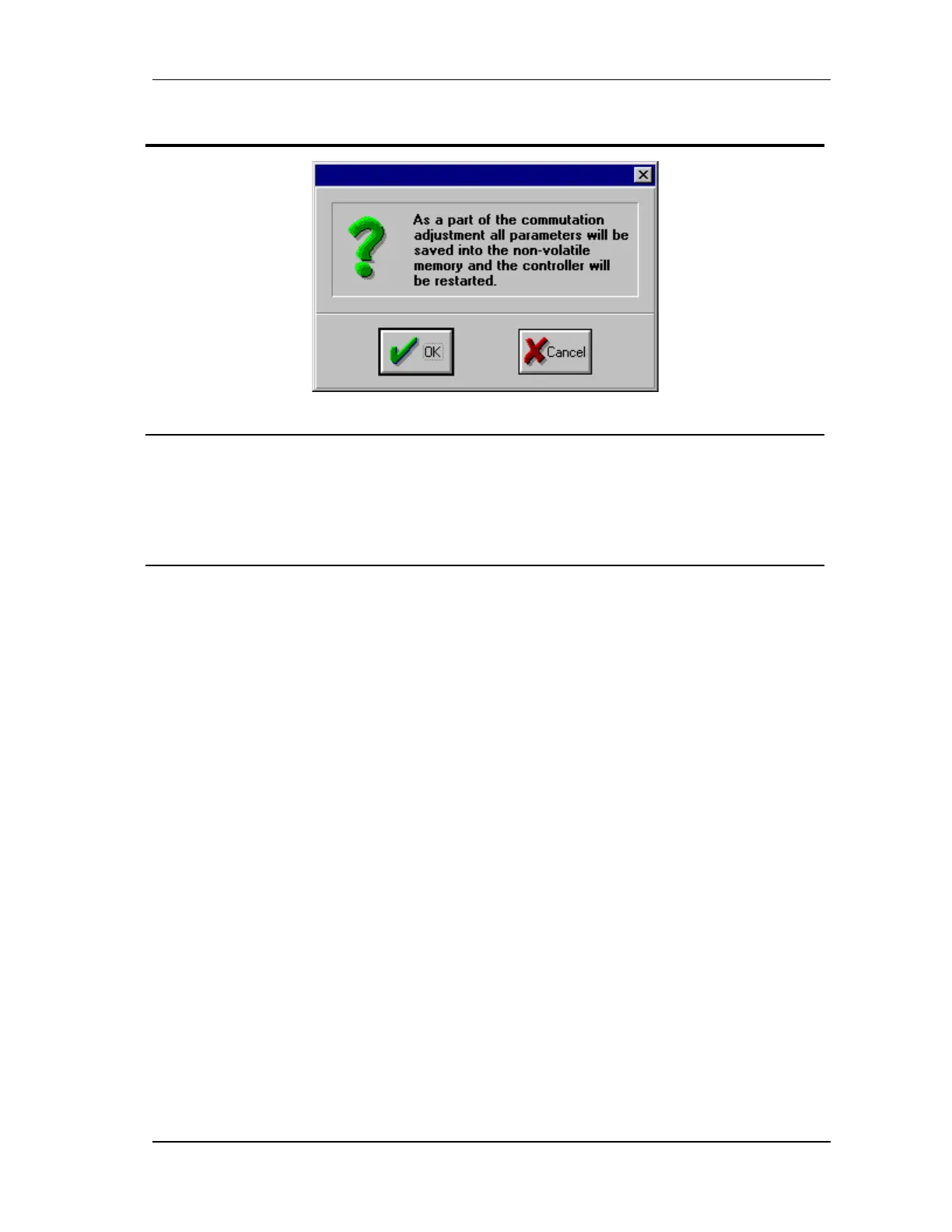

FIGURE 5-33 Prompt to write parameters to nonvolatile memory
6. Click OK. The values of the control unit's parameters are saved
to the control unit's nonvolatile memory. The
Adjuster initiates commutation adjustment. The
process can take up to several minutes. When the
process is complete, the status message should read
"Setup finished successfully."
