36

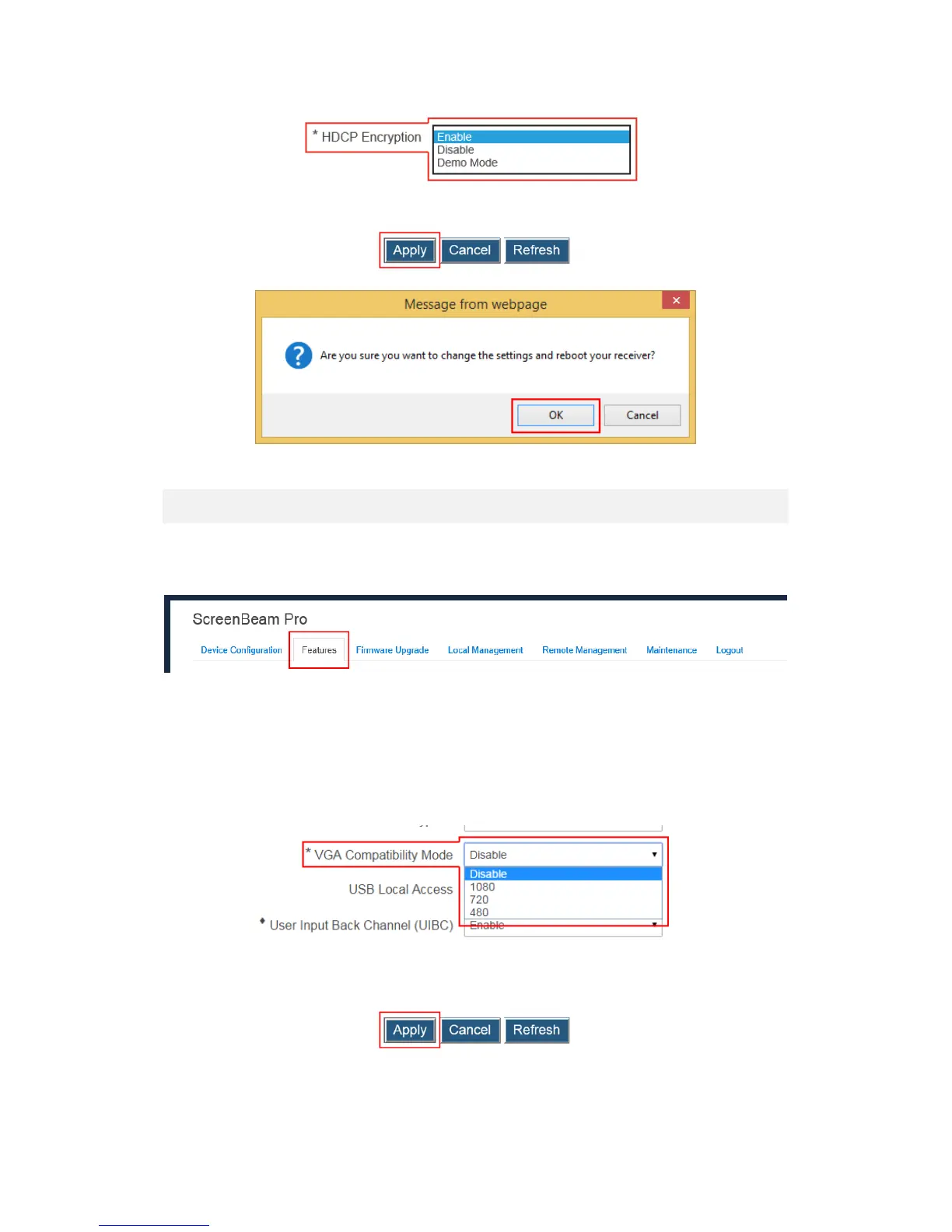

3. Click the Apply button, and then click OK on the pop-up message box to confirm.
Note: The receiver’s new HDCP encryption mode takes effect after the reboot.
5.3.8. Setting up the VGA Compatibility Mode
Follow the procedure below to select a VGA compatibility mode:
1. Go to the Features tab page by clicking the Features tab.
2. Go to the VGA Compatibility Mode line, and select the desired option in the VGA
Compatibility Mode box. There are three options: Disable, 1080, 720, and 480.
Disable: The video output is in consistence with the source device.
1080: The video output is set to 1080p or 1080i, depending on the display device.
720: The video output is set to 720p or 720i, depending on the display device.
480: The video output is set to 480p or 480i, depending on the display device.
Note: The VGA compatibility mode is not available when HDMI-CEC is enabled.
3. Click the Apply button, and then click OK on the pop-up message box to confirm.
