7451A/7461A/7461P Digital Multimeter Operation Manual
4.1.1 Front Panel Description
4-2
4.1.1.1 Display Section

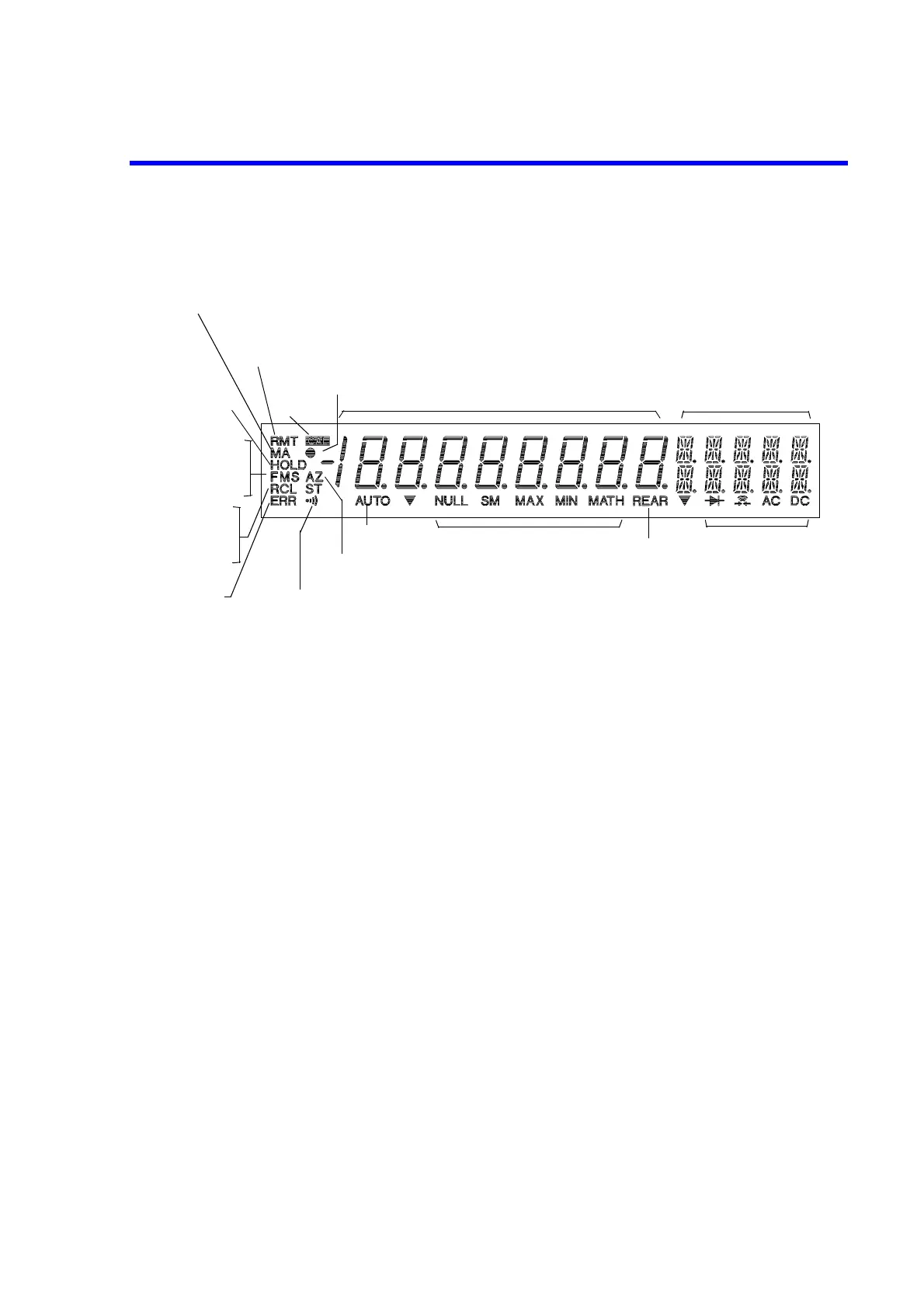

Figure 4-2 Display Section Description
4.1.1.2 Power Switch
1. POWER switch Pressing the power switch turns on the power and the power is
supplied to this instrument.
Re-pressing the power switch turns off the power and the power
is shut down.
4.1.1.3 Measurement Function Keys
1. DCV Selects the DC voltage measurement (DCV).
2. ACV Selects the AC voltage measurement (ACV). The AC filter can be
selected from FAST, MED, and SLOW.
3. 2W/4W Selects the resistance measurement. Either 2W or 4W can be
selected alternately.
4. DCI Selects the DC current measurement (DCI).
5. ACI Selects the AC current measurement (ACI). The AC filter can be
selected from FAST, MED, and SLOW.
6. FREQ Selects the frequency measurement (FREQ)
7. Bch (SHIFT+DCV) Selects the DC voltage measurement (DCV-Bch).
8. AC + DC (SHIFT + ACV) Selects the AC+DC coupling or AC coupling in the AC voltage
measurement.
Remote control
GPIB address (My Address)
Sampling hold
Sampling rate setting
F: Fast
M: Medium
S: Slow
Buzzer indicator
Sampling indicator
ST: Store setting into
internal memory
Calibration
mode
Calculation settings
Auto-range
Function settings
Numerical value display section
Selecting the rear input
RCL:Recall setting
from internal
memory
Auto-zero
setting
Error queue
Unit display section
