9
Accord xpC - July, 2001
The Accord xpC enclosure is supplied without a Tamper Actuator in place. The panel
will not function without a Tamper, it is therefore, the installer’s responsibility to correctly
attach the Tamper Actuator. The Tamper Actuator consists of a spring, which is supplied
in the Accord xpC Installation Kit, and one of the Knockout Tamper Posts, see figure
2.1. The installer should knockout one of these Tamper Posts from the enclosure base
and ensure the spring is securely attached to the short end of the Tamper Post, before
fitting the opposite end of the spring to the Tamper Switch (SW1) on the PCB (see
below).
1 Amp
0.5 Amp
0.5 Amp
AUX KPAD TRIG LS
1
5
AC
AC
BATTERY
+
1
4
A B PHONE
EE Volume
+
VADJ
SW 1
BELL
STRB
BTMP
ZONE
TAMP
1
ZONE
2
ZONE
7
ZONE
6
ZONE
5
ZONE
4
ZONE
3
ZONE
8
ZONE
BELL
AUX
BATT
T1
RL1
S1
X1
IC12
1
5
LED
+
_
_
_
R
Tamper
Post
Tamper
Spring

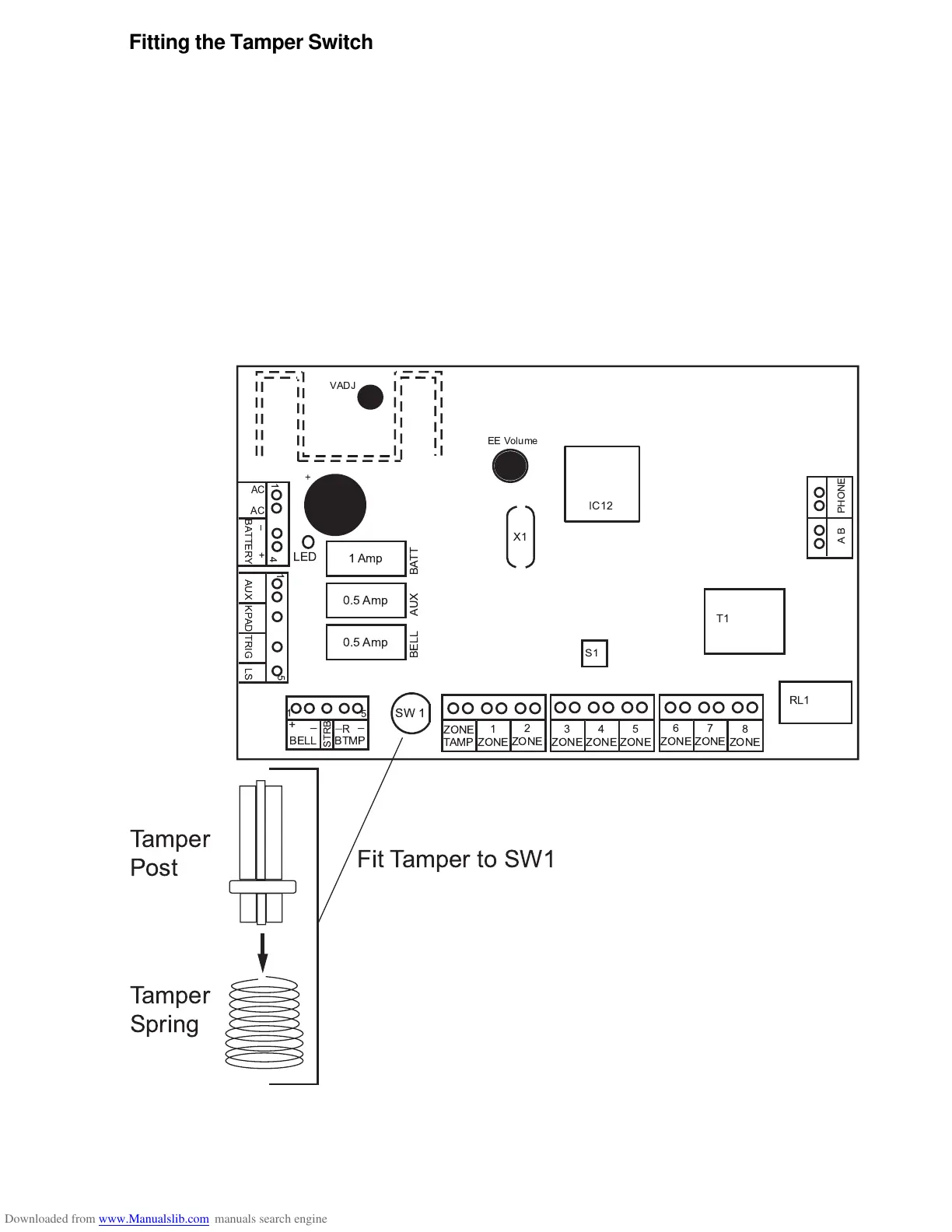

Fit Tamper to SW1
Fitting the Tamper Switch
