ADT ACCORD XPC User Manual

10
Table 2.1 LCD Keypad Wiring
Note: Up to four keypads can be connected
to the system. Keypads can be wired
to the control panel independently,
in series, or in a star configuration.
Both LED and LCD keypads can be
connected to the same panel.
lenaPdapyeK
+xuAev+
–xuAev–
DAP'Kdapk
K
noc
Knockoutout
Knockout
EV8-2000
EV8-2000
>PC+ABS FR<>PC+ABS
FR<
>PC+ABS FR<>PC+ABS
FR<
Knock
Knock
Knockout
Knockout
Knockout
Holes
Mounting
Hole
Tamper Tab
Screw Hole
Knockout
Hole
Retained
Fastening Screw
Mounting
Hole

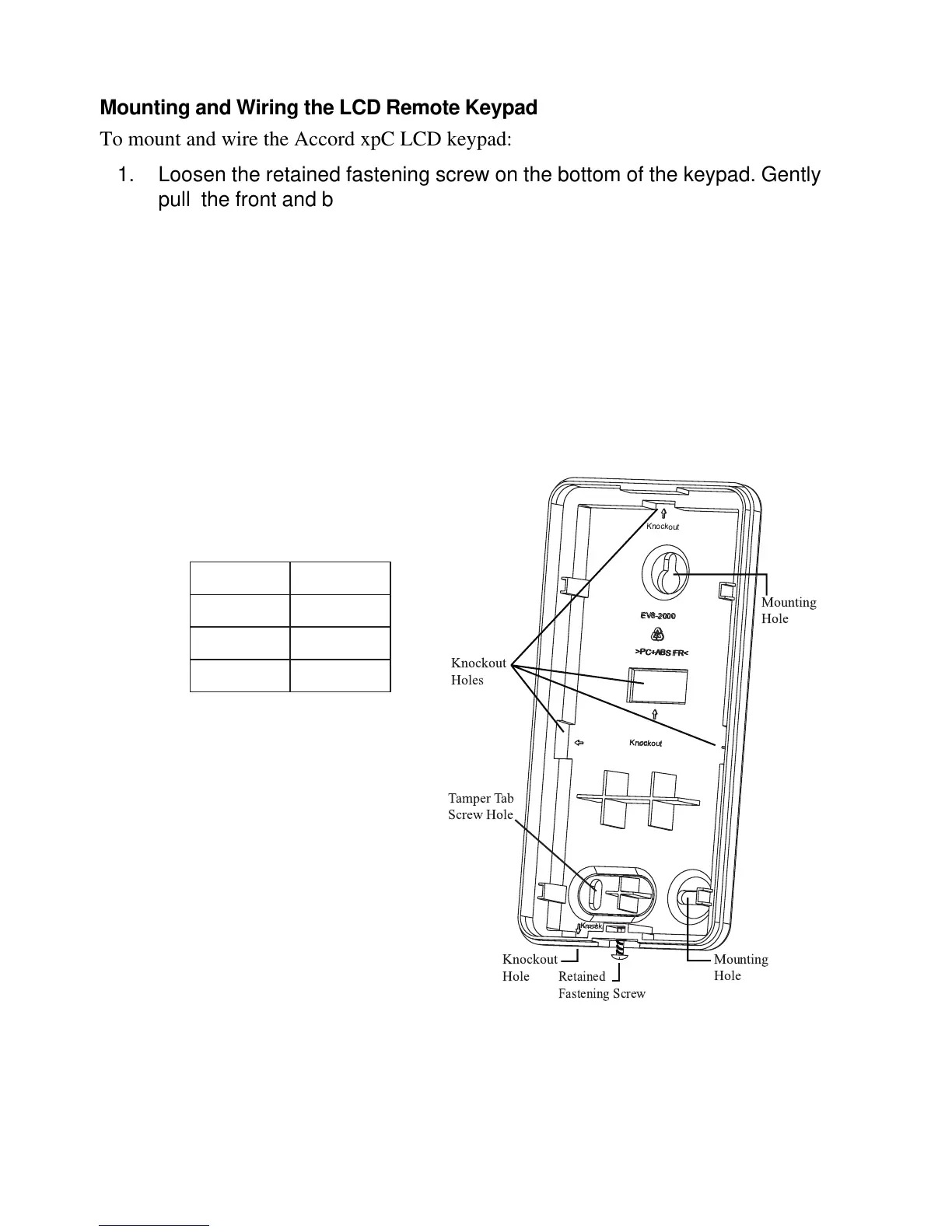

Mounting and Wiring the LCD Remote Keypad
To mount and wire the Accord xpC LCD keypad:
1. Loosen the retained fastening screw on the bottom of the keypad. Gently
pull the front and back keypad casing apart.
2. Route the wiring from the control panel through any of the five knockout
holes on the back case of the keypad. Tip: Use a knife to help dislodge
knockouts.
4. Securely mount the back case to a wall or electrical box via the mounting
holes. Ensure The Tamper Tab is securely screwed down.
3. The remote keypad PCB should be wired to the control panel PCB as
outlined in Table 2.1 LED/LCD Keypad Wiring.
5. Re-attach the keypad front to the back case, aligning the hinges on the
top. Gently apply pressure to the keypad front and tighten the retained
fastening screw on the bottom.
Connecting Keypads, Sounders and a Speaker to the Accord XPC
Fig 2.4 Accord xpC LCD Keypad
