User Manual of TV5600-B01 Series Dispensing Control System
112
Wire No.
Definition
Function
1
GND
Negative pole ofclosed loop feedback power
supply
2
5V
Positive pole ofclosed loop feedback power
supply
3
EA2-
A-phase negative pole ofY-axis closed loop
feedback signal
4
EA2+
A-phase positive pole ofY-axis closed loop
feedback signal
5
EB2-
B-phase negative pole ofY-axis closed loop
feedback signal
6
EB2+
B-phase positive pole ofY-axis closed loop
feedback signal
7
NC
NC
8
NC
NC
9
NC
NC
10
NC
NC

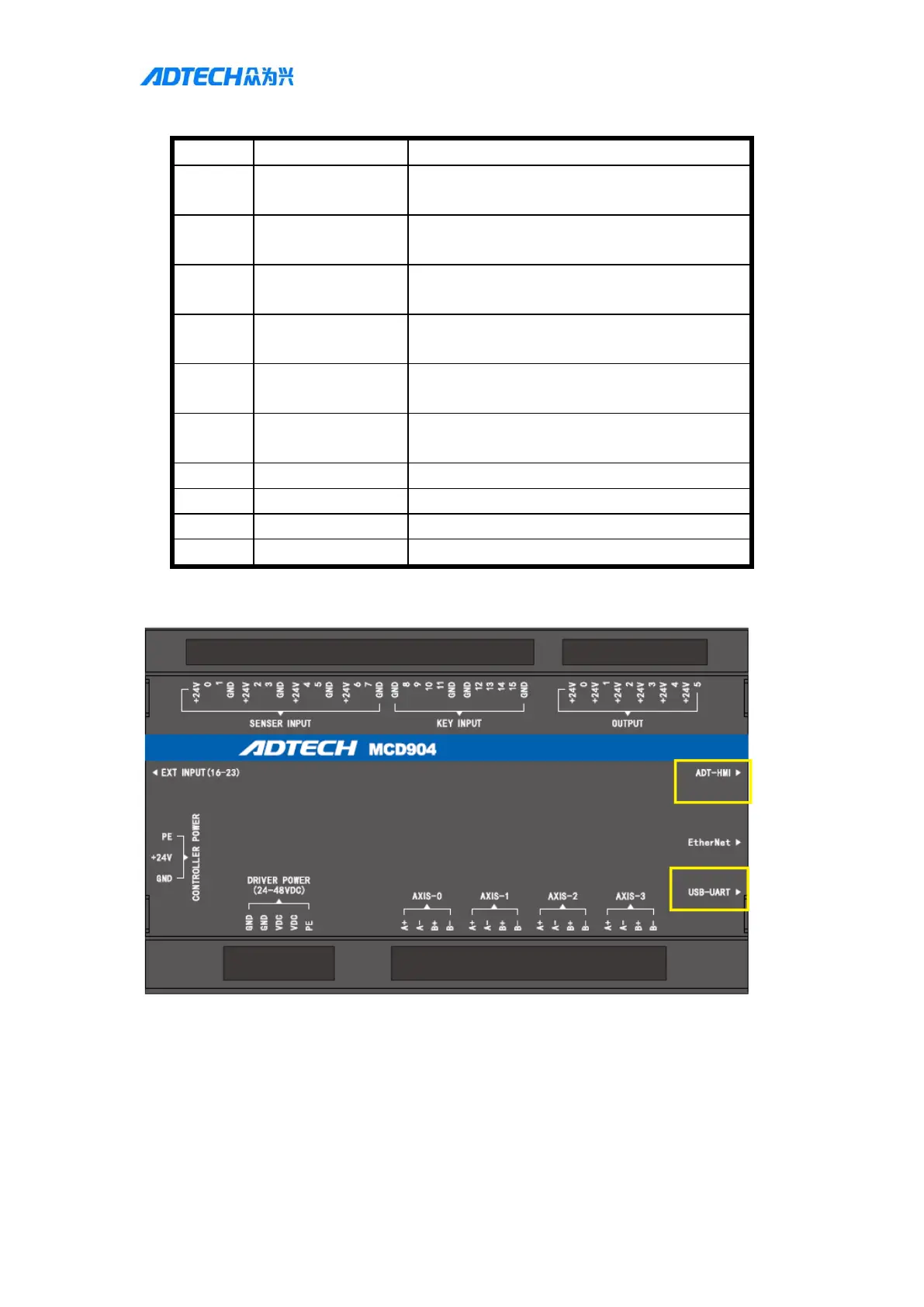

4.ADT-HMI and USB-UART pin wiring instructions
MCD904 HMI Handheld Box Port and RS232 Serial Port
