User Manual of TV5600-B01 Series Dispensing Control System
113

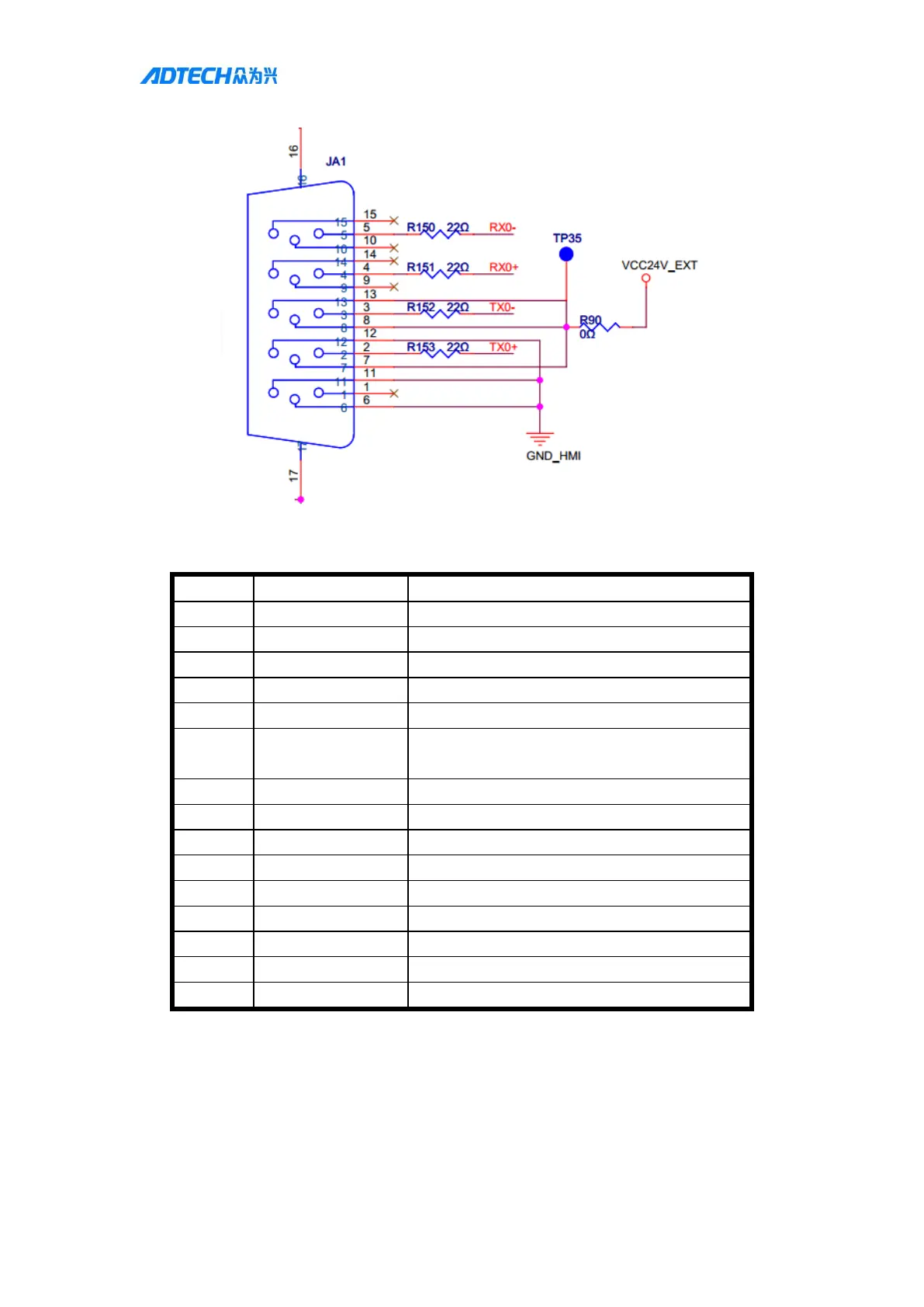

ADT-HMI is used to connect the handheld box TV5310
Wire No.
Definition
Function
1
NC
NC
2
HAND_TX1+
Controller sends signal 1+
3
HAND_TX1-
Controller sends signal 1-
4
HAND_RX1+
Controller receives signal 1+
5
HAND_RX1-
Controller receives signal 1-
6
GND_HMI
Hand-held box power supply ground
7
VCC24V_EXT
Handheld box power supply 24V
8
VCC24V_EXT
Handheld box power supply 24V
9
NC
NC
10
NC
Protective earth
11
GND_HMI
Hand-held box power supply ground
12
GND_HMI
Hand-held box power supply ground
13
VCC24V_EXT
Handheld box power supply 24V
14
NC
NC
15
NC
NC
RS232 serial port
