User Manual of TV5600-B01 Series Dispensing Control System

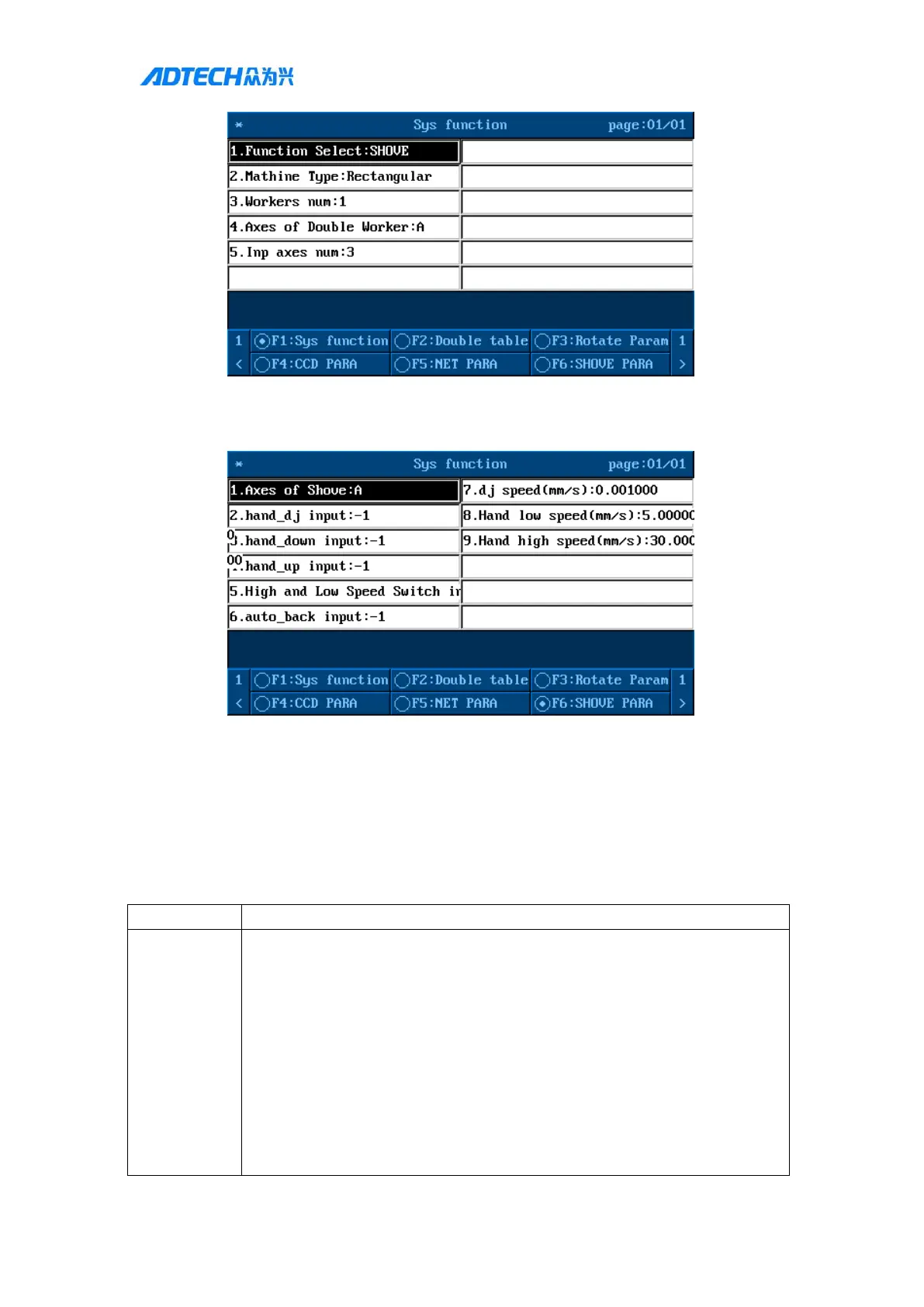

Set the number of interpolation axes to 4, which is the extrusion function.
Press F6 to select the extrusion axis parameter.
First set the extrusion axis number. The A-axis is used as the extrusion axis by default, and the X, Y,
used as the extrusion axis. After setting these parameters, the setting of the
extrusion function is basically completed. The parameter configuration of the extrusion axis is
described below.
Extrusion
parameter
configuration
1) Axes of Shove: Shaft number used for extruding shaft
2) hand_dj input: Manual drippingbutton, After the button is pressed, the
configured glue gun is opened first, and then the glue axis is extruded at the
dripping speed. -1 means not used.
3) hand_down input: Downward manual button, When the button is pressed,
the extrusion axis moves downward (coordinates increase), the speed is manual
low speed, and the speed switching button can be used to change the manual
speed.
4) hand_up input: Upward manual button, When the button is pressed, the
