3. Select the Configure button.
4. Choose the following settings for the Configure menu and click on
the OK button.
Bits per second See user’s guide.
Data bits 8
Parity None
Stop bits 1
Flow control None
5. Select the Settings menu.
6. Chose TTY for the Emulation option.
7. Select ASCII setup.
8. Set the Sending option to Echo Typed Characters Locally.
9. Set the Receiving option to Wrap Lines that Exceed Terminal Width.
You should at this point see all instrument output in the Hyperterminal
window of your computer screen.
106

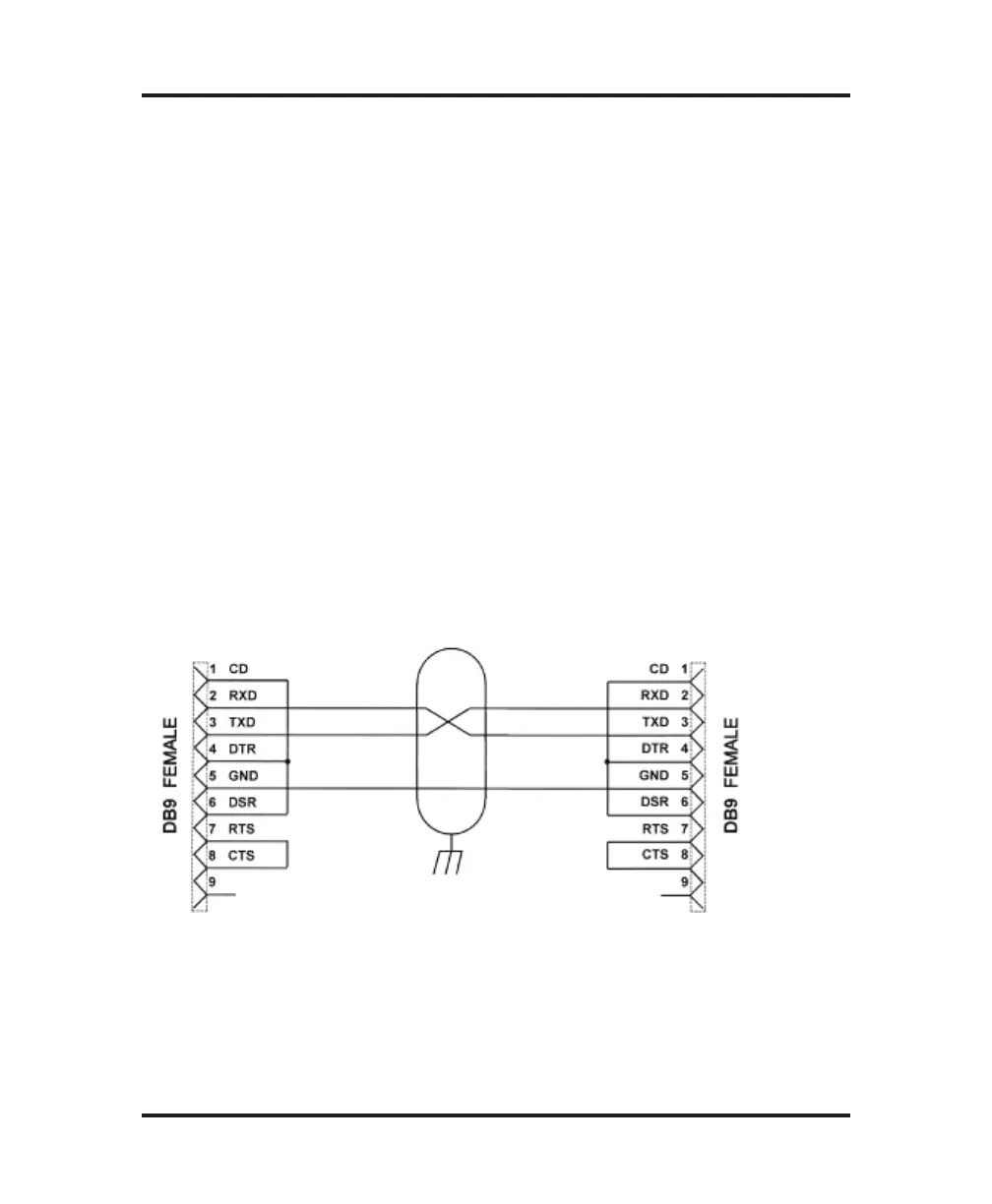

Null Modem Cable
Shield connects
to metalized
connector hous-
ing at both ends.
Figure 13: RS-232 External Cable
The Advanced
®
Model 4C3 User’s Guide
