OIW EX SERIES-SIDE STREAM
OPERATION MANUAL
Rev. 004 MAY 2015
2.3.3.5 – Phase 4 – Settling
A short setting period is required after homogenisation has finished allowing any gases to dissipate and create a more
stable suspension in the sample chamber. This setting period is also configurable, from the ‘Schedule Configuration’
menu, to optimize the settling time for the given oil type.
Status Display during Settling:
During this phase ‘SETTLING’ will appear in the status display with a countdown timer to indicate the remaining settling
time, as shown below.

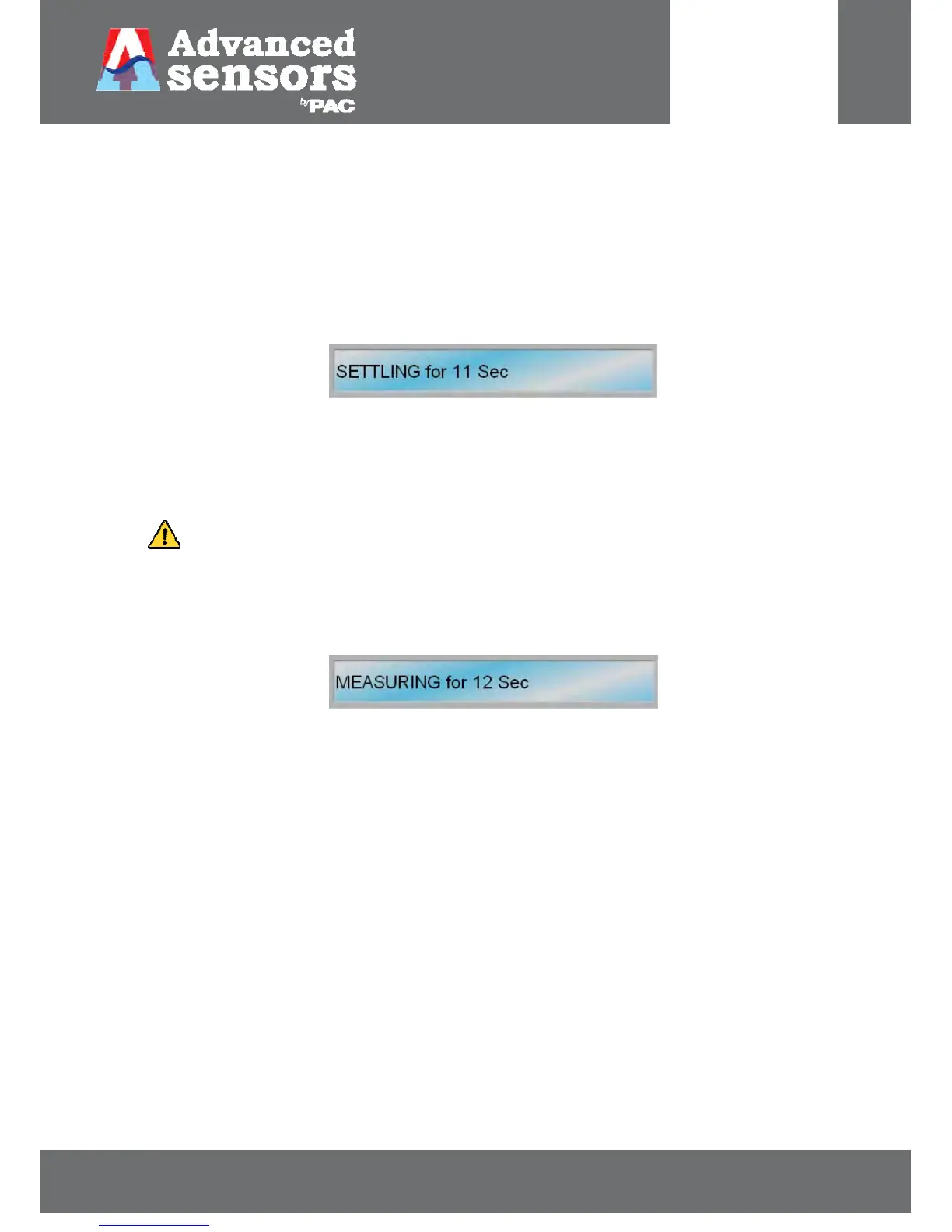

Figure 16: Settling display.
2.3.3.6 – Phase 5 – Measuring (Scheduled Measurement)
The duration of a scheduled measurement phase is user configurable. At scheduled intervals an isolated sample is
homogenised, evenly distributing the oil droplets for a more accurate reading.
INFORMATION: Measurements cannot be taken during the Cleaning Phase.
Status Display during Measuring:
During this phase ‘MEASURING’ will appear in the status display with a countdown timer to indicate the remaining
measurement time, as shown below:
Figure 17: Measuring display.
At the end of this phase the calculated average measured value is displayed in blue text for 3 seconds.
