AIMB-503 User Manual 92

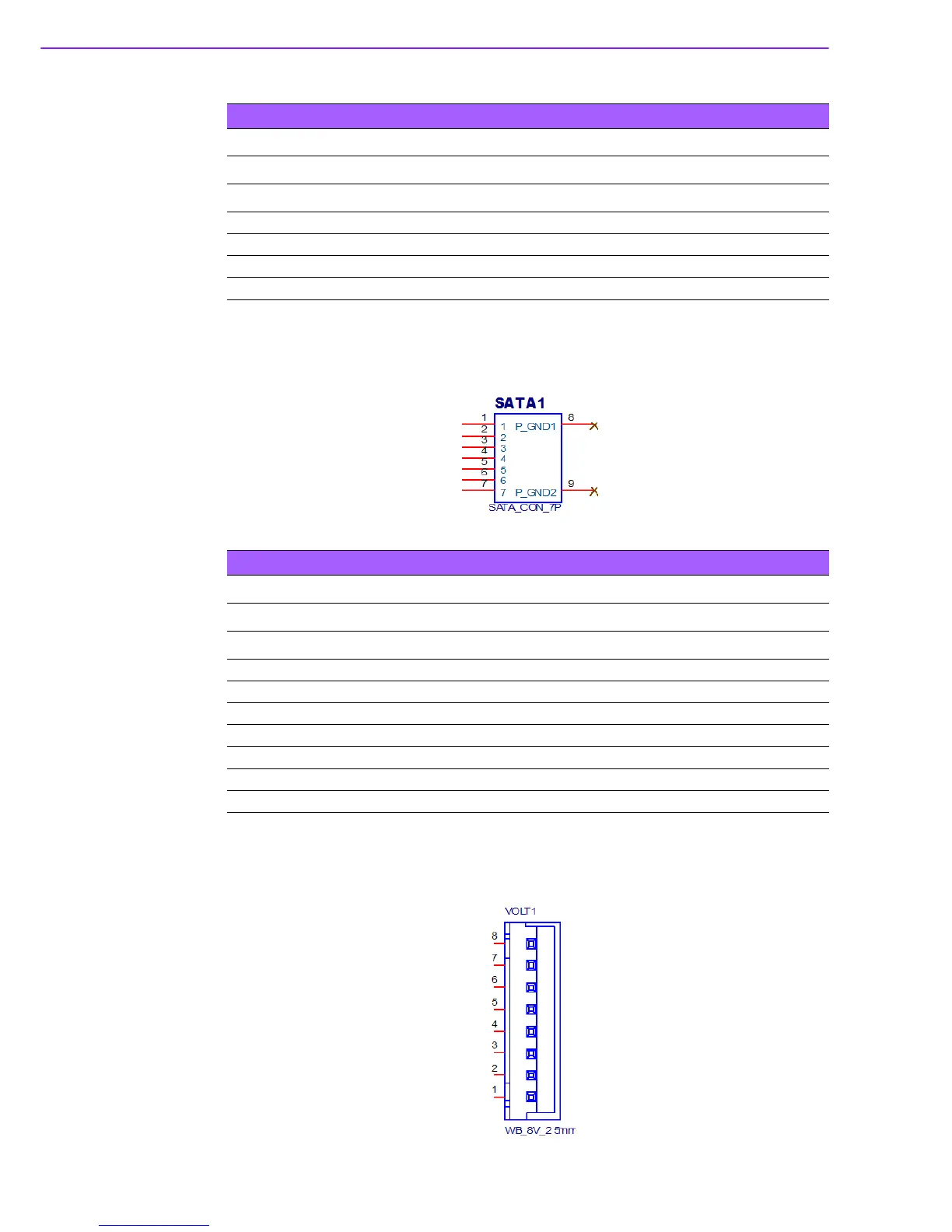

B.16 SATA Connector (SATA1/2/3)
B.17 VOLT Connector (VOLT1)
Table B.16: SM BUS Connector (SMBUS1)
SMBUS1 SM BUS Connector
Part Number 12GA1655001154
Pin Pin Name
1+5V
2 SMB_CLK_MAIN
3SMB_DATA_MAIN
4GND
Table B.17: SATA Connector (SATA1/2/3)
SATA1/2/3 SATA Connector
Part Number 12GP24-006R000
Pin Pin Name
1GND
2SATA_TXP0_C
3SATA_TXN0_C
4GND
5 SATA_RXN0_C
6 SATA_RXP0_C
7GND
