9 AIMB-503 User Manual
Chapter 1 General Information
1.8.4 PSON1: ATX, AT Mode Selector
*Default

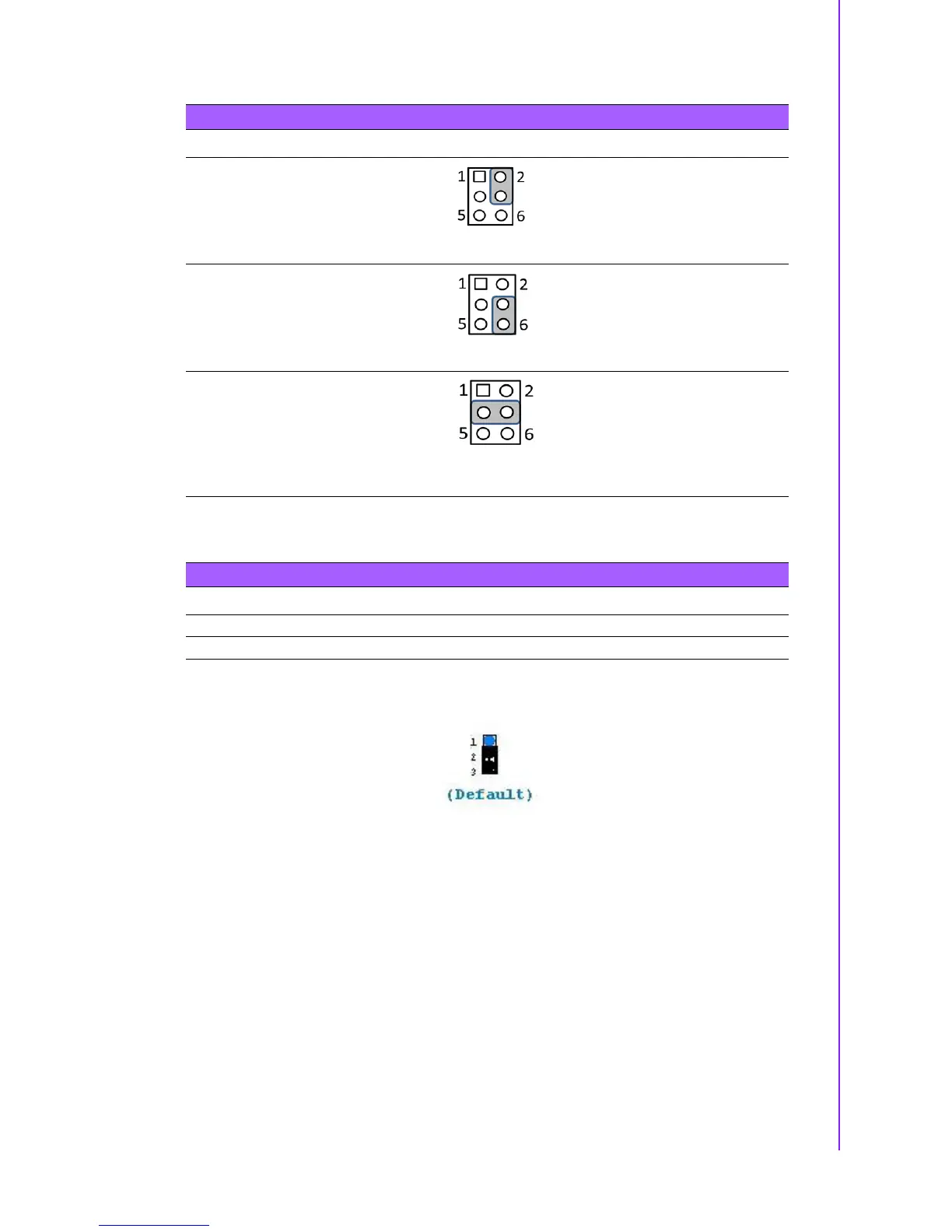

Table 1.5: JLVDS1: LCD Power 3.3 V/5 V/ 12 V Selector
Function Jumper Setting
Jumper position for 5V
Jumper position for 3.3V (Default)
Jumper position for 12V
JLVDS1(2-4)
JLVDS1(4-6)
JLVDS1(3-4)
Table 1.6: PSON1: ATX, AT Mode Selector
Function Jumper Setting
1-2 AT Mode
2-3* ATX Mode
