2.6 PS/2 Keyboard and Mouse Connector (KBMS1)/
External PS/2 Keyboard and Mouse Connector
(KBMS2)
Two 6-pin mini-DIN connectors (KBMS1) on the motherboard provide connection to a
PS/2 keyboard and a PS/2 mouse, respectively. KBMS2 is for supporting the 2nd PS/
2 keyboard and PS/2 mouse by a cable P/N 1700018699.
2.7 CPU Fan Connector (CPU_FAN1)
If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less.

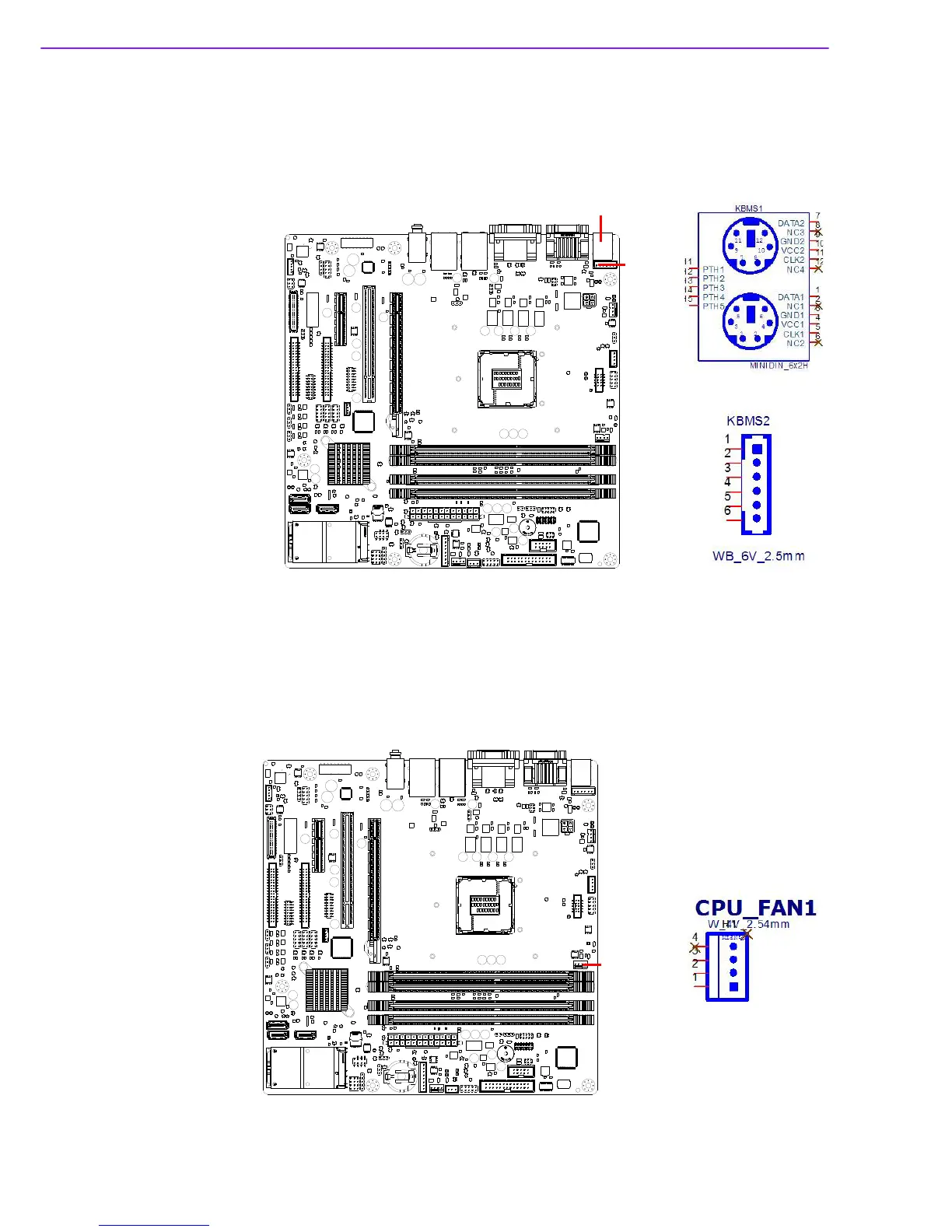

KBMS1
KBMS2
CPU_FAN1
