AIMB-503 User Manual 94

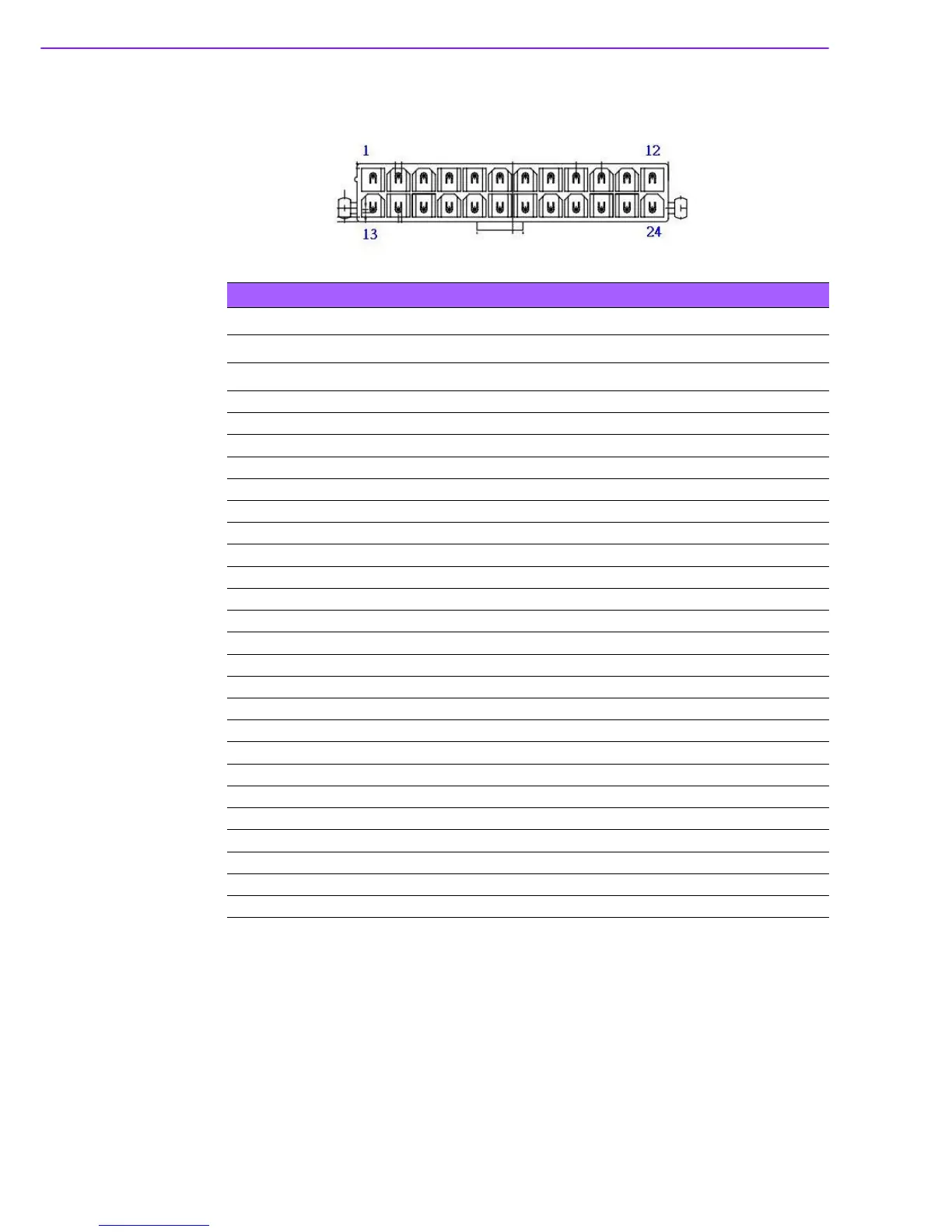

B.19 ATX 24-pin Power Connector (EATXPWR1 )
Table B.20: ATX 24-pin Power Connector (EATXPWR1 )
EATXPWR1 ATX 24-pin Power Connector
Part Number 12G15020024J
Pin Pin Name
1 +3.3V
2 +3.3V
3GND
4+5V
5GND
6+5V
7GND
8PWROK
9 5VSB
10 +12V
11 +12V
12 +3.3V
13 +3.3V
14 -12V
15 GND
16 PSON#
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V
24 GND
