83 AIMB-503 User Manual
Appendix B I/O Pin Assignments

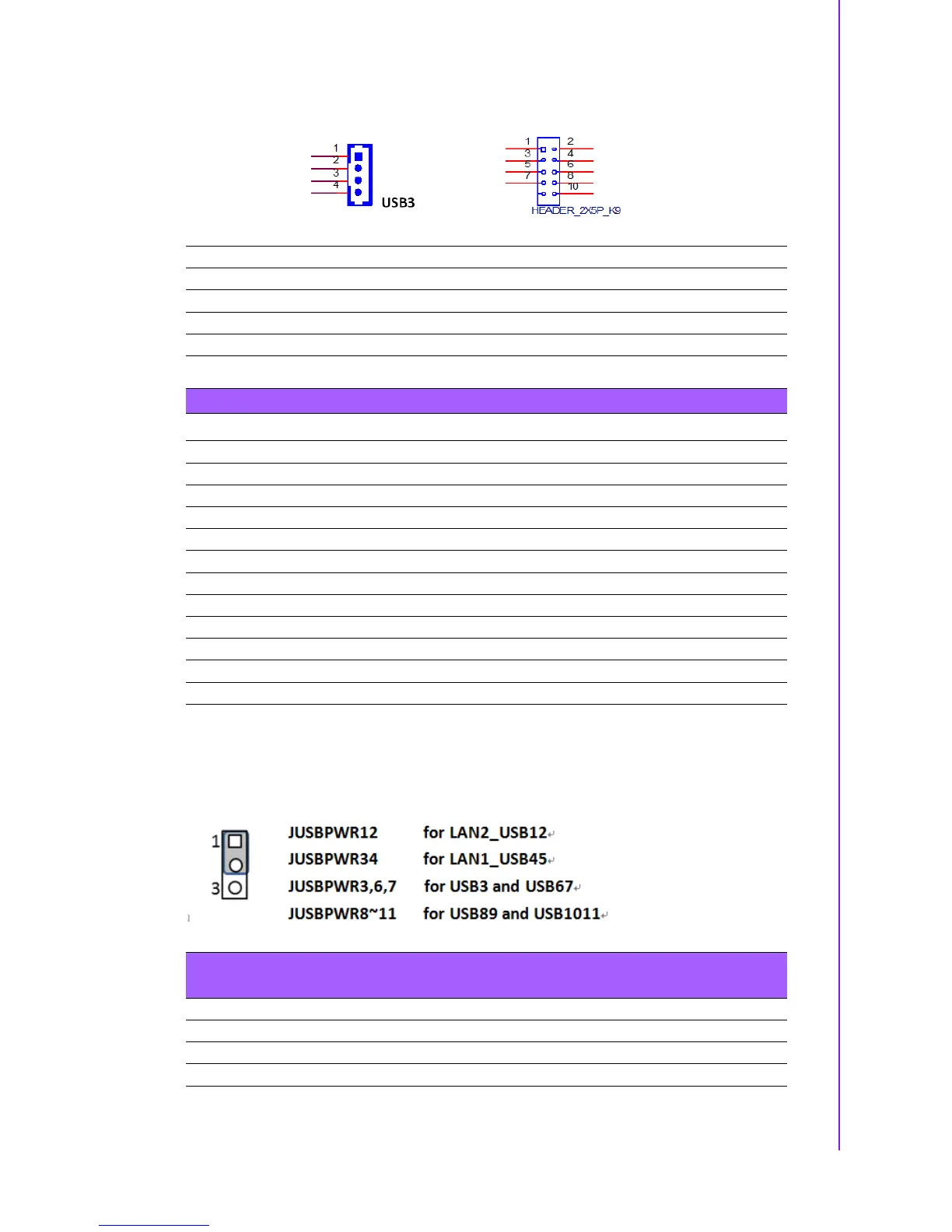

B.2 USB Connector (USB3,67/89/1011)
USB67/89/1011
B.3 USB Power Setting (JUSBPWR12, JUSBPWR34,
JUSBPWR8~11, JUSBPWR3,6,7)
Pin Signal
1+5V
2DO-
3DO+
4GND
Table B.2: USB Connector (USB67/89/1011)
USB67/89/1011 USB connector
Part Number 12GP06-016R000
Pin Pin Name
1 +USBV01
2 +USBV01
3LP0-
4LP1-
5LP0+
6LP1+
7GND
8GND
9NC
10 GND
Table B.3: USB Power Setting (JUSBPWR12, JUSBPWR34,
JUSBPWR8~11, JUSBPWR3,6,7)
Pin Signal
1+5V_DUAL
2 USB12/KBMS 5VPower Input
3+5V
