Advantech AIMB-503 - COM Port Connector (COM3456;COM78910); Table B.7: COM Port Connector (COM2)

AIMB-503 User Manual 86

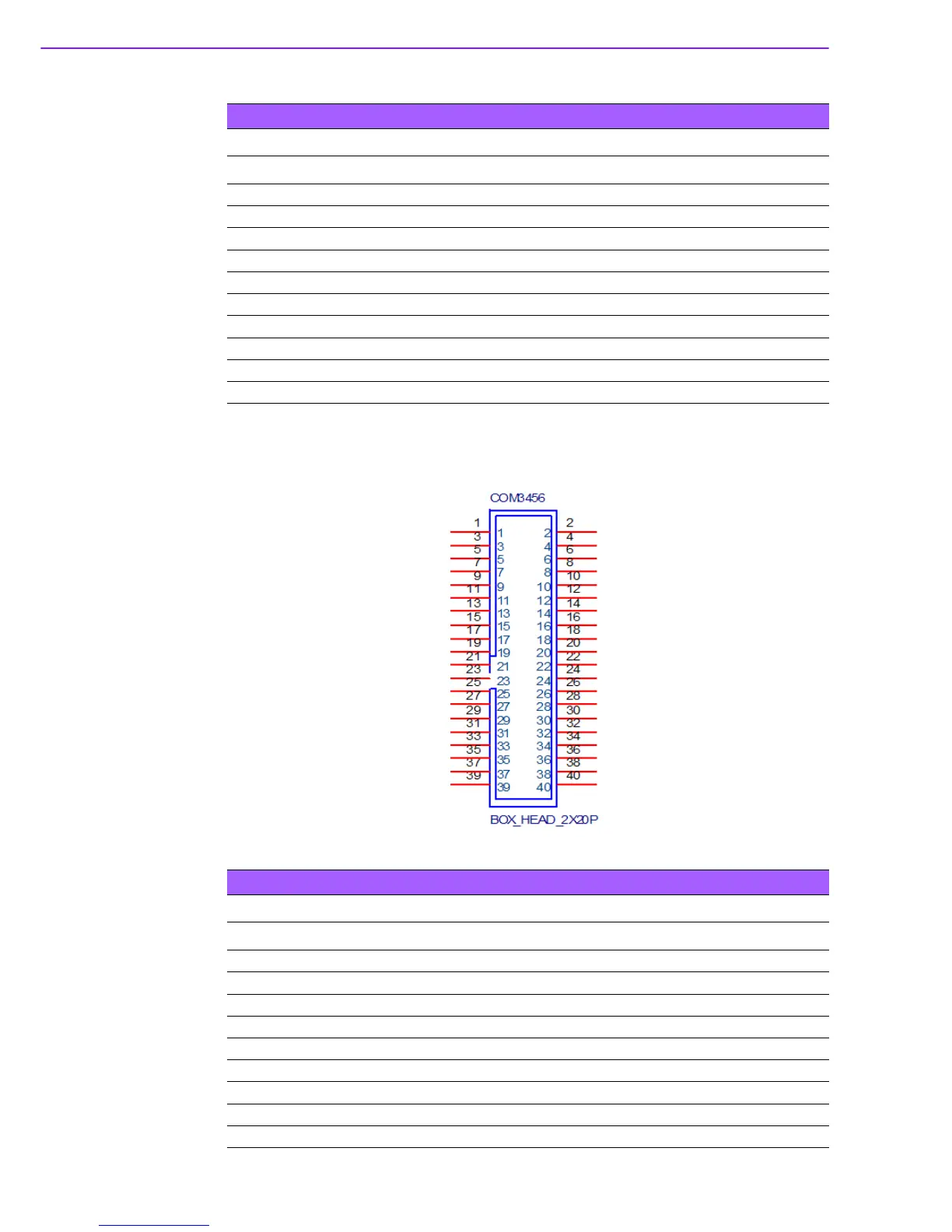

B.7 COM Port Connector (COM3456/COM78910)
Table B.7: COM Port Connector (COM2)
COM2 COM Port Connector
Part Number 12G07120010T
Pin Pin Name
1 DDCD1#
2 DDSR1#
3 RRXD1
4 RRTS1#
5 TTXD1
6 CCTS1#
7 DDTR1#
8 COM1_RRI1
9 GND
Table B.8: COM Port Connector (COM3456/COM78910)
COM3456/COM78910 COM Port Connector
Part Number 12G07120010T
Pin Pin Name
1 COM3_1
2 DDSR3#
3 COM3_2
4 RRTS3#
5 COM3_3
6 CCTS3#
7 COM3_4
8 RRI3#
