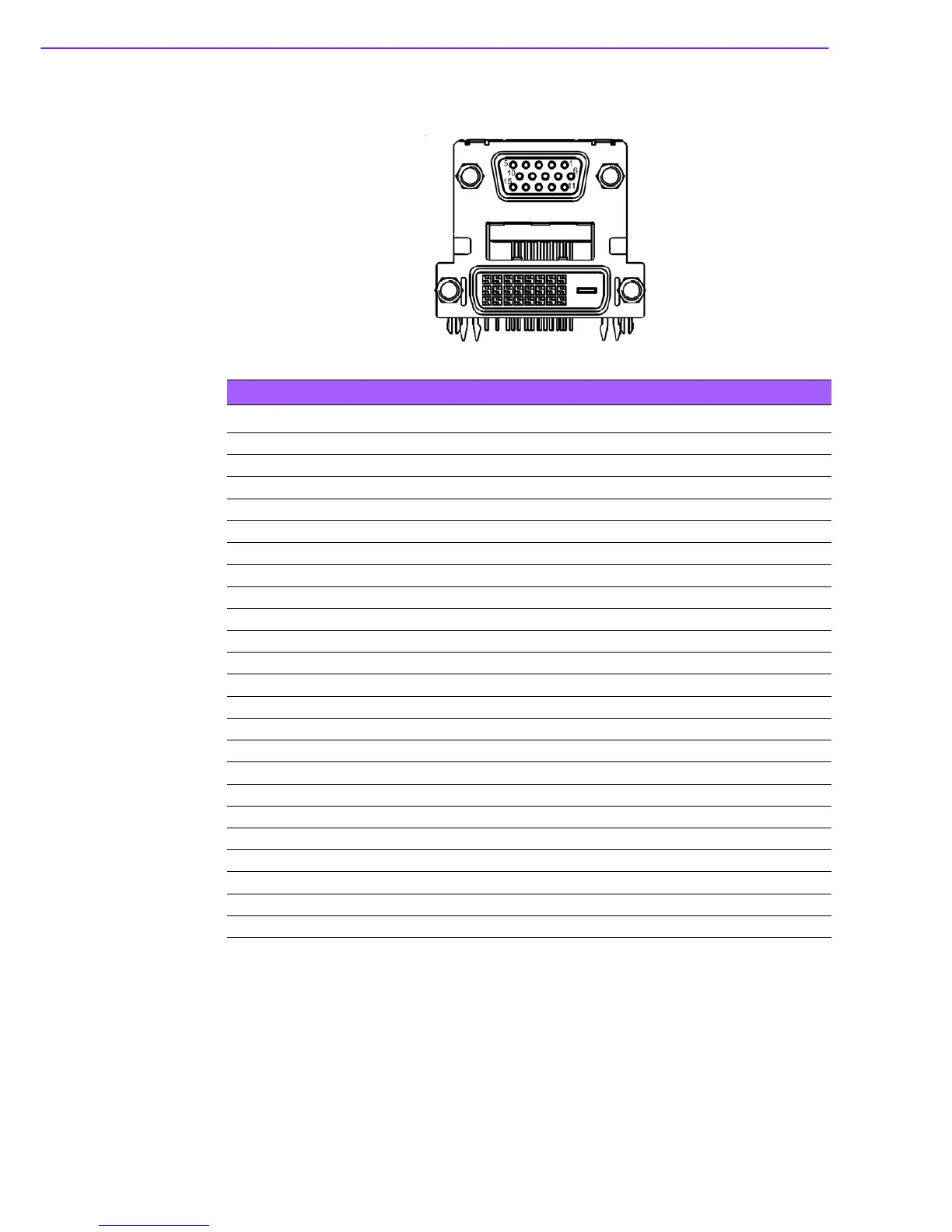

B.4 VGA,DVI-D Connector (VGA1/DVI1)
Table B.4: VGA,DVI-D Connector (VGA1/DVI1)
Pin Signa Pin Signal
D1 RED D2 GREEN
D3 BLUE D4 ID2
D5 GND D6 RED GND
D7 GREEN GND D8 BLUE GND
D9 VCC_VGA D10 SGND
D11 ID0 D12 SDA
D13 HSYNC D14 VSYNC
D15 SCL 1 TMDS DATA2?
2 TMDS DATA2+ 3 TMDS DATA 2/4 Shield
4 GND 5 GND
6 DDC clock 7 DDC data
8 GND 9 TMDS DATA1-
10 TMDS DATA1+ 11 TMDS DATA 1/3 Shield
12 GND 13 GND
14 +5V 15 GND
16 Hot Plug Detect 17 TMDS DATA0?
18 TMDS DATA0+ 19 TMDS DATA 0/5 Shield
20 GND 21 GND
22 TMDSCLK Shield 23 TMDS CLK0+
24 TMDS CLK0-
H1 GND H2 GND
H3 GND H4 GND
H5 GND
