1.8 Jumper Settings
This section provides instructions on how to configure your motherboard by setting
the jumpers. It also includes the motherboards's default settings and your options for
each jumper.
1.8.1 How to Set Jumpers
You can configure your motherboard to match the needs of your application by set-
ting the jumpers. A jumper is a metal bridge that closes an electrical circuit. It consists
of two metal pins and a small metal clip (often protected by a plastic cover) that slides
over the pins to connect them. To “close” (or turn ON) a jumper, you connect the pins
with the clip. To “open” (or turn OFF) a jumper, you remove the clip. Sometimes a
jumper consists of a set of three pins, labeled 1, 2, and 3. In this case you connect
either pins 1 and 2, or 2 and 3. A pair of needle-nose pliers may be useful when set-
ting jumpers.
1.8.2 CMOS Clear (CMOS1)
The AIMB-503 motherboard contains a jumper that can erase CMOS data and reset
the system BIOS information. Normally this jumper should be set with pins 1-2
closed. If you want to reset the CMOS data, set CMOS1 to 2-3 closed for just a few
seconds, and then move the jumper back to 1-2 closed. This procedure will reset the
CMOS to its default setting.
* Default
1.8.3 JLVDS1: LCD Power 3.3 V/5 V/ 12 V Selector
*Default

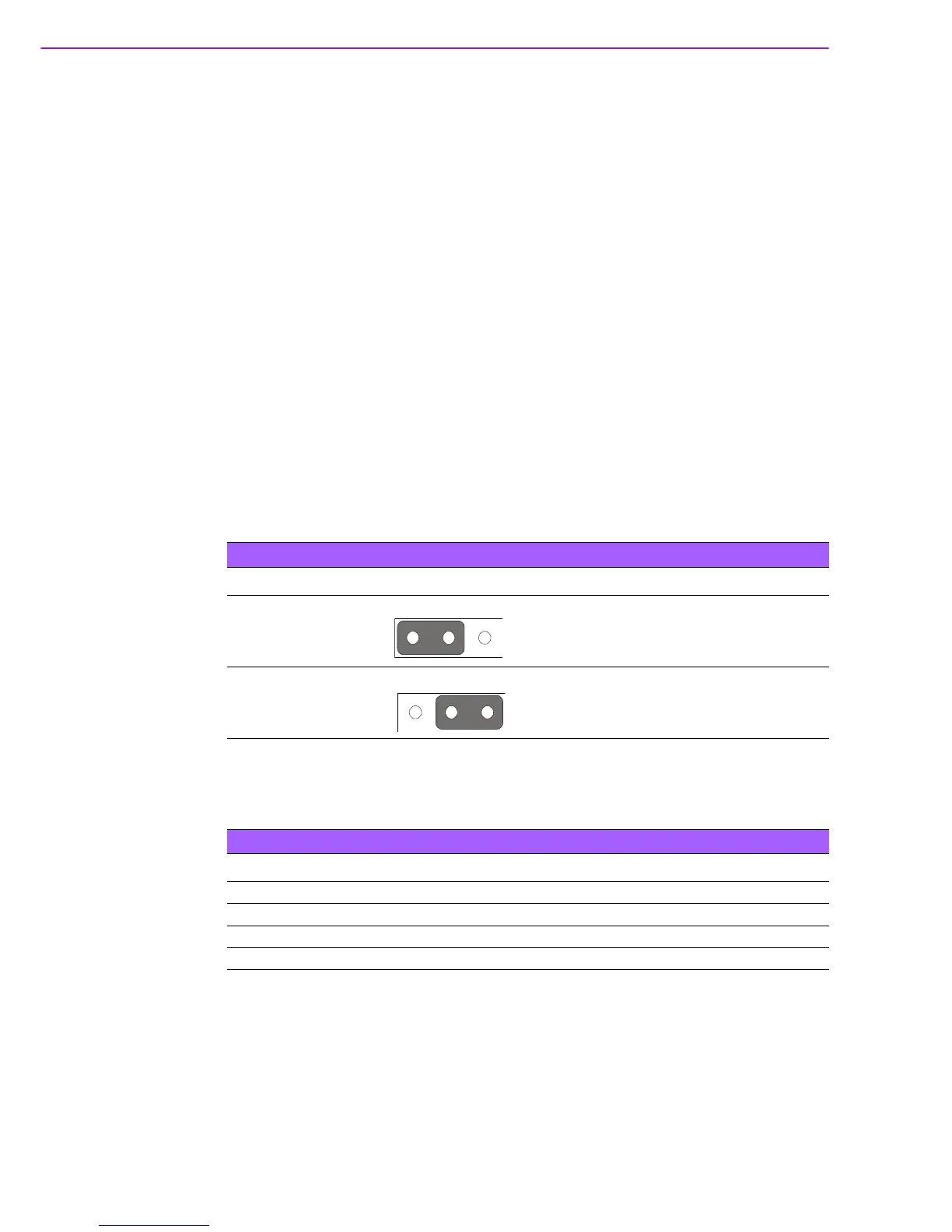

Table 1.3: CMOS1
Function Jumper Setting
*Keep CMOS data
Clear CMOS data
1-2 closed
2-3 closed
Table 1.4: JLVDS1: LCD Power 3.3 V/5 V/ 12 V Selector
Closed Pins Result
JLVDS1
2-4 Jumper for 5V LVDS panel
4-6 Jumper for 3.3V LVDS panel*
3-4 Jumper for 12V LVDS panel
