95 AIMB-503 User Manual
Appendix B I/O Pin Assignments

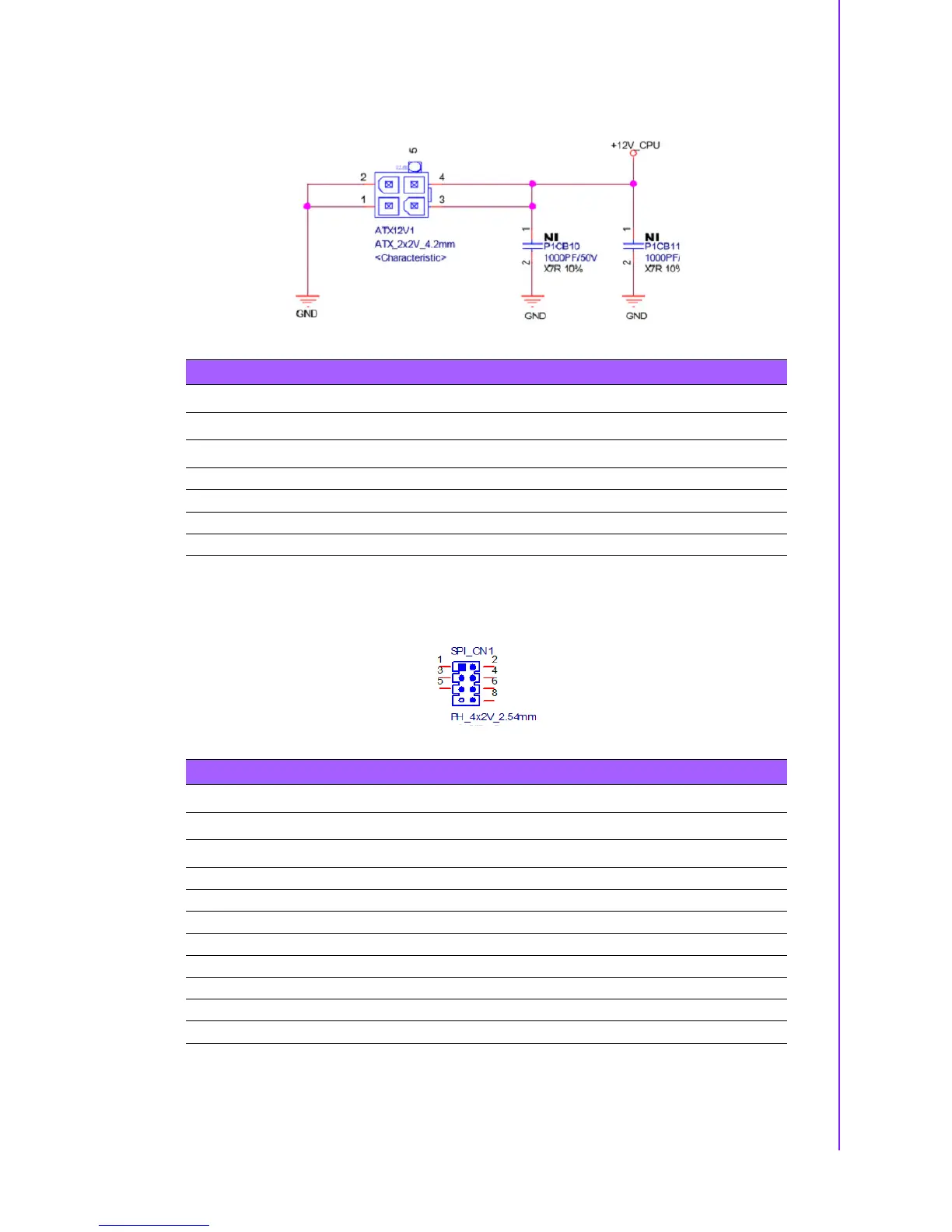

B.20 ATX 4-pin Power Connector (ATX12V1)
B.21 SPI Connector (SPI_CN1)
Table B.21: ATX 4-pin Power Connector (ATX12V1)
ATX12V1 ATX 4-pin Power Connector
Part Number 12G150200047
Pin Pin Name
1GND
2GND
3 +12V_CPU
4 +12V_CPU
Table B.22: SPI Connector (SPI_CN1)
SPI_CN1 SPI Connector
Part Number 12G06100008T
Pin Pin Name
1 SPI_POWER
2GND
3 SPI_CS#
4 SPI_CLK
5 SPI_MISO
6 SPI_MOSI
7NC
8 SPI_HOLD#
